Schlüter®-KERDI-SHOWER-TT - Pre-formed Tileable Shower Tray
Verified by manufacturer 6 months ago

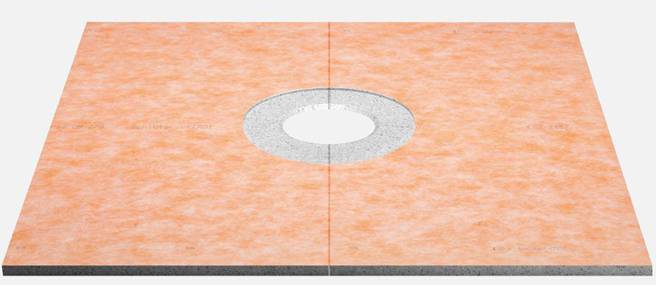

A sloped tray with a pre-adhered Schlüter ® KERDI waterproofing membrane.
Application
For the construction of floor level showers with ceramic tiles. Can be used with any tile format, ranging from large format tile and stone to mosaics. This also applies with specific anticipated traffic loads, for example from wheelchairs.
Description
A sloped tray with a pre-adhered Schlüter ® KERDI waterproofing membrane. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:

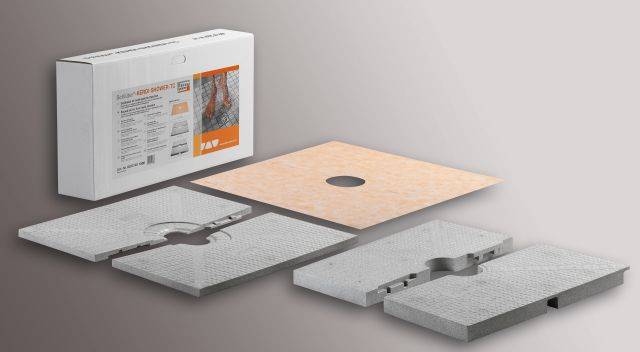

- The sloped boards are available in different sizes and can be combined with waterproofing sets for wall and floor drains.
- The floor elements can easily be adapted for the construction of circular shower designs due to pre-cut grooves. Schlüter-KERDI-SHOWER modules stand out for their particularly easy and reliable installation.
- Very low construction height is possible, from as low as 22 mm.
- The sloped board consists of pressure resistant, expanded polystyrene foam (EPS).
- Schlüter-KERDI-SHOWER does not restrict the selection of tile formats and can be used with any tile format, ranging from large format tile and stone to mosaics. This also applies with specific anticipated traffic loads, for example from wheelchairs.
General information
Color | Orange |
Finish | Other Manufacturer guidanceFleece lined |
Material | Polystyrene Guidance for specification option: Expanded polystyrene foam (EPS). |
Shape | Square |
Length | 910 mm 1010 mm 1220 mm 960 mm |
Width | 910 mm 1010 mm 1220 mm 810 mm |
Height | 22 mm 23 mm 25 mm |
Warranty description | Five year |
Uniclass | |
CAWS | R11/315 Floor drains |
Product range |
Specification data - Shower trays
Form | Square. |
Materials | |
Body | Pressure resistant, expanded polystyrene foam (EPS). |
Finish and colour | Orange. |
Size | 910 x 910 mm.1010 x 1010 mm.1220 x 1220 mm.960 x 810 mm.910 x 1220 mm.960 x 960 mm. |
Waste hole | 175 mm diameter cut-out for drain. |
Product Reference | Schlüter®-KERDI-SHOWER-TT |
Accessories | Schlüter-KERDI-SHOWER-SK. Schlüter-KERDI-SHOWER-SKB. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | Where product is reclaimed from the building the material can be recycled where facilities exist. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 4 |
 IFC | IFC2X3 | 2 |
