Schlüter®-KERDI-DRAIN - Floor Drain
Verified by manufacturer 6 months ago
Floor drainage system.
Application
For installation with Schlüter® -KERDI or other bonded waterproof membranes. Suitable for internal and external applications.
Description

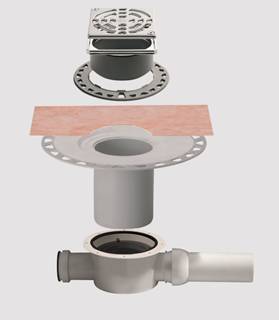

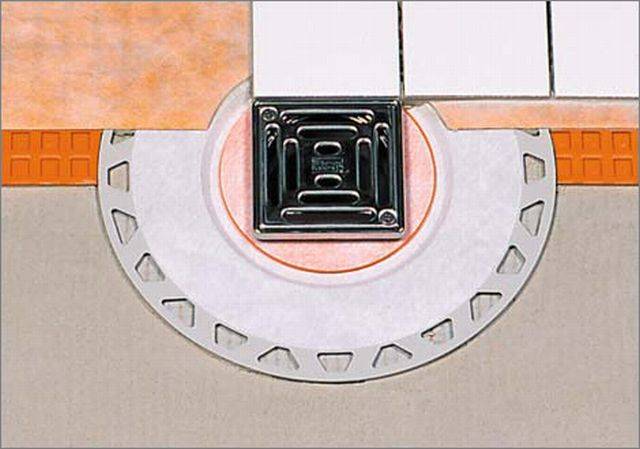

A thin-bed floor drainage system with stainless steel grate and vertical or horizontal outlet. It can be supplied with or without easily maintained odour trap.
Features and benefits:
- Bonded waterproof layers, which are recognised by the ZDB (German Contractors Association) notification as current state of technology.
- Laterally adjustable in all directions.
- A variety of grate designs can be combined with different vertical or horizontal drain body.
General information
Color | Grey |
Finish | Other |
Material | Steel Guidance for specification option: Stainless steel. Polypropylene Guidance for specification option: Casing. |
Shape | Square |
Warranty description | Five year |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/27 Intermediate substrate M40/470 Intermediate substrate M40/5 Tiling to |
Product range |
Specification data - Floor gullies
Body | |
Material | Stainless steel. |
Cover or grating | |
Cover or grating type | Solid covers. |
Material | Polypropylene. |
Finish | Stainless steel.Polypropylene. |
Outlet | Horizontal.Vertical. |
Odour trap | Not required. Required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.12 kg CO₂ eq/kg Self declared Guidance for specification option: Multi-material product with estimated industry average figures. |
Recyclability | Where product is reclaimed from the building the material can be recycled where facilities exist. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 3 |
 Revit | - | 5 |
