Schlüter®-DILEX-EKE - Corner Profile
Verified by manufacturer 5 months ago

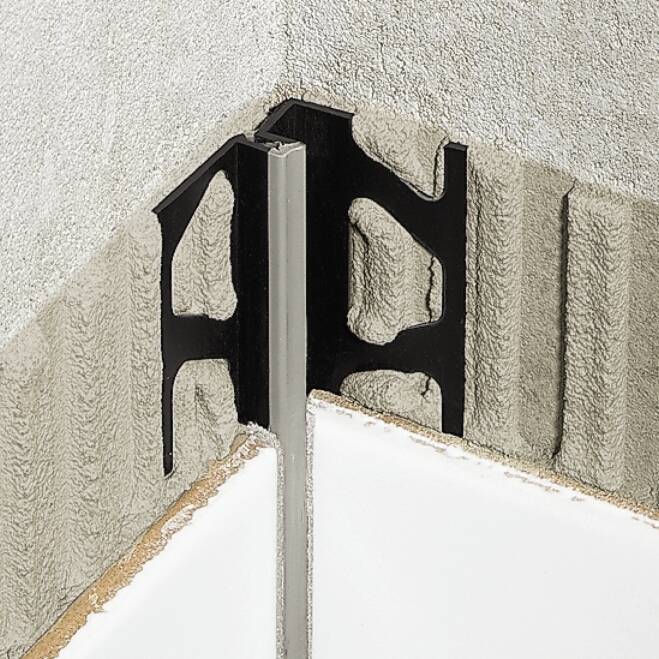

Single-part corner profiles for interior wall corners.
Application
For internal wall corners and wall/ floor transitions. Installation is preferred by Schlüter-Systems trained installers
Description
Single-part corner profiles for interior wall corners with trapezoid perforated anchoring legs made of rigid PVC, one of which contains an insertion channel for cut tile edges, connected to a 5 mm wide flexible movement zone made of soft CPE.
General information
Color | White Guidance for specification option: Brilliant white Grey Guidance for specification option: Grey and Pastel grey Beige Guidance for specification option: Light beige Black Guidance for specification option: Graphite black Cream Guidance for specification option: Soft peach |
Finish | Coated |
Material | PVC Guidance for specification option: PVC - Polyvinyl Chloride CPE - Chlorinated Polyethylene |
Shape | Other |
Length | 2500 mm |
Width | 5 mm |
Height | 8 mm 9 mm 11 mm 13 mm 15 mm |
Warranty description | Five year |
Uniclass | |
CAWS | M13/375 Strip movement joints M40/80 Strip movement joints M10/460 Strip movement joints M41/445 Strip movement joints M12/440 Strip movement joints M40/825 Strip movement joints |
Product range |
Specification data - Strip movement joints
Joint width | 5 mm. |
Edging | |
Material | Recycled PVC, Soft PVC. |
Finish | Soft PVC, CPE. |
Colour | Pastel grey.Soft peach.Brilliant white.Grey.Black.Light beige. |
Insert | |
Material | Soft PVC, CPE. |
Colour | Brilliant white (no 9003).Grey (RAL 7030).Black (RAL 9011).Light beige (RAL 1019).Pastel grey (no RAL).Soft peach (no RAL). |
Product Reference | Schlüter®-DILEX-EKE |
Height: | 8 mm. 9 mm. 11 mm. 13 mm. 15 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | Where product is reclaimed from the building the material can be recycled where facilities exist. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAnchoring legs manufactured from recycled PVC. |
