Application

For crack free and functionally safe floating screeds and heated screeds suitable with most floor finishes.

Description

Reliable covering assembly system installed directly on load bearing, weight distributing substrates such as concrete or existing timber floor structures. The suitability of the substrate for heating purposes (movement joints, edge strips etc.) must be verified. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Schlüter-BEKOTEC-EN 18 FTS with 5 mm impact sound insulation is made from a high-impact polystyrene deep drawn foil. The impact sound fleece is made of a special textile blend.
  • Sound insulation provides an improvement of impact sound insulation by 25 dB*.
  • Ceramic or natural stone tiles are installed directly over this layer, using the thin-bed method.
  • Movement joints in the covering layer are created using Schlüter-DILEX according to industry guidelines.
  • The design of movement joints can match the joint pattern of the tiles or stone covering.
  • Schlüter-BEKOTEC-EN 18 FTS, ENFG and BRS are non-rotting and require no special maintenance or care.
  • The Schlüter-BEKOTEC system is designed to reduce shear tension in the screed within the grid of the studded panel. No construction reinforcement is required.
  • The studs have a cutback design to securely keep heating pipes in place without the need for clamps.
  • The studded panels are connected by overlapping a row of studs and clicking the panels together.
  • The cover assembly of the Schlüter-BEKOTEC system is free of inherent stresses. Consequently, curling is virtually impossible to occur in the area. This is especially applicable in the presence of temperature fluctuations, e.g. with heated screeds.
  • The floor heating system is easily adjustable and ideally suited for use with low temperatures.
  • Schlüter-Systems offers a five year warranty.

General information

Color

Orange

Finish

Unfinished

Material

Polystyrene

Guidance for specification option:

With textile fleece.

Shape

Rectangle

Other

Length

1100 mm

Width

700 mm

Height

12 mm

Warranty description

Five year

Uniclass

Ss_30_42_15_10 Bonded or partially bonded cementitious levelling screed systemsPrimary

CAWS

M10/110 Bonded cement:sand levelling screeds

Product range

Modular Screed Systems

Specification data - Bonded or partially bonded cementitious levelling screed systems

Screed

Studded panel.

Product Reference

Schlüter®-BEKOTEC-EN 18 FTS

Grid spacing

50 mm.

100 mm.

150 mm.

Integral accessories

Schlüter-BEKOTEC-ENFGTS.

Guidance for specification option:

Levelling panel installed in door transition areas and in the area of heating circuit distributors to simplify connections and minimise cutting waste. It consists of smooth polystyrene foil material with 5 mm impact sound insulation and is adhered below the studded panels, using the supplied double-sided adhesive tape. It may be necessary to remove the impact sound insulation of the studded panel in the transition area.

  • Dimensions: 1400 x 800 mm.

Schlüter-BEKOTEC-ZRKL.

Guidance for specification option:

Pipe clamping strip for securing the pipes on the levelling panel. The clamping strips are self-adhesive to allow for permanent attachment on the levelling panel.

  • Length: 800 mm.

Schlüter-BEKOTEC-ZDK.

Guidance for specification option:

Double-sided adhesive tape for adhering the studded panel to the levelling panel or to the substrate if necessary.

  • Roll: 66 m, height: 30 mm, thickness: 1 mm.

Schlüter-BEKOTEC-BRS.

Guidance for specification option:

An edge strip of closed cell polyethylene foam with an integrated foil leg that features an adhesive strip on both sides for attachment. The adhesion on the substrate and the pre-tensioning of the integrated foil leg push the edge strip toward the wall. When the studded Schlüter-BEKOTEC panel is laid on top of the adhesive strip, the panel is permanently adhered to the substrate and flowing screed can no longer get beneath the panel.

  • Roll: 25 m, height: 80 mm, thickness: 8 mm.

Schlüter-DILEX-DFP.

Guidance for specification option:

Expansion joint profile for installation in door transition areas to prevent sound bridges Thanks to the bilateral coating and the self-adhesive strip, straight line installation is very easy.

  • Length: 1.00 m, height: 60 / 80 / 100 mm, thickness 10 mm.
  • Length: 2.50 m, height: 100 mm, thickness: 10 mm.

Sustainability data

Country of material origin

Germany

Material

Polystyrene

Guidance for specification option:

With textile fleece.

Manufacturing plant location

Recyclability

Material can be recycled where it can be reclaimed and where local recycling facilities exist

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Expected Life

Lifetime

Similar products from Schlüter-Systems Ltd

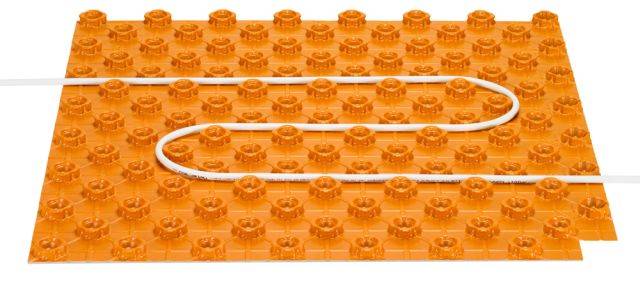

Schlüter®-BEKOTEC-EN 12 FK
