Application

For crack free and functionally safe exterior screeds with ceramic or natural stone coverings.

Description

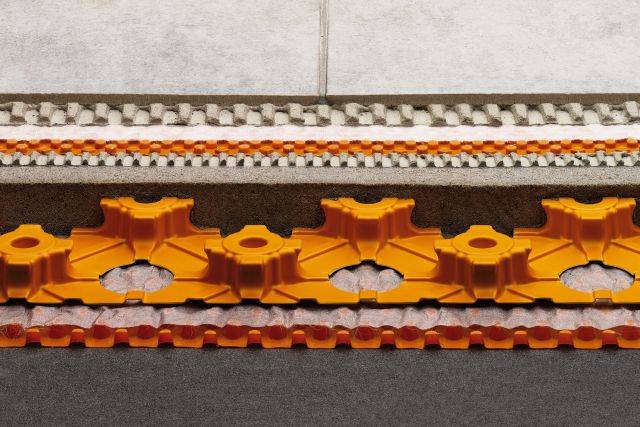

A reliable covering assembly system based on the specially structured studded foil panel Schlüter®-BEKOTEC-EN 23 FD with evenly spaced openings and interconnected drainage channels. Depending on the construction, the product is either installed over a sloped waterproofing layer or over the area drainage membrane Schlüter®-TROBA-PLUS. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Schlüter-BEKOTEC-EN 23 FD is a high impact polystyrene panel and is suitable for use with conventional cement screeds.
  • Does not rot and require no special maintenance or care.
  • Reduce shearing tensions in the screed within the grid of the studded panel. No construction reinforcement is required.
  • Water seeping into the covering assembly drains through the openings of the studded panel to the sloped waterproofing layer or drainage layer, flowing through the assembly’s hollow chambers without creating any pressure.
  • Free of inherent stresses so no buckling can occur in the area.
  • Evenly reduces tensions in the screed, which allows for constructing the screed without movement joints.
  • The design of movement joints can match the joint pattern of the tile or stone covering, since it is not necessary to continue construction joints from the screed into the surface covering.
  • Five year warranty for the life of the cover assembly, provided all installation instructions were observed and the covering is used as intended.


Mandatory System Accessories:

  • Schlüter-TROBA-PLUS passive capillary membrane for the effective drainage of seepage and ventilation, below Schlüter-BEKOTEC-DRAIN.
  • Schlüter-DITRA-DRAIN polyethylene drainage mat installed using the thin-bed method, for bonded drainage, ventilation and uncoupling, above Schlüter-BEKOTEC-DRAIN.

General information

Color

Orange

Finish

Unfinished

Material

Polystyrene

Shape

Other

Length

1200 mm

Width

900 mm

Height

23 mm

Warranty description

Lifetime

Guidance for specification option:

For the life of the cover assembly, provided all installation instructions were observed and the covering is used as intended.

Uniclass

Ss_30_42_15_30 Floating cementitious levelling screed systemsPrimary

CAWS

M10/115 Cement:sand levelling screeds

M10/4 Cement:sand levelling screeds

Product range

Modular Screed Systems

Specification data - Floating cementitious levelling screed systems

Separation layer

-

Manufacturer guidance

Sloped waterproofing layer or drainage layer.

Screed

-

Manufacturer guidance

Exterior screeds.

Surfacing layer

Studded panel.

Product Reference

Schlüter®-BEKOTEC-DRAIN

Integral accessories

Schlüter-TROBA-PLUS.

Guidance for specification option:

Passive capillary membrane for the effective drainage of seepage and ventilation, below Schlüter-BEKOTEC-DRAIN.

Schlüter-DITRA-DRAIN.

Guidance for specification option:

Polyethylene drainage mat installed using the thin-bed method, for bonded drainage, ventilation and uncoupling, above Schlüter-BEKOTEC-DRAIN.

Schlüter-BEKOTEC-EN 23 FD.

Guidance for specification option:

Studded screed panel.

Schlüter-BEKOTEC-BRS.

Guidance for specification option:

Edge strip.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polystyrene

Manufacturing plant location

Recyclability

100% of material can be recycled where it can be reclaimed

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Guidance for specification option:

3% pre-consumer and 67% post-consumer content

Expected Life

Lifetime
