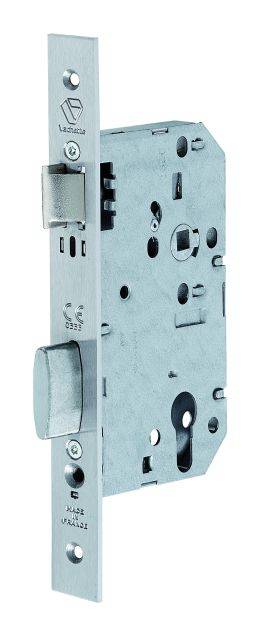

Sash Lock D455
Description

Features:

  • Available with 60 mm backset.
  • With latchbolt and deadbolt.
  • Handing of the latchbolt is reversible.
  • Available in both round and square faceplate.
  • Key can be removed in locked or unlocked position.
  • Supplied as standard with striking plate.
  • Double-throw deadbolt thrown up to 20 mm by two 360° turns of key or thumbturn. Latchbolt reversible without opening lockcase.
  • Usable with DIN Severe Duty rated handles.
  • 10 year guarantee.

Function:

  • The deadbolt is operated with key or thumbturn.
  • The latchbolt is retracted with handle, key or thumbturn

Suitable Euro profile cylinders:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644200

General information

Features

Available with 60 mm backset

With latchbolt and deadbolt

Handing of the latchbolt is reversible

Available in both round and square faceplate

Key can be removed in locked or unlocked position

Show more

Finish

Satin stainless steel

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Sash Lock D455, Double Cylinder

Sash Lock D455, Single Cylinder

Sash Lock D455, Single Cylinder And Thumbturn

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Deadbolt

Stainless steel

Special order, which meets security grade 4 of BS EN 12209.

Manufacturer's standard

Faceplate

Square

Round

Standard product features

Finish:

Satin stainless steel.
