Sarnafil® Box Scuppers PVC
Application

For use with Sarnafil® G 410 types, Sarnafil® G 476 types and Sarnafil® S 327 types.

  • Sarnafil® Box Scupper: Used as a roof drain through the parapet.
  • Sarnafil® Box Scupper (bent and straight plate): Used as an emergency overflow for flat roofs through the parapet.

Description

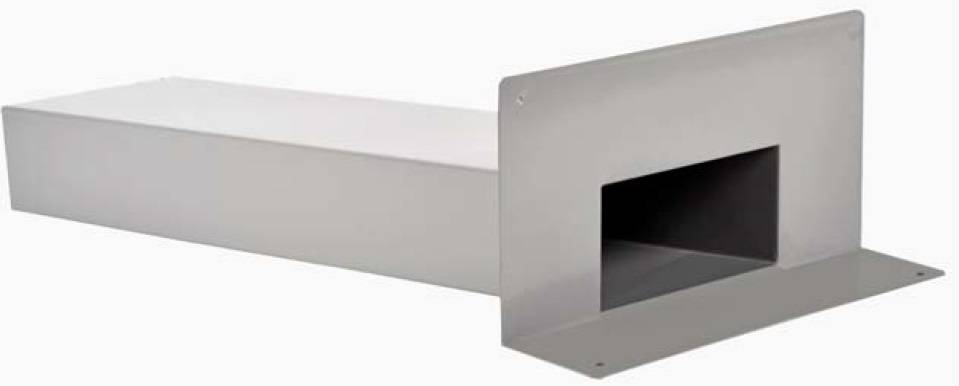

Rigid polyvinyl chloride (PVC) roof parapet scupper for use with Sarnafil® roofing systems.

Features and benefits:

  • High resistance to weathering, including UV irradiation.
  • Good stress-cracking resistance.
  • Membrane can be welded directly to the base plate.
  • Ease of application.
  • Good weldability.
  • Recyclable.
  • Manufactured in accordance with BS EN ISO 9001 and BS EN ISO 14001.

Applications:

For use with Sarnafil® G 410 types, Sarnafil® G 476 types and Sarnafil® S 327 types.

  • Sarnafil® Box Scupper: Used as a roof drain through the parapet.
  • Sarnafil® Box Scupper (bent and straight plate): Used as an emergency overflow for flat roofs through the parapet.

General information

Color

Grey (nearest RAL 7035)

Finish

Smooth

Material

Polyvinyl chloride (PVC)

Shape

Rectangular

Size

80 x 40 x 450 mm

WarrantyDescription

Dependant on roof system build up

Specification data

Product Reference

Sarnafil® Box Scupper

200 x 100 mm spigot (w x h), 400 x 200 x 100 mm base plate, 1.73 L/s flow rate.

Sarnafil® Box Scupper (bent plate)

80 x 40 mm spigot (w x h), 250 x 150 x 100 mm base plate, 0.69 L/s flow rate.

Sarnafil® Box Scupper (straight plate)

80 x 40 mm spigot (w x h), 250 x 250 mm base plate.

Standard product features

Thickness:

4 mm.

Material:

Polyvinyl chloride (PVC).

Colour:

Grey (nearest RAL 7035).

Surface:

Smooth.

Spigot:

  • Length: 450 mm.
  • Inclination angle: 5°.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
