Sandhurst C5 (SR3) - Doorset

Verified by manufacturer 5 months ago

Sandhurst SR3 - Single Leaf

Stafford Bridge Doors Ltd Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

The Sandhurst SR3 doorset is developed to resist deliberate attempts at forced entry of well protected premises.

Jump to:
BOS
 +44 (0)1234 826 316 Website

Application

Protected premises.

Description

The doorset has been developed to resist deliberate attempts at forced entry of well protected premises, with little regard to noise. LPCB test tools include: 1.5 kg axe, cordless drill, brick bolsters, cold chisels, crowbar and scissor jack. External doorsets are CE and UKCA marked to EN 14351-1. LPS 1175 Issue 8 and FSC certified.

General information

Finish

Primed

Painted

Stained

Other

Veneered

Show more

Material

Timber

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

To EN 14351-1, BS EN 1634-1.

Configuration

Single-leaf, single-action.

Manufacturer guidance

Inward or outward opening. Insert requirements.

Doorset size

Guidance for specification option:

Consult manufacturer for more details and insert requirements.


Maximum allowable sizes with single-point locking:

  • Single doorset, non-fire rated, inward or outward opening: Minimum Structural opening is 600 mm (W) x 1000 mm (H). Maximum Structural opening is 1400 mm (W) x 3200 mm (H).
  • Single doorset, FD30 or FD60 fire rated, inward opening: Minimum Structural opening is 600 mm(W) x 1000 mm(H). Maximum Structural opening is 1117 mm (W) x 2090 mm (H). Maximum Structural opening is 887 mm (W) x 2548 mm (H).


Maximum allowable sizes with multi-point locking:

  • Single doorset, non-fire rated, inward or outward opening: Minimum Structural opening is 600 mm (W) x 1000 mm (H). Maximum Structural opening is 1400 mm (W) x 3200 mm (H).
  • Single doorset, FD30 or FD60 fire rated, inward opening: Minimum Structural opening is 600 mm (W) x 1000 mm (H). Maximum Structural opening is 1139 mm (W) x 2134 mm (H). Maximum Structural opening is 904 mm (W) x 2603 mm (H).


Performance

-

Fire resistance

-

Integrity

Not fire rated.

To BS476-22, FD30.

Guidance for specification option:

Fire rating affects size constraints. Consult manufacturer and see size guidance.

To BS476-22, FD60.

Guidance for specification option:

Fire rating affects size constraints. Consult manufacturer and see size guidance.

Acoustic performance

To BS EN ISO 10140-2: 2010 sound reduction in Rw 30dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 35dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 40dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 45dB.

Manufacturer guidance

  • Acoustic Rating of 35 dB will have an additional leaf tray planted on the Push side of the door leaf.
  • Acoustic Rating of 40 dB will have an additional leaf tray planted on the Push side of the door leaf and additional acoustic frame to the push side of the frame.
  • Acoustic Rating of 45 dB will have an additional leaf tray planted on the Push side of the door leaf and additional acoustic frame to the push side of the frame.

Intruder resistance

-

Minimum requirement

To LPS 1175, SR3. Secured by Design certification.

Application

Both sides (hinge side – outward opening / non-hinge side – inward opening).

Conformity

All security testing was carried out by BRE to LPS 1175.

Bullet resistance

-

Manufacturer guidance

BS EN 1522: FB1 to FB7 available for certain configurations. Please contact Stafford Bridge for further details.

Explosion resistance

-

Blast duration

-

Manufacturer guidance

'People In Protected Spaces' C15/C25 available for certain configurations. Please contact Stafford Bridge for further details.

Frame

-

Material

Solid hardwood.

Species

-

Manufacturer guidance

  • If painted, Utile hardwood used.
  • If veneered finished is specified, match species to the veneer type.
  • If FD30 ash is used but cannot if FD60 fire rating.
  • If any fire rating, Beach Hardwood cannot be used.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Threshold

No threshold.

6 mm Stainless Steel 304/ 316 soleplate (threshold).

Exitex CDT100 low level aluminium threshold on top of the 6 mm Stainless steel Soleplate (Threshold).

Exitex CDT100 low level aluminium threshold.

Perimeter seals or inserts

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Full paint finish.

Primed ready for site finish.

Lacquered.

Factory stain and lacquered.

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Installation fasteners

M10 x 100 Coach screws.

Guidance for specification option:

Fixing into timber.


M10 x 100 Hex head set screws.

Guidance for specification option:

Fixing into steel.


Hilti HRD-UGS 14x140/70 U Plastic frame anchor.

Guidance for specification option:

Fixing into concrete, brick, or block work.

Frame accessories

Door contacts.

Concealed cable loop.

Door leaf

-

Thickness

Minimum 54 mm.

Core

Solid hardwood.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.

Facings

Formica laminated – Internal – MDF sheets under laminate.

Formica laminated – External – Ply sheets under laminate.

Acrovyn laminated – Internal – MDF sheets under laminate.

Acrovyn laminated – External – MDF sheets under laminate.

Hardwood veneered – Internal – MDF sheets under Veneer.

Hardwood veneered – External – Ply sheets under Veneer.

If painted and internal – MDF sheets to both faces of door leaf.

If painted and external – Ply sheets to both faces of door leaf.

Cut

Crown cut veneer.

Quarter cut veneer.

Lippings

Painted.

Veneered.

Laminated.

Manufacturer guidance

Non-Fire rated:

  • Painted: 8 mm Hardwood Lipping’s
  • Veneered: 8 mm Exposed Hardwood lipping all round, species to be specified to match veneer and/or stain.
  • Laminated: 8 mm Hardwood Lipping, Species to be determined by customer.


Fire rated:

  • Painted: 10 mm Hardwood Lipping’s
  • Veneered: 10 mm Exposed Hardwood lipping all round, species to be specified to match veneer and/or stain.
  • Laminated:10 mm Hardwood Lipping, Species to be determined by customer.

Perimeter seals

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Factory stain.

Full paint finish.

Laminated.

Primed ready for site finish.

Sealed.

Veneered.

Manufacturer guidance

Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Glazing

-

Type

Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B.

Guidance for specification option:

  • Painted steel beading as standard.
  • Optional to have hardwood cloaking to match door leaf finish (if veneered), this reduces clear vision to 150 x 350 mm.

None.

Manufacturer guidance

Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.

Manifestation

Non-fire rated vision panels are unmarked.
Fire rated vision panels are only marked for Fire resistance.

Beading

-

Type

External.

Internal.

Hardwood cloaked.

Steel beading (manufacturer's standard).

Material

Steel.

Hardwood.

Guidance for specification option:

If cloaked, then will be hardwood over the steel beading to match the door leaf finish.


Fixing

Manufacturers standard (steel beading) machine screws.

Guidance for specification option:

If cloaked, then this will be fixed to the vision panel using machine screws in a brass screw cup.

Door accessories

Door contacts

Guidance for specification option:

Surface or concealed.

Fabric alarm to the inside of the door leaf.

Hardware

Access control.

Cable conduits.

Cable loops.

Closers.

Cylinder guards.

Door Actuators

Door selectors

Door stays.

Drop seals.

Guidance for specification option:

Enhance functionality with optional drop seals for improved sound insulation and environmental control.

Frame head drips.

Handles.

Hinges.

Intumescent strips (if fire rated).

Kick plates.

Guidance for specification option:

Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset.

Locking system.

Guidance for specification option:

Choose from a selection of single-point or multi-point locking systems provided by Surelock McGill Ltd. Refer to full certification for complete approved locking systems listed on Redbook live.

Meeting stile T-bars.

Spy holes.

Vision panels.

Weather boards.

Architraves

-

Material

MDF.

Guidance for specification option:

If frame is painted and internal, MDF.

Hardwood.

Guidance for specification option:

If frame is painted and external, Hardwood.


To match frame.

Guidance for specification option:

If frame is exposed hardwood with lacquer, and internal or external, species of architrave to match frame

Wood appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Finish

Primed ready for site finish.

Sealed.

Factory stain.

Full paint finish.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Accessories

Over panel, fixed.

Side panel, fixed.

Over panel, removable.

Side panel, removable.

Manufacturer guidance

Contact Stafford bridge for further information if required.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Timber

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

BRE Certificate

BRE Certificate

Sandhurst Doorset LPS 1175 Certificate

Literature

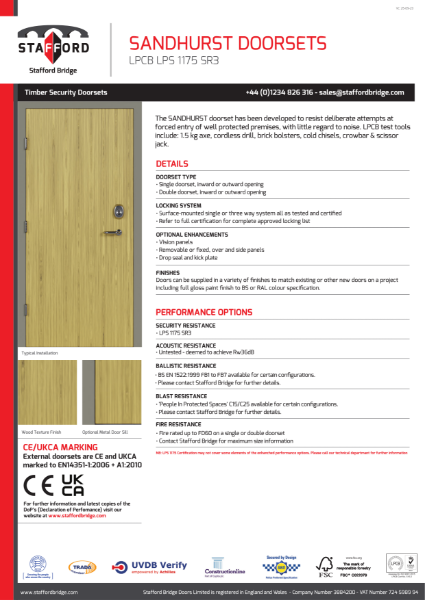

Sandhurst SR3

Sandhurst SR3
