Sandhurst 2016 (C5 SR3) - Hardwood Doorset

Name: Sandhurst 2016 (C5 SR3) - Hardwood Doorset
Brand: Stafford Bridge Doors Ltd
SKU: rNbkamiBLJXj7TKi1utdJH

Verified by manufacturer 6 months ago

Sandhurst 2016 - Single Leaf

Stafford Bridge Doors Ltd

Third party certifications:

BRE Certificate
Certificate type

The Sandhurst 2016 doorset is developed to resist experienced attempts at forced entry of protected premises.

Jump to:

BOS

+44 (0)1234 826 316 Website

Application

Protected premises.

Description

The doorset has been developed to resist deliberate attempts at forced entry of well protected premises, with little regard to noise. Approved for Government use, contact NPSA for further details. External doorsets are CE and UKCA marked to EN 14351-1. LPS 1175 Issue 8 and FSC certification.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Red Purple Turquoise White Yellow Other Show more
Finish	Primed Painted Stained Other Veneered Wood grain Woodgrain Lacquered Laminated Grained Satin Gloss Matt Semi-gloss Show more
Material	Timber Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/410 Wood doorsets L20/55 Doorsets

Specification data - Wood doorsets

Standard	To EN 14351-1, BS EN 1634-1, BS EN 1522/1523 (FB2).
Configuration	Single-leaf, single-action. Manufacturer guidance Inward or outward opening. Insert requirements.
Doorset size	Guidance for specification option: Consult manufacturer and insert requirements for configuration. Single doorset, Outward (w x h): Structural opening is 1000 x 2100 mm. For Maximum allowable sizes outside of approved security sizes, please contact Stafford bridge for further details depending on fire rating.
Performance	-
Fire resistance	-
Integrity	To BS EN 1634-1, FD30. Not fire rated.
Intruder resistance	-
Minimum requirement	LPS 1175 Issue 8. Guidance for specification option: Contact NPSA for further Details.
Conformity	- Manufacturer guidance Consult NPSA for more details.
Bullet resistance	To BS EN 1522, Class FB2. Guidance for specification option: Independently tested to EN1522/1523, FB2. Please contact Stafford Bridge for further details.
Explosion resistance	-
Blast duration	Guidance for specification option: 'People In Protected Spaces' C15 or C25 available for certain configurations, please contact Stafford Bridge for further details and insert requirements.
Pressure mode	Guidance for specification option: 'People In Protected Spaces' C15 or C25 available for certain configurations, please contact Stafford Bridge for further details and insert requirements.
Overpressure (maximum)	Guidance for specification option: 'People In Protected Spaces' C15 or C25 available for certain configurations, please contact Stafford Bridge for further details and insert requirements.
Rebound pressure (maximum)	Guidance for specification option: 'People In Protected Spaces' C15 or C25 available for certain configurations, please contact Stafford Bridge for further details and insert requirements.
Frame	-
Material	Steel wrapped frame with steel reinforced timber infill.
Threshold	No threshold. 6 mm Stainless steel 304/ 316 soleplate (threshold) with 15 mm upstand. 6 mm Stainless steel 304/ 316 soleplate (threshold). Exitex CDT100 low level aluminium threshold on top of the 6 mm Stainless steel Soleplate (Threshold). Exitex CDT100 low level aluminium threshold.
Perimeter seals or inserts	Weather seals. Guidance for specification option: If external. Fire intumescent seals. Guidance for specification option: If fire rated.
Finish	Full paint finish. Primed ready for site finish.
External	- Manufacturer guidance Any BS colour code or RAL colour available. Insert requirements.
Internal	- Manufacturer guidance Any BS colour code or RAL colour available. Insert requirements.
Installation fasteners	M10 x 100 Coach screws. Guidance for specification option: Fixing into timber. M10 x 100 Hex head set screws. Guidance for specification option: Fixing into steel. Hilti HRD-UGS 14x140/70 U Plastic frame anchor. Guidance for specification option: Fixing into concrete, brick, or block work.
Frame accessories	Door contacts. Concealed cable loop.
Door leaf	-
Thickness	Minimum 54 mm.
Core	Solid hardwood.
Appearance class	- Manufacturer guidance Contact Stafford bridge for further information if required.
Facings	Formica laminated – Internal – MDF sheets under laminate. Formica laminated – External – Ply sheets under laminate. Acrovyn laminated – Internal – MDF sheets under laminate. Acrovyn laminated – External – MDF sheets under laminate. Hardwood veneered – Internal – MDF sheets under Veneer. Hardwood veneered – External – Ply sheets under Veneer. If painted and internal – MDF sheets to both faces of door leaf. If painted and external – Ply sheets to both faces of door leaf.
Cut	Crown cut veneer. Quarter cut veneer.
Lippings	Painted. Veneered. Laminated. Manufacturer guidance Non-Fire rated: Painted: 8 mm Hardwood Lipping’s Veneered: 8 mm Exposed Hardwood lipping all round, species to be specified to match veneer and/or stain. Laminated: 8 mm Hardwood Lipping, Species to be determined by customer. Fire rated: Painted: 10 mm Hardwood Lipping’s Veneered: 10 mm Exposed Hardwood lipping all round, species to be specified to match veneer and/or stain. Laminated:10 mm Hardwood Lipping, Species to be determined by customer.
Perimeter seals	Acoustic seal. Guidance for specification option: Seals to be specific to type of acoustic rating specified. Weather seals. Guidance for specification option: If external. Fire intumescent seals. Guidance for specification option: If fire rated.
Finish	Factory stain. Full paint finish. Laminated. Primed ready for site finish. Sealed. Veneered. Manufacturer guidance Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.
Colour	-
External	- Manufacturer guidance Any BS colour code or RAL colour available. Insert requirements.
Internal	- Manufacturer guidance Any BS colour code or RAL colour available. Insert requirements.
Glazing	-
Type	None. Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B. Guidance for specification option: Painted steel beading as standard. Optional to have hardwood cloaking to match door leaf finish (if veneered), this reduces clear vision to 150 x 350 mm. Manufacturer guidance Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.
Manifestation	None. Marked for fire resistance. Manufacturer guidance Non-fire rated vision panels are unmarked. Fire rated vision panels are only marked for Fire resistance.
Beading	-
Type	External. Internal. Hardwood cloaked. Steel beading (manufacturer's standard).
Material	Steel. Hardwood. Guidance for specification option: If cloaked, then will be hardwood over the steel beading to match the door leaf finish.
Fixing	Manufacturers standard (steel beading) machine screws. Guidance for specification option: If cloaked, then this will be fixed to the vision panel using machine screws in a brass screw cup.
Door accessories	Door contacts. Guidance for specification option: Surface or concealed. Fabric alarm to the inside of the door leaf.
Hardware	Access control. Cable conduits. Cable loops. Closers. Cylinder guards. Door Actuators. Door selectors. Door stays. Drop seals. Guidance for specification option: Enhance functionality with optional drop seals for improved sound insulation and environmental control. Frame head drips. Handles. Hinges. Intumescent strips (if fire rated). Kick plates. Guidance for specification option: Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset. Locking system. Guidance for specification option: Choose from a selection of single-point or multi-point locking systems provided by Surelock McGill Ltd. Refer to full certification for complete approved locking systems listed on Redbook live. Meeting stile T-bars. Spy holes. Vision panels. Weather boards.
Architraves	-
Material	MDF. Guidance for specification option: If frame is painted and internal, MDF. Hardwood. Guidance for specification option: If frame is painted and external, Hardwood. To match frame. Guidance for specification option: If frame is exposed hardwood with lacquer, and internal or external, species of architrave to match frame
Wood appearance class	- Manufacturer guidance Contact Stafford bridge for further information if required.
Finish	Primed ready for site finish. Sealed. Factory stain. Full paint finish.
Colour	-
External	- Manufacturer guidance Any BS colour code or RAL colour available. Insert requirements.
Internal	- Manufacturer guidance Any BS colour code or RAL colour available. Insert requirements.
Accessories	- Manufacturer guidance Contact Stafford bridge for further information if required.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Timber Steel

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	2
IFC	-	2

Third party certifications

BRE Certificate

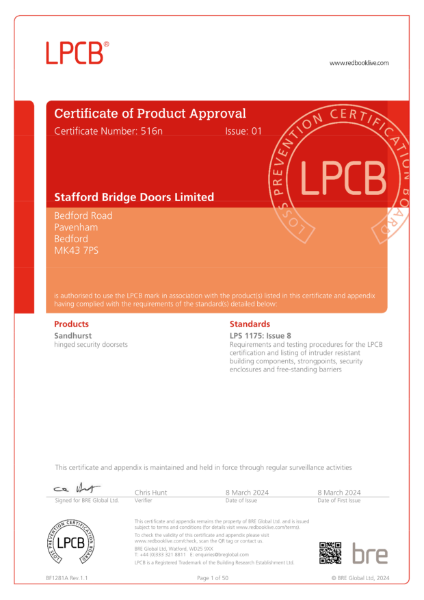

Sandhurst Doorset LPS 1175 Certificate
