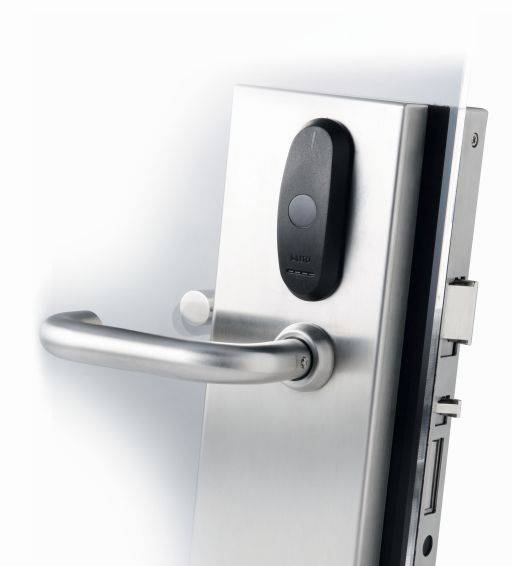

SALTO XS4 Glass Door - DIN
Verified by manufacturer over a year ago
Glass door lock.
Application
Specially designed for use with DIN 18101 standard glass doors.
Description
A steel-bodied glass door lock that is fully integrated with the XS4 platform.
Features and benefits:
- Clutch mechanism escutcheon, that when unlocked, handle moves free.
- ID technologies available:
- i-Button.
- DESFire.
- DESFire EV1.
- Mifare.
- Mifare plus.
- Mifare Ultralight C.
- Inside Picopass.
- LEGIC Prime.
- LEGIC Advant.
- HID iClass.
- SKIDATA.
- Available in a wireless version for wireless real-time control.
- Door status detector to monitor intrusions or door left open status (wireless escutcheons only).
- Body and escutcheon made of steel.
- Automatic lock, the auxiliary latch (anti-card) projects and deadlocks the deadbolt.
- Inside always allows free egress (anti-panic function).
- Sandwich body design for easy installation.
- Mechanical override with audit trail facility available.
- High security through advanced hardened high resistance anti-drill plates.
- Counter strike available for glass-to-glass doors.
General information
Color | Grey Silver Gold Black |
Finish | Polished Satin Stained Anti-microbial |
Material | Steel |
Shape | Rectangle |
Length | 296 mm |
Width | 113 mm |
Height | 22.5 mm |
Warranty description | One year |
Uniclass | |
CAWS | P21/515 Door locks P21/24 Door locks |
Specification data - Door lever handle sets
Third party certification | CE Marked. |
Size | 296 x 113 x 22.5 mm. |
Material and finish | Steel, Stain.Steel, Polished.Steel, Satin Brass.Steel, BioCote® Antimicrobial Protection. |
Colour | Black.Manufacturer guidanceWireless access control. |
Product Reference | SALTO XS4 Glass Door - DIN |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
