Sahara 360 - Instant filtered Boiling Drinking Water Tap - Boiling/ Ambient Drinking Water System

Verified by manufacturer 2 days ago

Sahara 360 XL

Billi UK Variant:
Product certifications:
  • HACCP International Product Compliance Certification

    HACCP International Product Compliance Certification

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Watermark

    Watermark

    Certificate type

Instant filtered boiling & ambient – available in multiple configurations for energy-efficient use in offices, commercial kitchens, Healthcare and homes

Jump to:
BOS
+44 (0) 20 7456 6789 Website

Application

Designed for versatile use across multiple sectors – including offices, healthcare, education, retail, hospitality (hotels, restaurants, bars, cafés), leisure and sports facilities, industrial settings, and public sector buildings. Ideal for high-demand environments requiring reliable, energy-efficient boiling and chilled filtered water solutions.

Description

Water-Cooled, High-Capacity Commercial instant filtered Boiling and Ambient Water Tap System

An advanced, water-cooled commercial drinking water solution designed to deliver instant filtered boiling and ambient water for high-demand environments. Ideal for offices, hospitality, healthcare, education, and public sector settings.

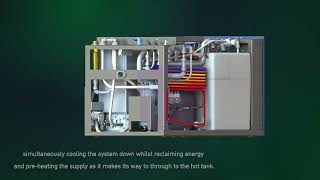

This energy-efficient system uses water cooled technology to remove the need for cupboard ventilation, making it perfect for space-saving installations. With a high hourly output, it supports up to 60 users with ease.

Key Features & Benefits

  • Water-cooled technology for quiet, energy-efficient performance
  • Delivers up to 165 cups of boiling and unlimited cups of ambient filtered water per hour
  • No cupboard ventilation required – easy to specify and install
  • Safe operation, ideal for commercial and public spaces
  • Safety lock – Boiling safety lock option for safe delivery of boiling drinking water.
  • Compact, space-saving design
  • Easy installation and maintenance

Dispenser Variations

XL – Classic lever tap

• Standard operation with ergonomic design

XL with Red/Blue Levers – Equality Act Compliant

• Colour-contrasted for users with vision impairments

XR Remote – Accessibility First - DDA

• Wall-mounted remote control panel ideal for ambulant or wheelchair users

• Inclusive access solution

XT Touch – Modern Aesthetic

• Sleek, touch-activated dispenser for contemporary design environments

Perfect For

  • Offices • Commercial Kitchens • Healthcare Facilities • Schools & Universities • Hotels & Hospitality • Leisure & Sports Centres • Public Buildings • Industrial Workplaces

General information

Color

Silver

White

Black

Grey

Finish

Brushed

Chrome

Matt

PVD

Powder-coated

Material

Zinc

Steel

Stainless steel

Shape

Other

Length

460 mm

Guidance for specification option:

Above-countertop (visible) dispenser only.

Width

180 mm

Height

340 mm

Guidance for specification option:

Above-countertop (visible) dispenser only; lever at maximum height.

Warranty description

Two year

Guidance for specification option:

The Billi Alpine Range is covered by a comprehensive two-year warranty on all parts and labour.

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N11/350 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N11/30 Sinks, taps, traps and wastes

SKU Code

943060LBRUK, 943060LMBUK, 943060LMWUK, 943060LRBUK,943060LUBUK, 943060LGMUK, 943060TCHUK 943060TBRUK, 943060TMBUK, 943060RCHUK

Specification data - Instant boiling and cold water taps

Classification data

Third-party certification

QEC 11627; WRAS certified.

Water

Ambient and boiling.

Duty

-

Hot cups

Up to 165 per hour.

Manufacturer guidance

Based on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C.

Each cup is equivalent to 170 mL.

Usage patterns and draw-off methods can impact recovery.

Cold cups

Unlimited (ambient).

Dimensions

Dispenser: 217 x 140 mm; outlet height: 137.5 mm.

Guidance for specification option:

Maximum height x overall depth (above counter).

  • Hole size required: 35 mm.
  • Inlet centre to outlet: 98 mm.
  • Bench thickness: 1–48 mm.

Manufacturer guidance

See Integral accessories for under-bench unit.

Electrical connection

-

Power

13 A single switched socket must be positioned at a high level and accessible within the cupboard.
The unit comes with a 1 m flex cord and plug.

Water inlet

An accessible drinking water supply from a 15 mm pipe with a minimum pressure of 2.5 bar static and 6 litres a minute flow should be located in the base unit of the installation location.

Safety features

Lever control.
Safety lock.
In built leak detection.

Colour

Chrome (CH).

Guidance for specification option:

Standard finish.

Brushed (BR).

Guidance for specification option:

Standard finish.

Matte Black (MB).

Guidance for specification option:

Standard finish.

Matte White (MW).

Guidance for specification option:

Special order.

Gun Metal Grey (GM).

Guidance for specification option:

Special order.

Urban Brass (UB).

Guidance for specification option:

Special order.

Accessories

None.
120 mm riser and font (992803).
Tubing extension kit for X series dual temp dispensers (990720).
iX02 limescale filter (994032).

Guidance for specification option:

Replaces standard filter (see Integral accessories).

Integral accessories

Sahara under-bench unit with 800 mm tube.
Premium filter.

Guidance for specification option:

Under-bench unit:

  • 340 x 180 x 460 mm (height x width x depth).
  • 350 mm minimum clearance required below bench.

Filter:

  • Billi's range of premium filters utilize BWT's exclusive Fibron X technology which provide superior taste, water quality, consistent filter life and peace of mind on the topic of hygiene.
  • Supplied: 994051 (5 micron).
  • Limescale filter alternative available, see Accessories.

Waste

A 32 mm/ 40 mm mains waste pipe is required within the base unit.
This pipe should include a trap or U-bend to prevent any unpleasant odours. If there is a spigot waste connection, two spigots are required to connect to the waste and condenser line.

Compliance

BREAMM compliant; LEED compliant.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Manufacturing plant location

Material

Zinc
Steel
Stainless steel

Expected Life

Seven year
