Safelock Grating

Safelock Grating

Lionweld Kennedy Flooring Ltd

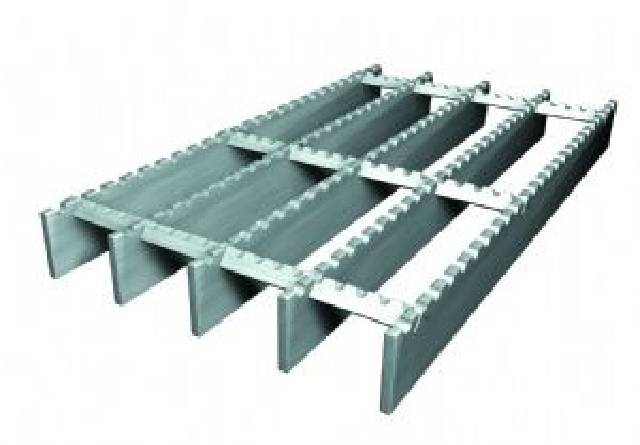

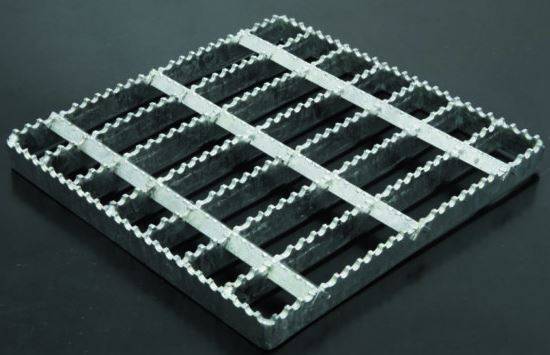

Safelock is the most slip resistant steel flooring in the Lionweld Kennedy range. Due to the double serration, Safelock is used in the most extreme conditions where slip resistance is vital.

Jump to:
+44 (0)1642 245151 www.lk-uk.com

Application

Suitable for use in the following locations:

  • Oil rigs.
  • Other areas where lubricants are regularly used.

Description

Slip-resistant steel flooring grating.

Features and benefits:

  • The double serration provides high slip resistance for extreme conditions.
  • To enable machine serrations in both directions, the transverse bars are made from 13 x 13 x 3 mm inverted angles and then pressure locked into the load bearing bars.
  • Manufactured in accordance with specific project requirements.

Applications:

Suitable for use in the following locations:

  • Oil rigs.
  • Other areas where lubricants are regularly used.

General information

Features

High slip resistance, double serration, load bearing bars serrated as standard, , ball proof

Finish

Galvanising

Material

Steel

Shape

Rectangular

Uniclass 2015

Pr_25_96_30_31 Footway gratingsPrimary

CAWS

L30/45 Ramps/ Walkways

L30/460 Walkways

Q10/312 Footway gratings

Specification data - Footway gratings

Product Reference

Safelock Grating

Size

-

Panel

Consult manufacturer and insert requirements.

Apertures

30 x 100 mm

35 mm ball proof.

41 x 100 mm

Non ball-proof.

Bearing bar depth

Consult manufacturer and insert requirements.

Colour

Galvanized

Self-colour

Consult manufacturer for details.

LoadBearingCapacity

Consult manufacturer and insert requirements.

Accessories/ Other requirements

Not required

Deep saddle clip with self-tapping bolt

For areas subject to vibration or lateral forces.

Frictional fixings

Can be used to secure the steel grating to the supporting steel work.

Self-tapping stud

For areas subject to vibration or lateral forces. Compatible with the 35 mm ball proof variant.

Welded pad

For areas subject to vibration or lateral forces.

Standard product features

Material:

Steel.

Surface:

Double machine serrated.

Product Options

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library
