Safeguard Ultrotherm Internal Insulation System for Solid Walls - Long-term and Practical Solution to Energy Efficiency

CN-ULTILESP5

Safeguard Europe Ltd Variant:

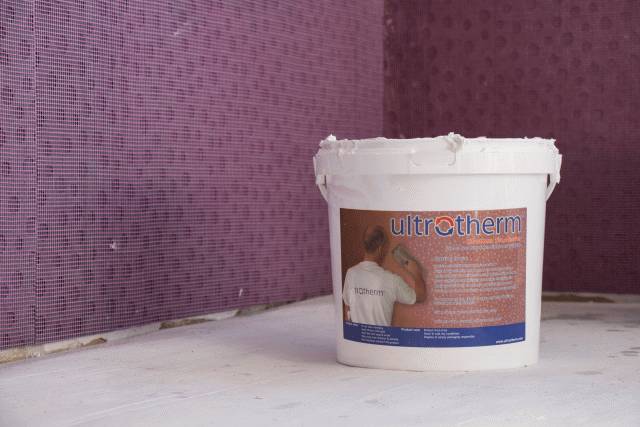

Ultrotherm is an internal insulation system for solid walls. It allows walls to be insulated without costly alterations to skirting boards, windows, covings and radiators.

Jump to:
+44 (0)1403 210204 www.safeguardeurope.com

Application

Suitable for use as an internal insulation system.

Description

Manufactured from a unique formulation of vapour-permeable polyurethane (PU) foam. Not intended for use as a waterproofing barrier, despite it having a high resistance to damage from exposure to moisture. Manufactured in the UK under an ISO 9001: 2008 certified quality management system.


Features and benefits:

  • Easy to install.
  • Fast and effective.
  • Up to 40% energy saving.

General information

Color

Red

Material

Polyurethane

Vapour-permeable polyurethane (PU) foam.

Uniclass

Pr_25_71_63_67 Polyurethane (PUR) foam boardsPrimary

CAWS

P10/220 Sound insulation within timber framed separating wall

Specification data - Polyurethane (PUR) foam boards Enhanced data

Standard

To BS 5852 Ignition source crib 7, BS 6853 Annexure B.2 Toxic fume and BS 853 Smoke density (3 metre cube test).

Fire performance

Class 0 fire rating in accordance with Building Regulation (E&W) Approved Document B.

Testing classification also based on BS 476-6: 1989, A1: 2009 (Fire propagation) and BS 476-7 (Surface spread of flame).


Thickness

8 mm.

Pack of 5.

Anticipated service life

Over 25 years.

Thermal resistance

12 mm Ultrotherm with plaster skim: 0.307 m²K/W, 12 mm Ultrotherm: 0.783 m²K/W, un-insulated 9” solid brick wall: 0.476 m²K/W.

U-value

Un-insulated 9” solid brick wall: 2.1 W/m²K, 9” solid brick wall with Ultrotherm: 1.2 W/m²K.

Environmental information

Country of product manufacture

United Kingdom
