Safegrid Forge Welded Steel Grating - 20mm Ball Proof - Steel Grating and Open Mesh Flooring

Name: Safegrid Forge Welded Steel Grating - 20mm Ball Proof - Steel Grating and Open Mesh Flooring
Brand: Lionweld Kennedy Group
SKU: b1jFNjxBFj5u7hgc8Gy7qe

Verified by manufacturer 1 month ago

Lionweld Kennedy Group

Third party certifications:

EPD
Certificate type
Alcumus SafeContractor
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
BS EN 12206:2021
Certificate type

Steel grating and open mesh flooring.

Jump to:

BOS

+44 (0)1642 245151 Website

Application

Fire escape stairs and landings.

Areas where people may be working below the walkway.

Areas in which the walkway is in constant use.

Please note that a full assessment should be carried out to determine which ball proof requirement needs to be applied to a grating - consult manufacturer for details.

Description

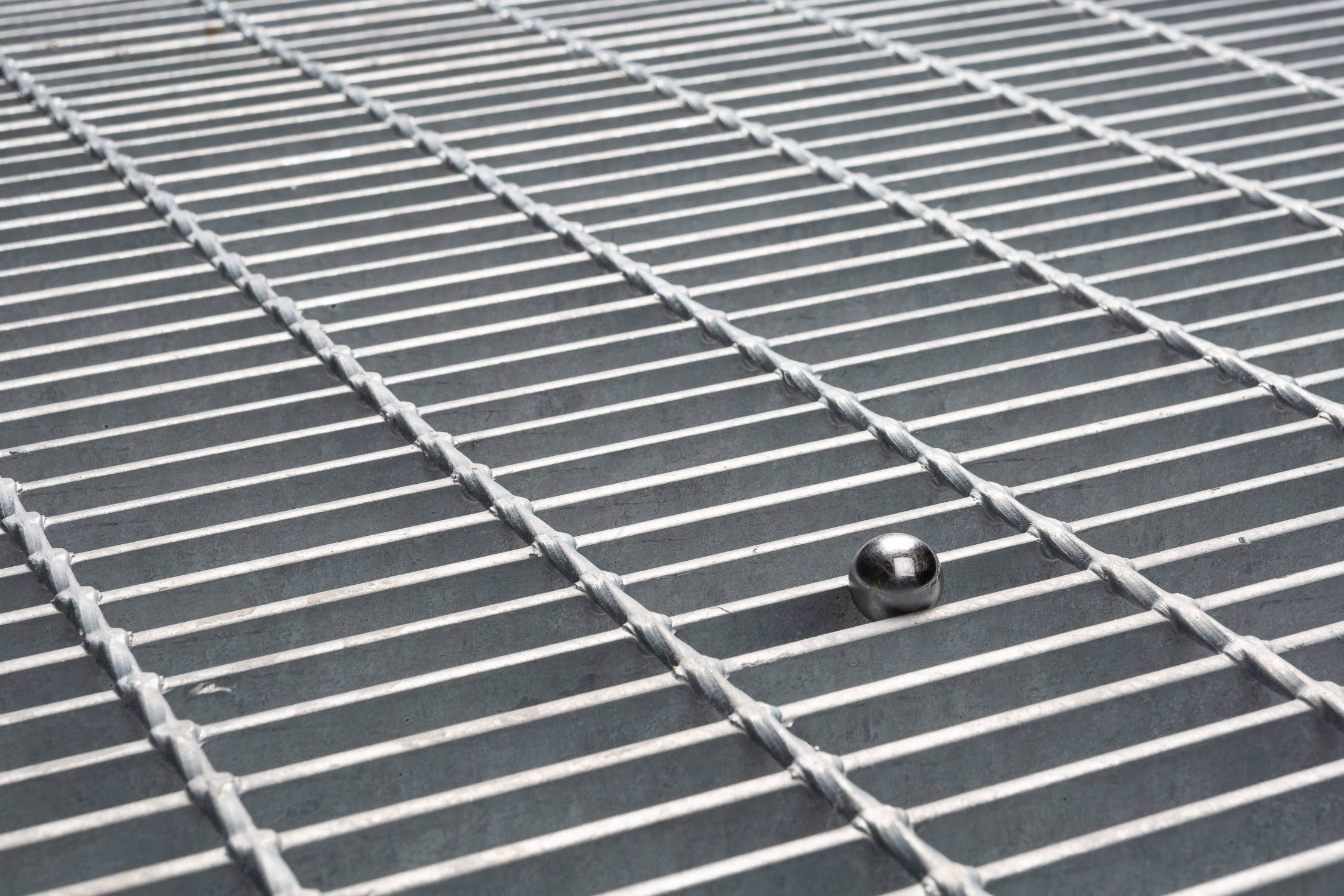

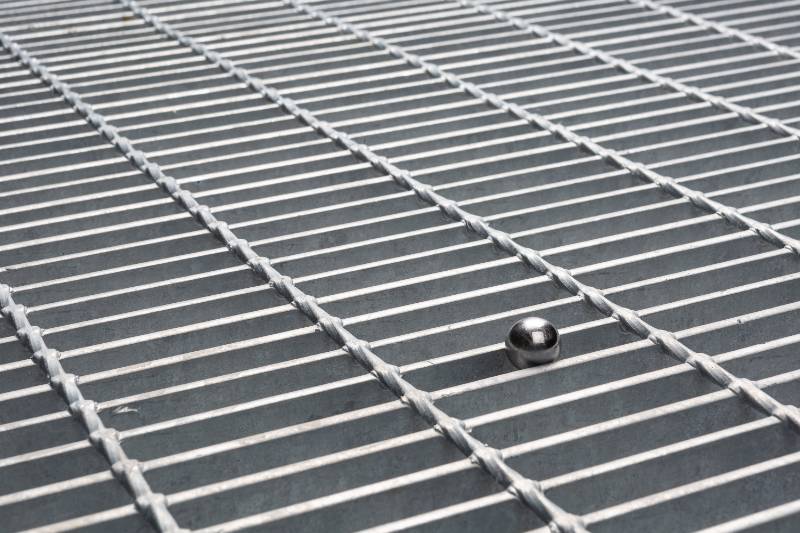

LK Safegrid 20 ball proof (20 BP) is fully compliant to British and European standards and is designed to be used for fire escapes and platforms, walkways, landings and stairs where traffic is constantly passing underneath. The smallest grating opening we offer and designed to not allow the passage of a 20mm diameter sphere.

Features and benefits:

Grade S275JR steel offers high strength.
Maintains shape during fabrication.
Provides an economical solution.
Coordinates with associated access products, including; handrails, stanchions, gates, ladders and stair treads – consult manufacturer for details.
Manufactured in accordance with BS 4592-0: 2006+A1: 2012 and BS EN ISO 14122-2: 2016.

General information

Color	Silver
Finish	Galvanized Unfinished
Material	Steel Guidance for specification option: Grade S275JR.
Shape	Rectangle
Length	Bespoke
Width	985 mm
Height	Bespoke

Uniclass	Pr_25_96_30_31 Footway gratingsPrimary Pr_25_30_30_18 Carbon steel open bar metal gratings
CAWS	L30/460 Walkways Q10/312 Footway gratings L30/45 Ramps/ walkways

Product range	Steel / Gratings

Specification data - Footway gratings

Material	Steel. Guidance for specification option: Grade S275JR.
Finish	Galvanized. Self-colour. Guidance for specification option: Consult manufacturer for details.
Accessories	Not required. Clip on bars. Guidance for specification option: Clips to the top of the steel flooring bars and provides an instant anti-slip surface – no drilling, bolting or welding required. Supplied red for 3 mm gratings, orange for 5 mm gratings. Deep saddle clip with self-tapping bolt. Guidance for specification option: For areas subject to vibration or lateral forces. Narrow top clip. Guidance for specification option: Can be used to secure steel grating to the supporting steel work. Panel jointing clip. Guidance for specification option: Can be used to allow adjacent panels to deflect, under load, as one entity. Self-tapping stud. Guidance for specification option: For areas subject to vibration or lateral forces. Welded pad. Guidance for specification option: For areas subject to vibration or lateral forces.

Bearing bar depth	20 mm. 25 mm. 30 mm. 35 mm. 40 mm. 45 mm. 50 mm. Show more
Fabrication	Complex grating. Cut and bind. Simple grating. Manufacturer guidance Consult manufacturer for further details.
Surface	Machine serrated. Guidance for specification option: Transverse bar below the surface. Provides enhanced slip resistant. Only available with cross bars at 100 mm centres. Plain. Guidance for specification option: Slip resistant. Rolled serrated. Guidance for specification option: Enhanced slip resistant.
LoadBearingCapacity	5.0 kN/m². 7.5 kN/m².
Panel	6000 x 1000 mm. Guidance for specification option: Open-ended panels.
Mesh size	100 x 21 x 3 mm. 100 x 23 x 5 mm. Manufacturer guidance Other transverse pitches are available upon request - consult manufacturer for details.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Steel Guidance for specification option: Grade S275JR.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2.39 kg CO₂ eq/kg
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 %
