SafeAccess Rail | Suspended Work at Height - Fall Arrest Rail System
Verified by manufacturer 2 months ago
Fall arrest rail system for suspended work at height.
Application
- Suspended access for maintenance
- Maintenance of architectural highlights and monuments
- Airport façade maintenance
- Hospital façade maintenance
- Commercial office and shopping mall façade maintenance
- Skyscraper maintenance
- Green walls
Description
The SafeAccess is a robust and versatile suspended access rail system designed for work at height, façade maintenance, and cleaning.
Standards:
EN 1808:2015 I BS8610:2017 | BS EN 795:2012 Type D
Features and benefits:
- Suitable for suspended access on structures from 5 to 300 m (15 to 900 ft)
- Can be installed on building entrances, atriums, courtyards, and main facades
- Custom-made brackets for various structural needs
- Aluminium rail weighs 5 kg/m (3.35 lbs/ft)
- Curved rails available to match building contours, internal structures, and sloped facades up to 70°
- Active climbing system for steep inclines with a high-resistance stainless steel chain. Manual, motorized, or battery-operated trolleys for horizontal movement
- Climbing trolley with pinion enables ascent of inclines up to 70°. Distance between brackets: 3 m (9.84 ft). Trolley capacity: WLL 400 kg (882 lbs)
- Possibility of custom-made solutions with Fallprotec’s engineering department
Components:
- A high-strength aluminium rail for horizontal or inclined installations
- Available anodized or powder-coated in any RAL colour
General information
Color | Silver Grey Other |
Finish | Anodized Powder-coated Mill |
Material | Aluminium Stainless steel Plastic |
Shape | Other |
Length | 3000 mm 6000 mm Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | N25/10 Personal fall protection equipment N25/210 Personal fall protection equipment |
SKU Code | MHS059, MHS060, MHS068, MHS054, MHS048, MHS049, MHS056 |
Specification data - Guided type fall arrest systems
Classification data | |
Pre-installation survey | Suitability of structure and fabric. |
Structural anchors | NAV1 manual trolley - MHS054. Guidance for specification option:
NAV7 trolley for rope access - MHS048. Guidance for specification option:
NAV8 trolley for ground and wall configuration - MHS049. Guidance for specification option:
NAV4 motorized trolley - MHS056. Guidance for specification option:
|
Anchor line | Aluminium SafeAccess Rail, grey (RAL 7040) - MHS059. Aluminium SafeAccess Rail, anodized - MHS060. Aluminium SafeAccess Rail, mill-finished - MHS068. Manufacturer guidanceDelivered in lengths 3 m or 6 m. Bending radius: 600 mm. |
Ancillary equipment | Manufacturer guidanceInsert requirements or omit. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Luxembourg |
Country of product manufacture | France |
Manufacturing plant location | |
Material | Aluminium Stainless steel Plastic |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 6 kg CO₂ eq/kg |
Declared unit | 6 kg CO₂ eq/kg Self-declared Lower emissions |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
Expected Life | 25 year |
Literature
Literature type

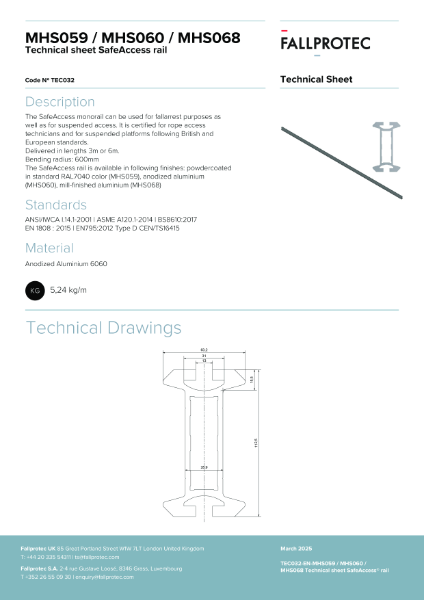

SafeAccess Rail Monorail for Fall Arrest (MHS059 / MHS060 / MHS068)

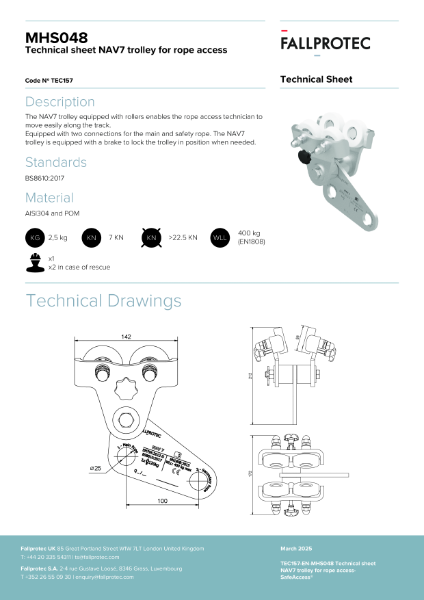

NAV7 Abseiling Trolley with Brake for SafeAccess (MHS048)

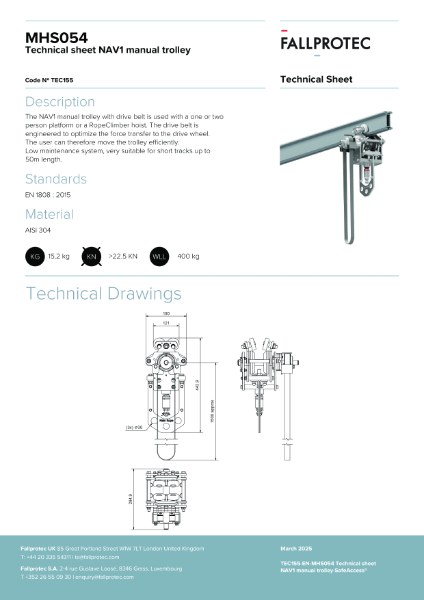

NAV1 Manual Trolley with Drive Belt for RopeClimber (MHS054)

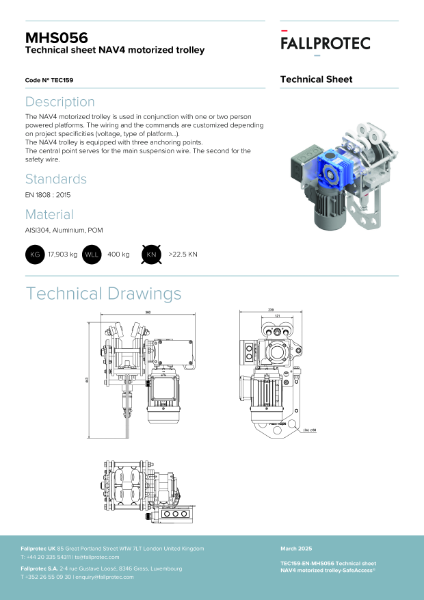

NAV4 Motorized Trolley for SafeAccess (MHS056)
NAV8 Rope Access and Fall Arrest Trolley for SafeAccess (MHS049)

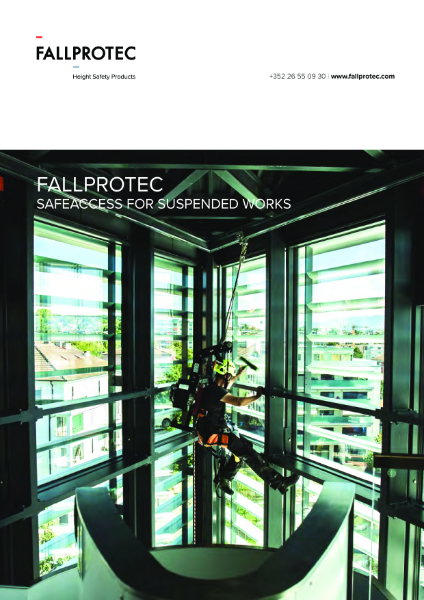

Fallprotec - SafeAccess for Suspended Works
Case studies
SafeAccess for Greenwalls

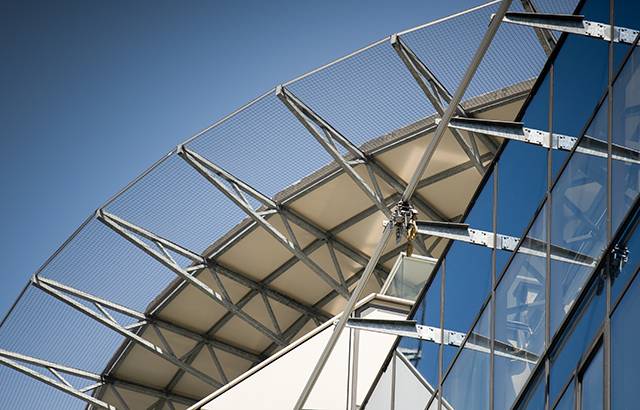

SafeAccess for façade cleaning
