Safe-R SR/CW Partial Fill Cavity Wall Insulation - Partial Fill Cavity Wall Insulation

Name: Safe-R SR/CW Partial Fill Cavity Wall Insulation - Partial Fill Cavity Wall Insulation
Brand: Unilin Insulation UK Limited
SKU: wnL1rwYTnSHPmdueNDXJon

Verified by manufacturer 10 days ago

Unilin Insulation UK Limited

Product certifications:

EPD
Certificate type

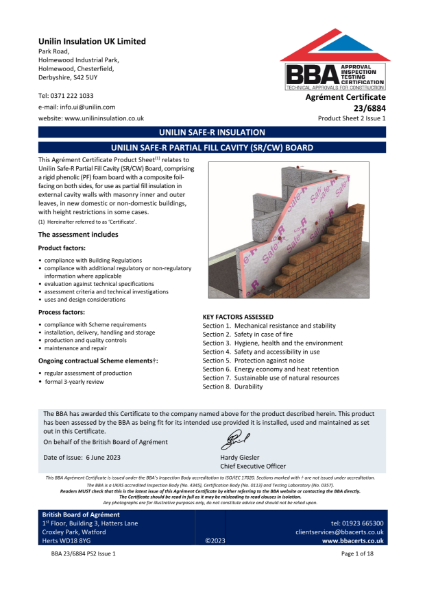

BBA Agrément Certificate
Certificate type

Partial fill cavity insulation for traditional masonry walls.

Jump to:

BOS

+44 (0)371 2221033 Website

Application

Partial fill cavity walls, suitable for use when building traditional masonry walls.

Description

Unilin Insulation Safe-R SR/CW is a partial fill cavity insulation for traditional masonry walls; achieves good U-values whilst maintaining a residual cavity, offering protection from wind driven rain.

General information

Color	Pink
Finish	Foil
Material	Phenolic foam Guidance for specification option: Rigid thermoset modified phenolic resin insulant.
Shape	Rectangle
Length	1200 mm
Width	450 mm
Height	50 mm 60 mm

Uniclass	Pr_25_71_63_59 Phenolic foam boardsPrimary
CAWS	F30/12 Partial fill cavity insulation F30/155 Partial fill cavity insulation

Specification data - Phenolic foam boards

Classification data
Standard	To BS EN 13166.
Third-party certification	BBA Certificate No. 23/6884. BS EN ISO 9001 Quality Management System. BS EN ISO 14001 Environmental Management System. ISO OHSMS 45001 Health and Safety Management System.
Fire performance	Euroclass D-s1, d0.
Thermal conductivity (maximum)	0.021 W/m·K.
Compressive strength (minimum) at 10% compression	100 kPa.
Thickness	50 mm. 60 mm.
Face size (length x width)	1200 x 450 mm.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0%.
Edges	Square.
Facing	Low emissivity composite foil.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom Guidance for specification option: UK and Ireland.
Country of product manufacture	United Kingdom Guidance for specification option: UK and Ireland.
Material	Phenolic foam Guidance for specification option: Rigid thermoset modified phenolic resin insulant.
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 15.5
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
