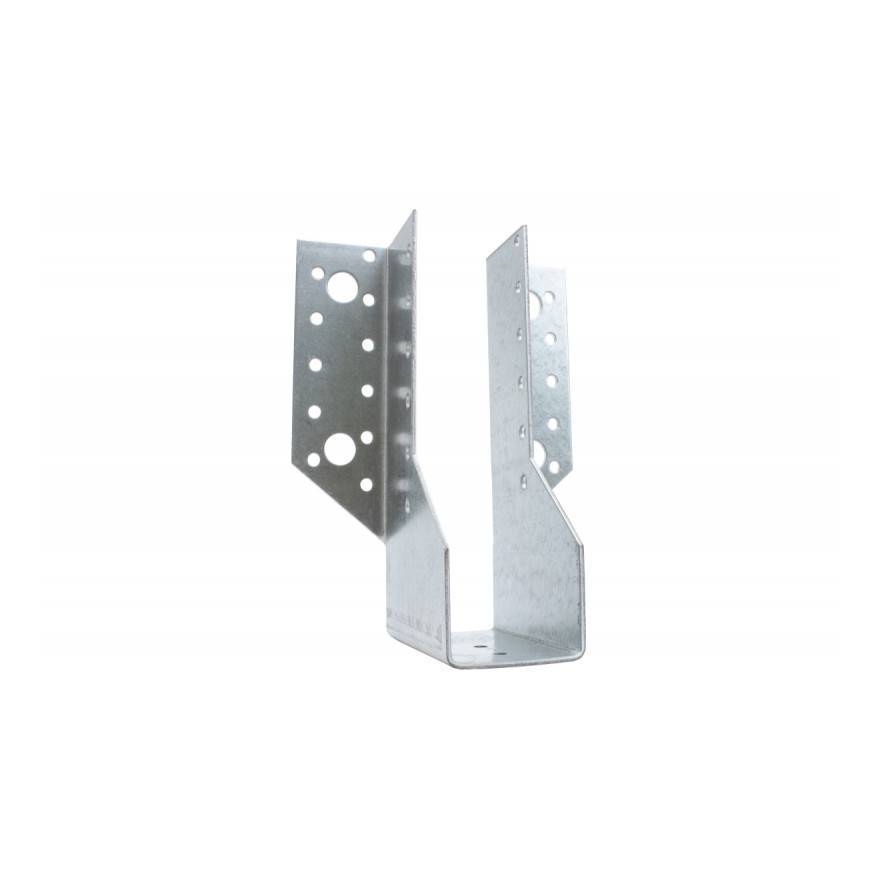

SAE-SAEL: Heavy Duty Face Fix Hangers

Verified by manufacturer 1 month ago

Simpson Strong-Tie Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • DoP

    DoP

    Certificate type

Steel hangers for joists and purlins.

Jump to:
+44 (0)1827 255600 Website

Application

  • For indoor use.
  • Header member: Solid timber, I-joists, steel.
  • For use with: Solid-sawn timber joists and purlins.

Description

SAE and SAI ranges are heavy-duty hangers designed for applications requiring additional strength. SAE hangers are nailed using square twist nails but have bolt holes for 12 mm fasteners into the face. SAE Timber Bolted capacity to be determined according to the relevant standards. The hanger depth is to be at least 60% of the carried member depth to prevent rotation unless additional lateral restraint is added to the top of the carried member.


Features and benefits:

  • Pre-galvanized mild steel.
  • Quick and simple installation.
  • CE marked.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Width

38 mm

40 mm

47 mm

50 mm

56 mm

Show more

Uniclass

Pr_20_29_31_44 Joist hangersPrimary

CAWS

G20/65 Joist hangers

G20/791 Proprietary joist hangers

Specification data - Joist hangers

Third party certification

ETA.

Format

Face fixing.

Material

Carbon steel.

Finish

Galvanized.

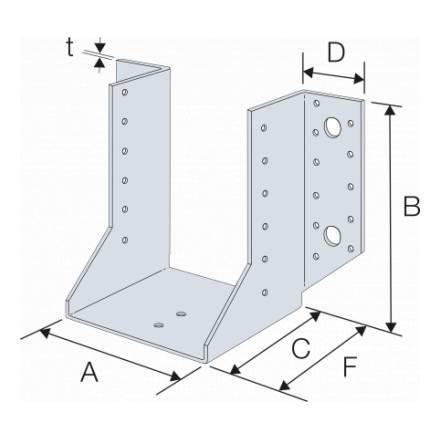

Sizes

-

Manufacturer guidance

Over 65 sizes available; consult manufacturer's literature and insert requirements.

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

European Technical Assessment ETA-06/0270 of 2023/01/06

DoP

DoP

Declaration of Performance DoP-e06/0270

Literature

SAE-SAEL: Heavy Duty Face Fix Hangers

SAE-SAEL: Heavy Duty Face Fix Hangers
