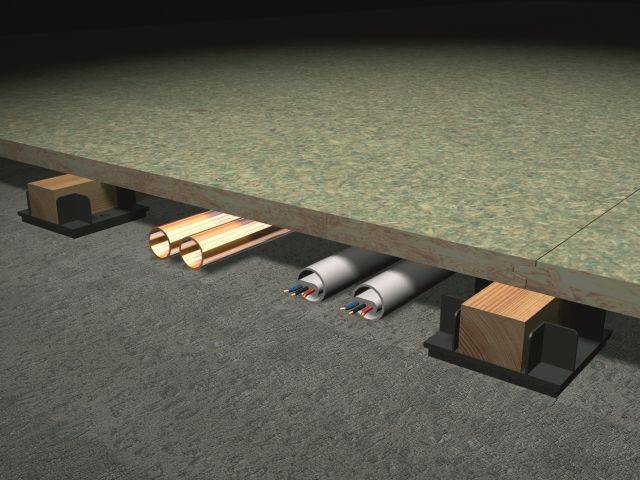

A dry floating floor system with levelling properties.
A dry floating floor system that levels the understructure for supporting particleboard, plywood and hardwood flooring. Suitable for domestic and commercial applications.
The system is designed to resist the passage of impact sound transmission by the use of 9 mm resilient pads fixed to the underside of the saddles, and by isolating the floor deck from the surrounding construction.
Flooring, support bearers, packers, acoustic saddles, elevating blocks, flanking strips and acoustic quilt.
Saddle and Batten System
18 mm Type P5 moisture resistant grade particleboard
22 mm Type P5 moisture resistant grade particleboard
___ mm WBP spruce plywood
|Support bearer height|
|Saddle headcap height|
|Acoustic flanking strip|
Required, height ___ mm
|Standard product features|
47 mm nominal width, in 1800 mm lengths for ease of handling.
Acoustic flanking strip:
