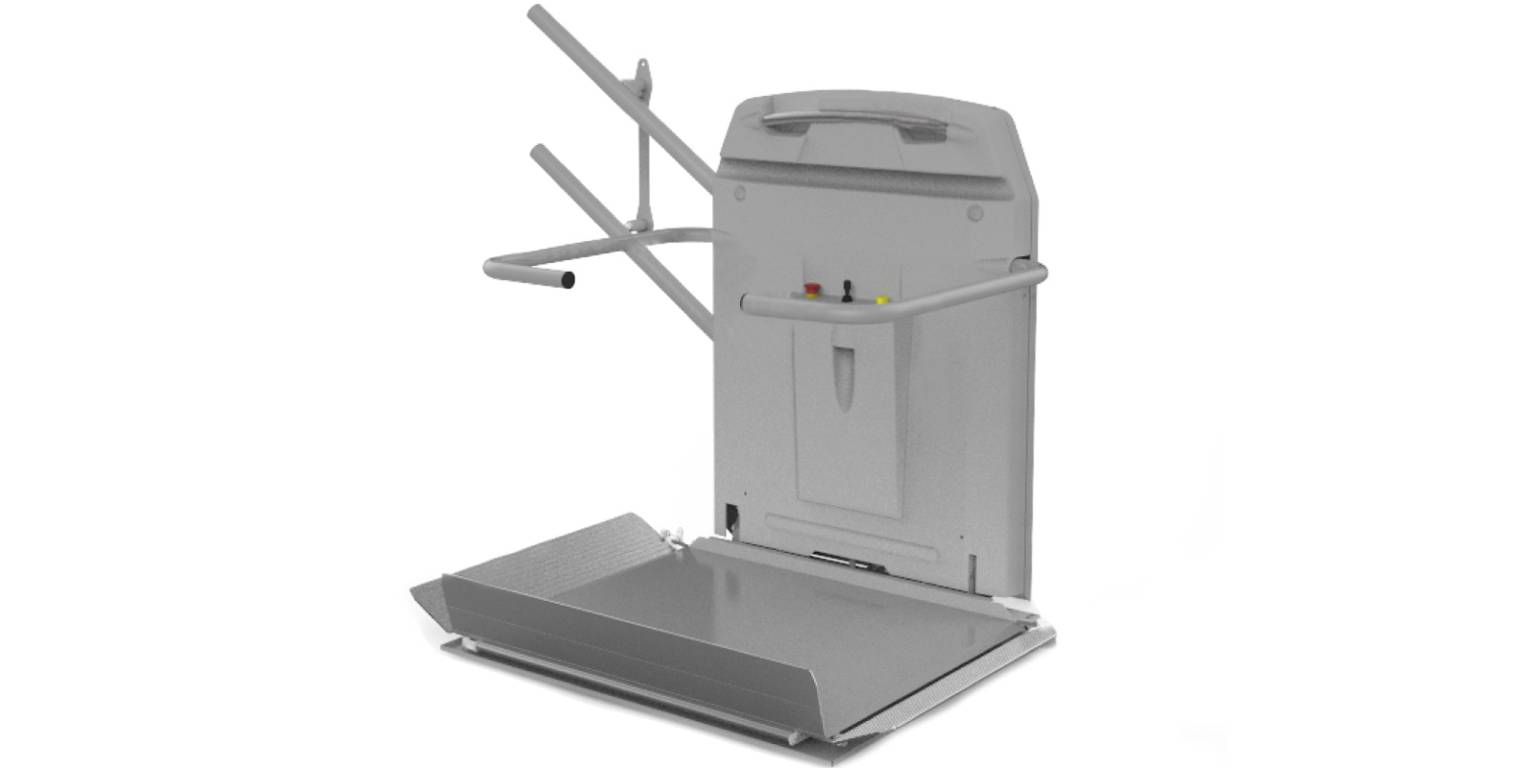

S6 Stairlift - Folding Stair Platform Lift

Verified by manufacturer 5 months ago

CIBES Lift UK

Inclined platform stairlift for curved stairs and stairs with a landing.

Jump to:
+44 (0)800 085 0269 Website

Application

Suitable for indoor domestic and commercial use (offices; schools; homes) and can be adapted for outdoor installation.

Description

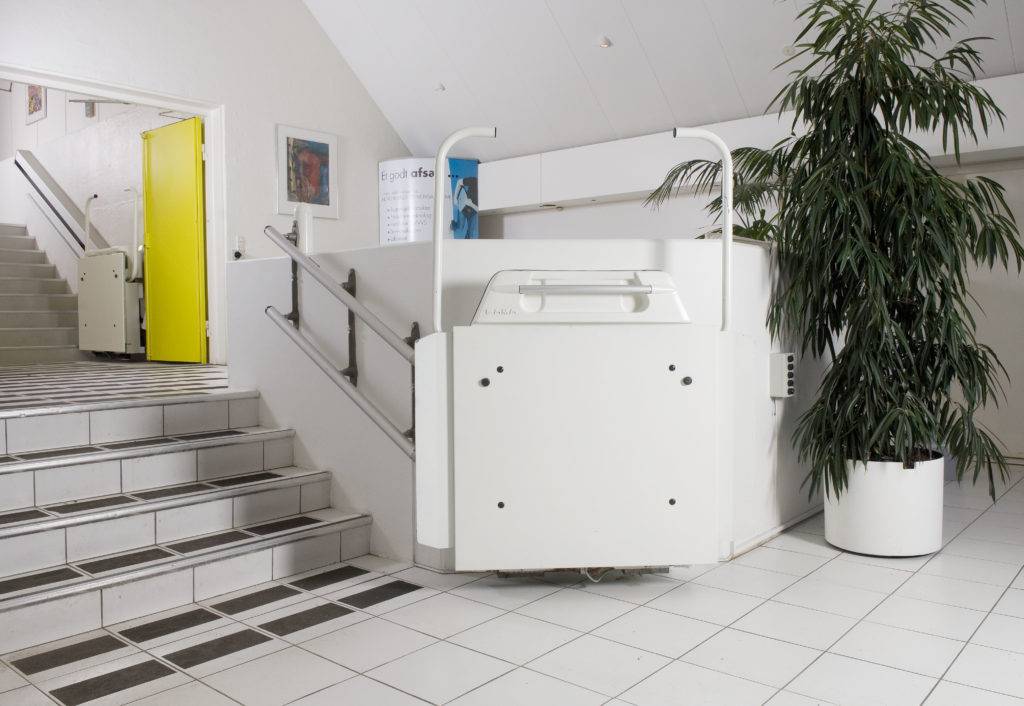

The Cibes S6 curved stairlift is a quality inclined platform lift that can navigate the unique inner curvature of your stairs, with the ability to turn 90 and 180 degrees to drive across a landing.


The lift is perfect for both domestic and commercial use, and can be adapted for outdoor installation.


The S6 Curved Stairlift has a modern, aluminium rail system which looks like a banister and therefore complements the existing décor of your home or commercial building. At the same time, the lift and rail system is designed in a way that makes them easy to reuse.


The S6 Lift has front and back safety arms and flaps and has also been equipped with a jamming sensor which will cease movement to ensure passenger safety.


Features and benefits:

  • Modern aluminium rail system which looks like a bannister, so can complement existing décor.
  • Made to measure: Follows the stairs' curvature and can turn up to 180° to move across any landing.
  • Safety arm and flaps on the front and rear of the platform.
  • Equipped with a jamming sensor as standard.
  • Space-efficient lift solution: The lift attaches to the staircase and folds away neatly, opening automatically on command
  • CE marked.
  • Meets the requirements of European safety standards and are safe and easy to use for people of all ages.
  • Can be easily adapted for outdoor installation and has covers available to keep it in pristine condition.


Safety details:


  • Over-speed governor and brake;
  • Limit switch;
  • Weight sensor;
  • Manual emergency raising of platform arms;
  • Manual release mechanism;
  • Pressure-sensitive surfaces that stop the lift when sensing an obstacle.

General information

Color

White

Other

Guidance for specification option:

Standard colour: RAL 7035.

Black

Beige

Blue

Show more

Finish

Powder-coated

Material

Steel

Aluminium

Shape

Rectangle

Length

1000 mm

1250 mm

Width

800 mm

900 mm

1000 mm

Height

Bespoke

Warranty description

One year

Two year

Uniclass

Ss_80_50_02_83 Stairlift systemsPrimary

CAWS

X13/350 Wheelchair platform stairlifts

X13/350 Wheelchair platform stairlifts

Specification data - Stairlift systems

System performance

Design of stairlift systems

Stairlift format

Inclined wheelchair platform, folding.

Boarding point control devices

Mounted remote.

Guidance for specification option:

For installation in column or masonry.

Handheld remote control.

Mounted control box.

Guidance for specification option:

For mounting on column or wall.

Cable containment

n/a (battery-driven).

Load

225 kg.

300 kg.

Electrical supply

Single phase, 200–260 V a.c.; maximum 10 A.

Speed

0.1 m/s.

Guidance for specification option:

Maximum (reduced speed in the curves).

Design

-

Manufacturer guidance

Insert requirements or drawing reference.

Specify right or left arrangement.


Dimensions:

  • Rail: 50 mm.
  • Width, folded up: 395 mm; folded out: 1130 mm (standard platform wall-mounted).
  • Platform standard size: 1000 x 800 mm.


Travel: 0–50° slope.

Colour

White.

RAL 7035.

Guidance for specification option:

Standard, consult manufacturer.

Motor

Manufacturer's standard.

Guidance for specification option:

Platform/ barrier arm: 24 V.

Lift: 24 V d.c. (300 W).


Driving mechanism: Rack with overspeed governor.

Accessories

None.

Fold-down seat.

Handrail on top of rail.

Guidance for specification option:

Consult manufacturer for options.

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

Literature

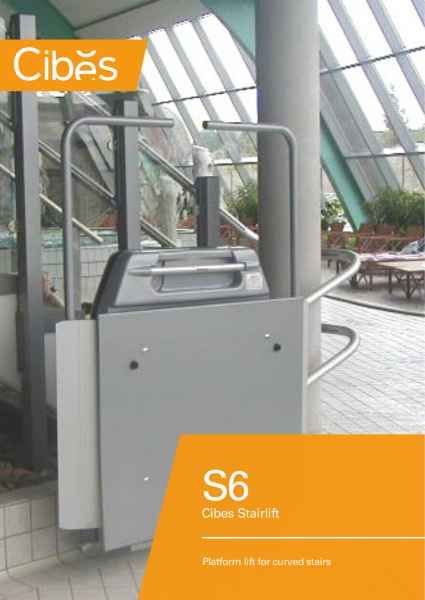

Cibes S6 Stairlift

Cibes S6 Stairlift
