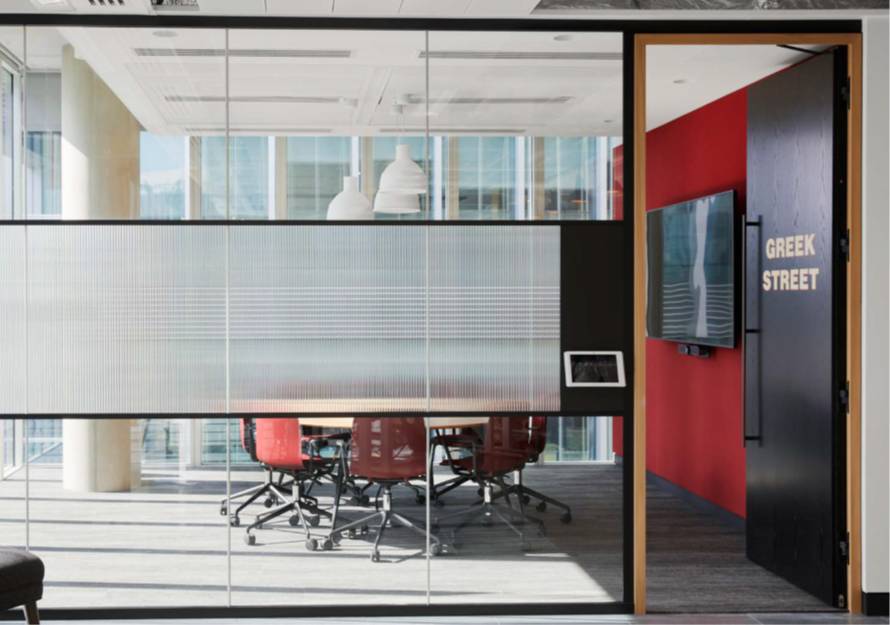

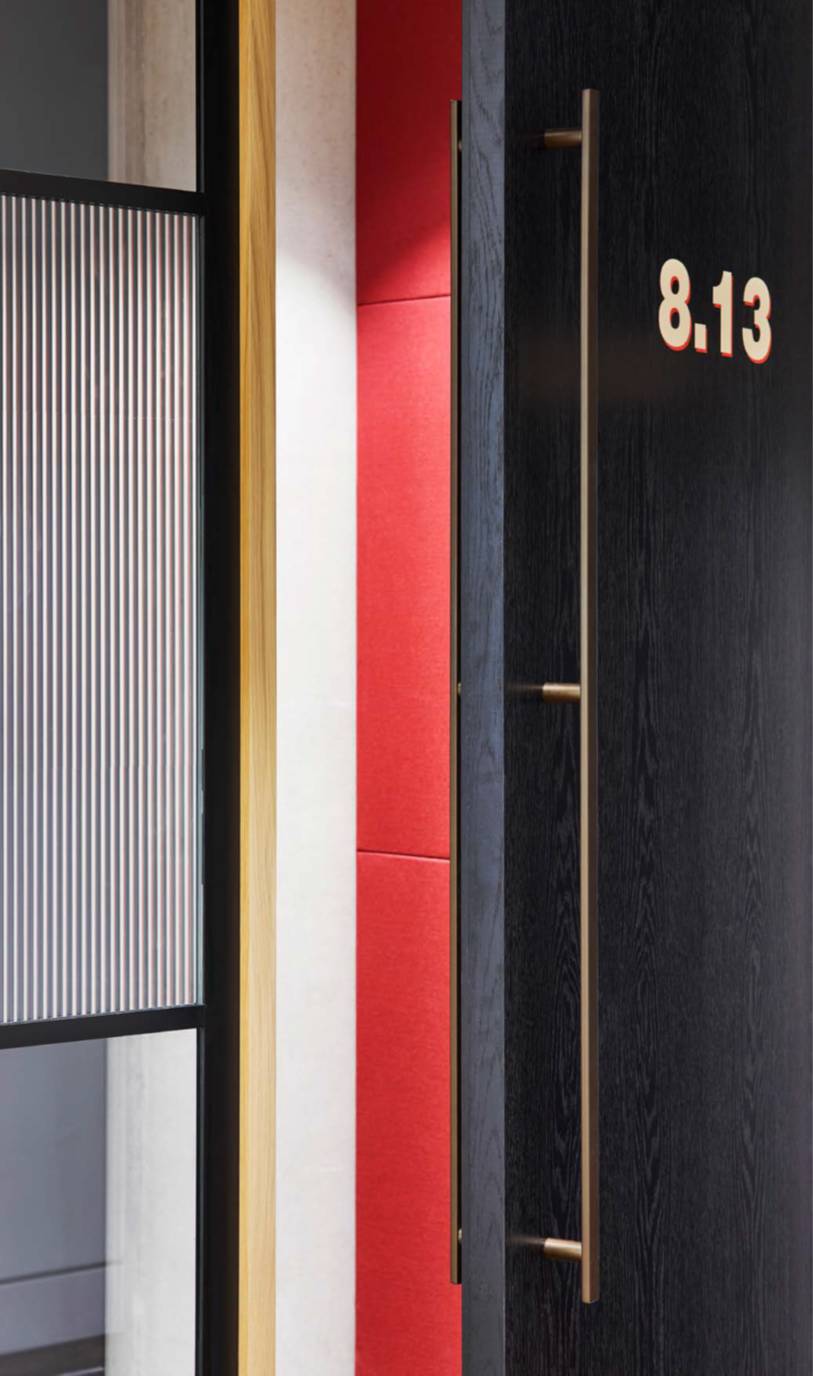

S59 - Timber Door
Verified by manufacturer 1 day ago
Aluminium framed timber door with hinge mechanism and available in a range of facing options.
Application
Suitable for integration into Savile Row Projects partition systems, including:
- System 3400.
- System 3500.
- System 2000.
- System T.
Description
Aluminium framed timber door with hinge mechanism and available in a range of facing options.
Features and benefits:
- Rw 38 or 43 dB acoustic performance.
- Mitred frame and leaf profiles have a high quality aesthetic.
- Available with a range of ironmongery options and accessories.
- Side hinge mechanism allows for drop down acoustic seal.
- Range of facing options: solid wood, wood veneer, melamine, anodized aluminium and powder-coated aluminium.
- Can be used in conjunction with Savile Row Projects partitions.
General information
Color | Black Bronze Other Guidance for specification option: Frame and aluminium facing. Anodized or polyester powder-coated to any RAL colour. |
Finish | Painted Veneered Laminated Anodized Powder-coated |
Material | Wood Timber Aluminium Melamine |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets L20/410 Wood doorsets |
Specification data - Wood doorsets
Classification data | |
Configuration | Single-leaf, single-action. Double-leaf, single-action. |
Doorset size | Guidance for specification option: Up to: 3000 x 1200 mm (height x width). Consult manufacturer and insert requirements. |
Performance | |
Acoustic performance | Rw 38 dB. Rw 40 dB. Rw 43 dB. Manufacturer guidancePerformance is dependent on core type; consult manufacturer for more details. |
Frame | |
Material | Aluminium. Timber. |
Finish | None/ solid wood. Timber veneer. Melamine faced. Exposed metal. Anodized aluminium. Guidance for specification option:
Insert requirements. Powder coated aluminium, RAL. Guidance for specification option: 25% gloss. Powder-coated to any RAL colour. Insert requirements. |
External | As finish. |
Internal | As external. |
Door leaf | |
Thickness | 59 mm. |
Core | Solid core. |
Facings | None/ solid wood. Timber veneer. Guidance for specification option: Consult manufacturer for options and insert requirements. Laminate. Guidance for specification option: Consult manufacturer for options and insert requirements. Painted. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Species | Manufacturer's standard. |
Perimeter seals | Single acoustic drop seal. |
Finish | Not required. Painted. Guidance for specification option: Available specified with solid wood facing option only. Consult manufacturer for more details and insert requirements. |
Colour | |
External | As finish/ facing. |
Internal | As external. |
Hardware | Door stop. Manufacturer guidanceRefer to 'handle type' and 'lock type' bellow and insert requirements. Hardware available brushed stainless steel as standard. Black and bronze options also available, insert requirements. |
Accessories | Not required. Tech panel. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Handle type | SRP Lever handle on oval rose with latch - manual close. SRP Lever handle on oval rose with latch - concealed closer. SRP offset pull handle - concealed closer. Other. Guidance for specification option: Client specified alternative, consult manufacturer and insert requirements. Manufacturer guidance
Consult manufacturer and insert requirements. |
Lock type | Surface mounted mag lock. Morticed shear lock. Euro cylinder. Morticed EM lock. Surface mounted EM lock. Blank escutcheon. Manufacturer guidanceAvailable brushed stainless steel as standard. Black and bronze options also available. Insert requirements. |
Gaskets | Black. Grey. |
Sustainability data
Material | Wood Timber Aluminium Melamine |
