S200 LTF Fixed - Seating

Verified by manufacturer 4 days ago

Hussey Seatway Ltd

Adaptable seating primarily designed for use on fixed platforms.

Jump to:
+44 (0)1985 847200 Website

Application

Designed for use in classrooms and lecture theatres.

Description

Fixed seating mounted onto a platform.

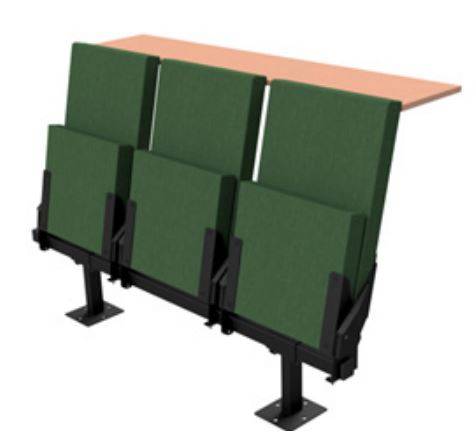

S200 LTF Seat:

Adaptable seating system which combines the chair with a fixed writing ledge. Designed to be installed in classrooms with flat floors or lecture theatres with raised tiering, this ergonomic product is designed to enhance the learning experience.

Fixed Tiering Platform:

Fixed tiers can transform spaces into auditoriums. Manufactured on a project basis, the tiering is available for straight, curved or faceted arrangements. The product is compatible various seating models. It complies with British standards for strength and stability, with a load bearing capacity of 5 kN/m².

Features and benefits:

- Seating:

  • Seat widths from 450 mm.
  • Laminate writing ledge with matching edge banding for durability.
  • Full-height backrest upholstery for modesty.
  • Power and data can be incorporated.

- Platform:

  • Steel frame - 50 x 50 mm mild steel zinc phosphate primed box-section.
  • 24 mm spruce ply decks.
  • Deck boards supported on all edges.
  • Carpeted finish as standard.
  • Range of options for side rails and accompanying panelling system.

General information

Color

Other

Guidance for specification option:

Fabric colour bespoke to project requirement.

Finish

Powder-coated

Primed

Material

Steel

Fabric

Wood

Laminate

Polyester

Show more

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_30_29_29 Fixed seatsPrimary

CAWS

N10/171 Fixed seating

Specification data - Fixed seats

Fire performance

BS 5852 Ignition Source 5.

Manufacturer guidance

The fabric and foam comply with BS 5852:1990 (Source 0, 1 and 5). Other codes or European Standards can be satisfied as required. Applies to plastic, fabric and foam.

Functions

Education.

Guidance for specification option:

Designed for use in classrooms and lecture theatres.

Dimensions

-

Seat height

990 mm.

Seat spacing (lateral)

450 mm (minimum).

Guidance for specification option:

Maximum 540 mm.

Manufacturer guidance

Centres.

Row spacing

900 mm (minimum).

Manufacturer guidance

Row rise: 0–300 mm.

Row depth: 900–1000 mm.

Consult manufacturer and insert requirement.

Seats and backs

-

Material

Upholstered.

Guidance for specification option:

Fabric from the Camira Xtreme range - a modern crepe weave fabric made from 100% post-consumer recycled polyester, diverting waste from landfill and saving virgin raw materials.

Customers own choice of fabric can also be specified.

Colour

-

Manufacturer guidance

Fabric available in a range of colours, consult manufacturer.

Frames

-

Material

Steel.

Finish

Powder-coated.

Colour

Black.

Integral accessories

Not required.
Integral power.
Side rails.
Fascia panel systems.

NumberOfRows

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Standards

To EN 12727.

Clearance

14 mm.

Manufacturer guidance

Clearance between banks.

Design/ size

-

Manufacturer guidance

Insert requirements for overall platform size.

Overall unit height: 4500 mm (maximum).

Flooring

Carpeted as standard.

Guidance for specification option:

Consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel
Fabric
Wood
Laminate
Polyester
Carpet

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Camira Xtreme range - a modern crepe weave fabric made from 100% post-consumer recycled polyester, diverting waste from landfill and saving virgin raw materials.

Literature

Fixed Tiering- Product Specification

Fixed Tiering- Product Specification

S200 Lecture Theatre Fixed- Product Specification

S200 Lecture Theatre Fixed- Product Specification
