Monet - Seating

Verified by manufacturer 4 days ago

Hussey Seatway Ltd

Classic design seating primarily designed for use on fixed rows

Jump to:
+44 (0)1985 847200 Website

Application

Designed for use in auditorium and performance venues.

Description

Fixed seating mounted onto a platform.

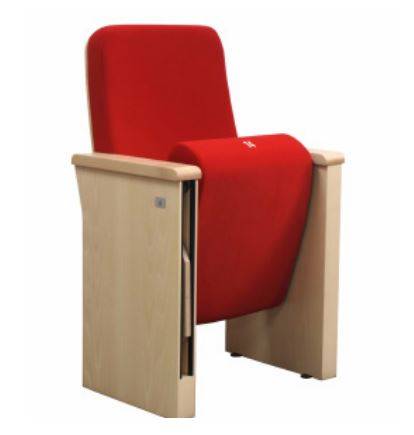

Monet Seat:

Classically designed chair featuring generously proportioned seat and back padding, providing a luxury experience for longer performances. The chair comes with wooden arms and an outer backrest panel to provide a sophisticated aesthetic at an accessible cost.

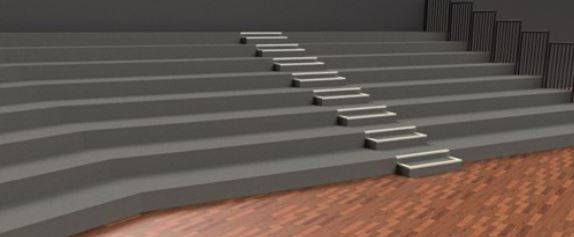

Fixed Tiering Platform:

Fixed tiers can transform spaces into auditoriums. Manufactured on a project basis, the tiering is available for straight, curved or faceted arrangements. The product is compatible various seating models. It complies with British standards for strength and stability, with a load bearing capacity of 5 kN/m².

Features and benefits:

- Seating:

  • Fully upholstered with wooden backrest panel as standard.
  • Soft close tipping mechanism allowing the seat to whisper back into place once vacated.
  • Shared leg design.
  • Seat centres from 500–550mm.
  • Accessories include seat numbers, row end panels, and 45° seat return.

- Platform:

  • Steel frame - 50 x 50 mm mild steel zinc phosphate primed box-section.
  • 24 mm spruce ply decks.
  • Deck boards supported on all edges.
  • Carpeted finish as standard.
  • Range of options for side rails and accompanying panelling system.

General information

Color

Other

Guidance for specification option:

Fabric colour bespoke to project requirement.

Finish

Powder-coated

Primed

Material

Steel

Fabric

Wood

Carpet

Polyester

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_30_29_29 Fixed seatsPrimary

CAWS

N10/171 Fixed seating

Specification data - Fixed seats

Fire performance

BS 5852 Ignition Source 5.

Manufacturer guidance

The fabric and foam comply with BS 5852:1990 (Source 0, 1 and 5). Other codes or European Standards can be satisfied as required. Applies to plastic, fabric and foam.

Functions

Auditorium.
Stadium.

Dimensions

-

Seat height

900 mm.

Seat spacing (lateral)

500 mm (minimum).

Guidance for specification option:

Maximum 550 mm.

Manufacturer guidance

Centres.

Row spacing

-

Manufacturer guidance

Row depth: 800 mm (minimum).

Consult manufacturer and insert requirement.

Seats and backs

-

Material

Upholstered.

Guidance for specification option:

Fabric from the Camira Xtreme range - a modern crepe weave fabric made from 100% post-consumer recycled polyester, diverting waste from landfill and saving virgin raw materials.

Customers own choice of fabric can also be specified.

Colour

-

Manufacturer guidance

Fabric available in a range of colours, consult manufacturer.

Frames

-

Material

Steel.

Finish

Powder-coated.

Colour

Black.

Integral accessories

Not required.
Seat numbers.
End panel.
45° seat return.
Side rails.
Fascia panel systems.

NumberOfRows

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Standards

To EN 12727.

Armrests

Wooden armrest supplied as standard.

Design/ size

-

Manufacturer guidance

Insert requirements for overall platform size.

Overall unit height: 4500 mm (maximum).

Flooring

Carpeted as standard.

Guidance for specification option:

Consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Steel
Fabric
Wood
Carpet
Polyester

Expected Life

20 year

Literature

Fixed Tiering- Product Specification

Fixed Tiering- Product Specification

Monet Chair- Product Specification

Monet Chair- Product Specification

Camira Xtreme

Camira Xtreme
