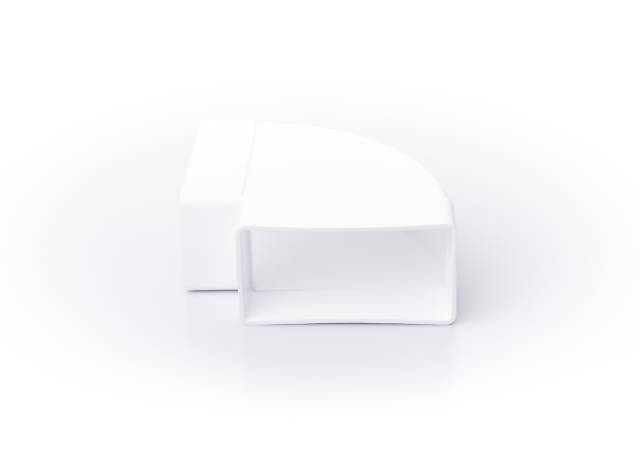

Rytons 90° Horizontal Bend
Flat channel ducting 90° horizontal bend.
Flat channel ducting vertical bend allowing a 90° horizontal change of direction.
Features:
- Connects to Flat Channel Duct RD4/M.
- Female component.
- Part of Rytons 100 mm (110 x 54 mm) RytDuct® Range.
- For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods.
- For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour.
- Suitable for working temperatures of -20 to +60ºC.
| Features | Connects to Flat Channel Duct RD4/M Female component Part of Rytons 100 mm (110 x 54 mm) RytDuct® Range For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour Suitable for working temperatures of -20 to +60ºC |
| Material | Plastic |
| Uniclass 2015 | |
| CAWS | U90/425 Rigid ductwork and fittings |
| Product Reference | RD4H90 |
| Static pressure drop | 15 L/s: 9.8 Pa.30 L/s: 39.8 Pa.60 L/s: 161.9 Pa. |
| Standard product features | Material: Plastic. Colour: White. |
