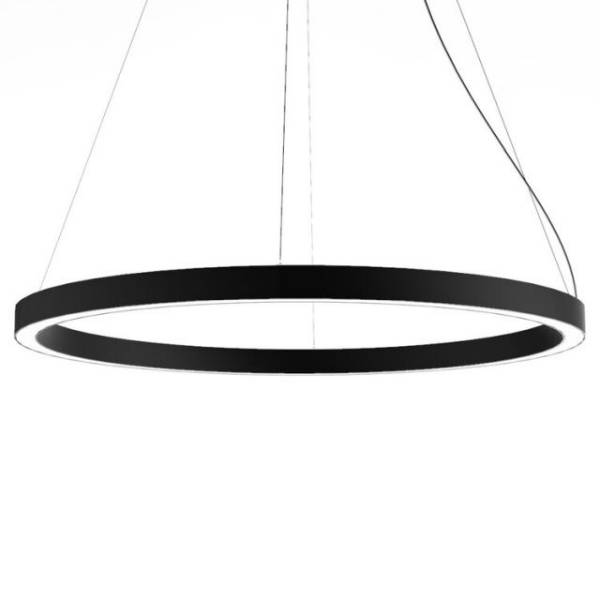

Rydal Suspended Feature Lighting
Application

Suitable for atrium spaces, retail areas, office space and public buildings.

Description

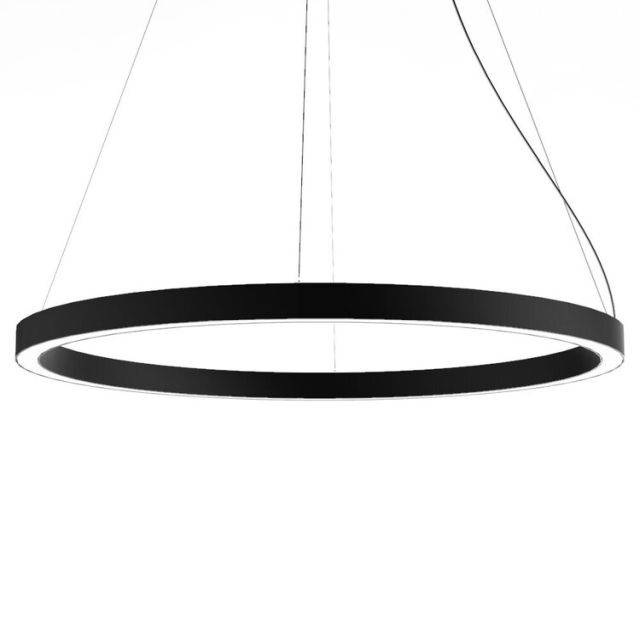

Suspended halo feature LED lighting.


Features and benefits:

  • A suspended circular ring of light.
  • A range of size and colour variations are possible and can be tailored to your design with a diameter of up to 8 metres.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Internal ballasts or drivers are supplied.

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Circular

Size

Seven sizes, ranging from 600–3000 mm.

-

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling.

Directive 2015/863/EC - RoHS.

Directive 2012/19/EC - WEEE.

Directive 2014/35/EU - making available on the market of electrical equipment.

Directive 2011/65/EU - hazardous substances.

Third-party certification

Photometrics.

Luminaire description

Suspended, tubular strip.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.97.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

Non-SELV.

Initial LED luminaire efficacy (minimum)

103 lm/W.

Wattage

Direct 23.7 W/ 2620 lm up to 142.3 W/ 14660 lm, Direct/ Indirect 31 W/ 3400 lm up to 249.2 W/ 25390 lm.

Colour temperature

3000K.

4000K.

Tunable White (TW) 2700-6500K.

Insert requirements. Not available with emergency.

Colour rendering index (Ra)

80.

90.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Accessories

Not required.

Suspension cable.

Available 2000 mm, 4000 mm, and 6000 mm.

Product Reference

Rydal Suspended - LED

Control gear position

Integral within luminaire.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Length

600 mm.

850 mm.

1200 mm.

1500 mm.

2000 mm.

Show more

Optics

Microprismatic Diffuser.

Opal diffuser.

Colour

Black.

Grey.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<18.5.

Longitudinal

<18.5.

Efficiency

96%.

Frequency

50–60 Hz.

Emergency output

210 lm.

Upward light output ratio (ULOR)

80%.

Downward light output ratio (DLOR)

20%.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
