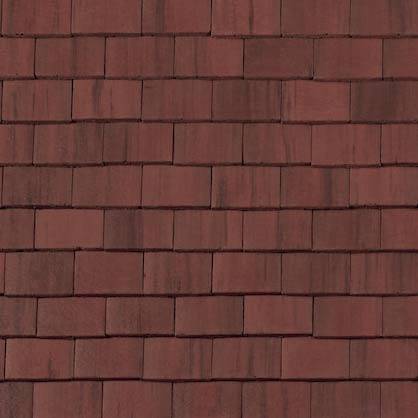

Russell Plain Roof Tile
Compare variants

Application

Suitable for historic restorations and projects where aesthetic appearance and cost efficiency are important.


Description

Flat concrete roof tile


Features and benefits:

  • Provides the appearance of a traditional clay tile.
  • Part of the Russell Regency range.
  • Manufactured in accordance with BS EN 490 and BS EN 491.
  • Approvals: Non-combustible when tested to BS 476: Part 3, 2004 (spread of flame and fire prevention).
  • Approvals: SAA classification.

General information

Color

Orange

Red

Brown

Grey

Material

Clay

Shape

Rectangle

Length

267 mm

Width

165 mm

Height

12 mm

Uniclass

Pr_25_93_72_18 Concrete plain tilesPrimary

CAWS

H60/10 Vertical tiling

H60/120 Concrete roof tiling

null Concrete roof tiling with counterbattens

H60/155 Concrete vertical tiling

H60/3 Roof tiling

null Roof tiling with counterbattens

Specification data - Concrete plain tiles Enhanced data

Standard

To BS EN 490; BS EN 491.

Colour

Anthracite.

Burnt Orange.

Cottage Red.

Peat Brown.

Slate Grey.

Terracotta.

Edwardian Blend.

Mix of three colours - brown, red and orange, all with a streak in the tiles which gives a random effect across the whole roof when laid. Gives the effect of traditional clay colours with the benefits of a concrete tile.

Elizabethan Blend.

Mix of three colours - brown, orange and red with a streak through the tiles to give a random effect. Brown is the majority colour; the orange and red blend gives a traditional varied clay colour look.

Georgian Blend.

Mix of three colours - brown, orange and red, with a random streak through the tiles which gives a mottled effect similar to traditional clay plain tiles. Can be enhanced by also blending the associated plain tile fittings on both pitched roofs and vertical tiling.

Jacobean Blend.

Mix of three colours - brown, dark grey and red which have a streak through the tiles which gives a random colour effect to look like a traditional clay tile, with the benefits of a concrete tile.

Victorian Blend.

Mix of two colours - dark grey, and a brown with a streak effect in the tiles to create a random look giving a mottled colour effect across the whole roof.

Windsor Blend.

Three plain tile colours to match in with existing clay plain tile roofs in the South East of England to create a weathered look.

Size

267 x 165 mm.

Head-lap

65 mm.

Weight

78 kg/m².

Roof covering

Covering width: 165 mm.

60 tiles per m².

Gauge

110 mm.

Maximum.

Pitch

35°.

Minimum.

90°.

Maximum.

Batten size

38 x 25 mm.

For rafters not exceeding 600 mm.

Accessories

A range of complementary ridge, verge, hip tiles and valleys with corresponding fixing products used in conjunction with dry fix ridge, hip and verge systems along with roof ventilation products are available; consult manufacturer for details.

Fixing

40 x 2.65 mm aluminium alloys nails.

Smooth or ring shank dependent on fixing specification.

Thickness

12 mm.

Total weight

Tile weight.

1.3 kg.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Can be fully reclaimed for use on another building or recycled as crushed aggregate in a wide range of applications

-
