Round Edge And Corner Trims
Verified by manufacturer 6 months ago
ERA080
ERA080

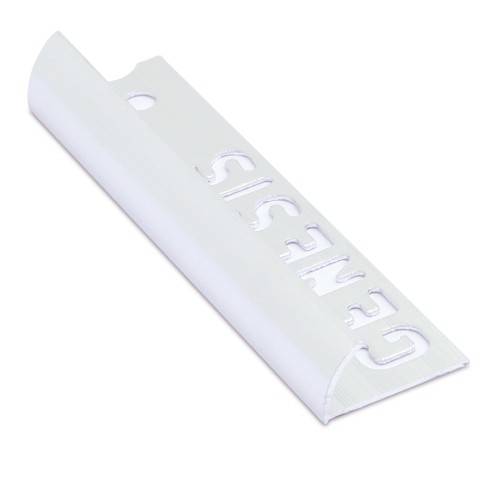

Extruded aluminium profile with semi-round edges.
Application

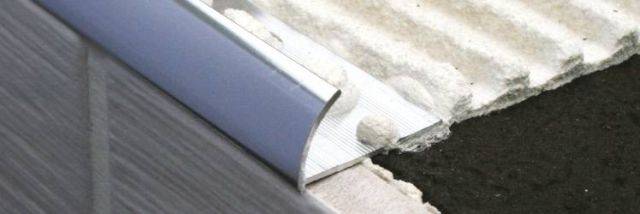

Designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations.
- Select ERA according to tile thickness.
- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
- Press the perforated anchoring leg of the ERA into the tile adhesive and align, mechanical fix if required
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile; the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
- Fill the joint completely with grout.
Description
An extruded aluminium profile with semi-round edges designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations.
In choosing aluminium as a finishing profile the suitability of its installation must be determined if chemical or mechanical stresses are anticipated. Three way corner pieces are also available to solve the problem of mitres that can often be sharp or unsightly. Available in four sizes.
General information
Color | Silver |
Finish | Matt Bright |
Material | Aluminium |
Length | 2500 mm |
Height | 10 mm 12 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - Floor edging strips
Material | Aluminium. |
Finish | Matt Silver 81.Bright brass 86.Guidance for specification option: For ERA100 and ERA120. Bright Silver 91. |
Colour where exposed to view | Silver. |
Cross section size | 2500 x 4 x 8 mm.Guidance for specification option: (L x W x D). |
Profile | Round edge. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Literature
ERA Datasheet
