Description

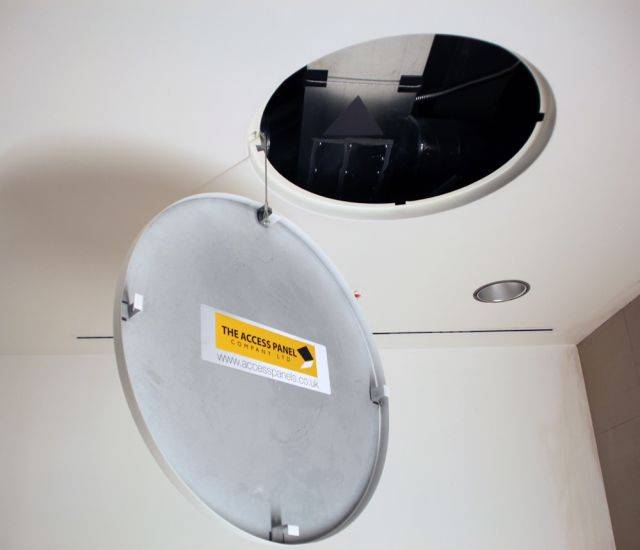

Round Access Panels provide protected openings in ceilings and walls for access to building engineering services where a round outline continues architectural themes blending with other fittings. The narrow 27 mm profile can be used in all types of wall or ceiling construction. The panels consist of a removable door tray and frame and come fully finished in powder coated white which can be over painted on site to blend in with surrounding surfaces.

There are two frame options for the Round Access Panel: Beaded frame type (SBF) with perforated flange to key into surrounding membrane, used where the surface has yet to be finished; Picture frame type (PF) where the solid flange sits on the surface of the wall or ceiling and covers the cut edge of the aperture, used when the surface has already been finished.

Spun from 1.5 mm steel or aluminium which reduces during the manufacturing process the panels are located with a ‘bayonet’ 15 mm lateral action twist movement and are fitted with a retaining chain.

General information
Size

300 mm diameter

450 mm diameter

600 mm diameter

Finish

Factory finished polyester powder coated RAL 9010 (other colours available on request)

Uniclass 2015
Access panels (Pr_30_59_36_01)Primary
Specification data - Access panels
Product Reference

Round Access Panel

Size

300 mm diameter

450 mm diameter

600 mm diameter

FrameType

Picture Frame (PF)

Simulated Beaded Frame (SBF)

Standard product features

Finish:

  • Factory finished polyester powder coated RAL 9010 (other colours available on request).
