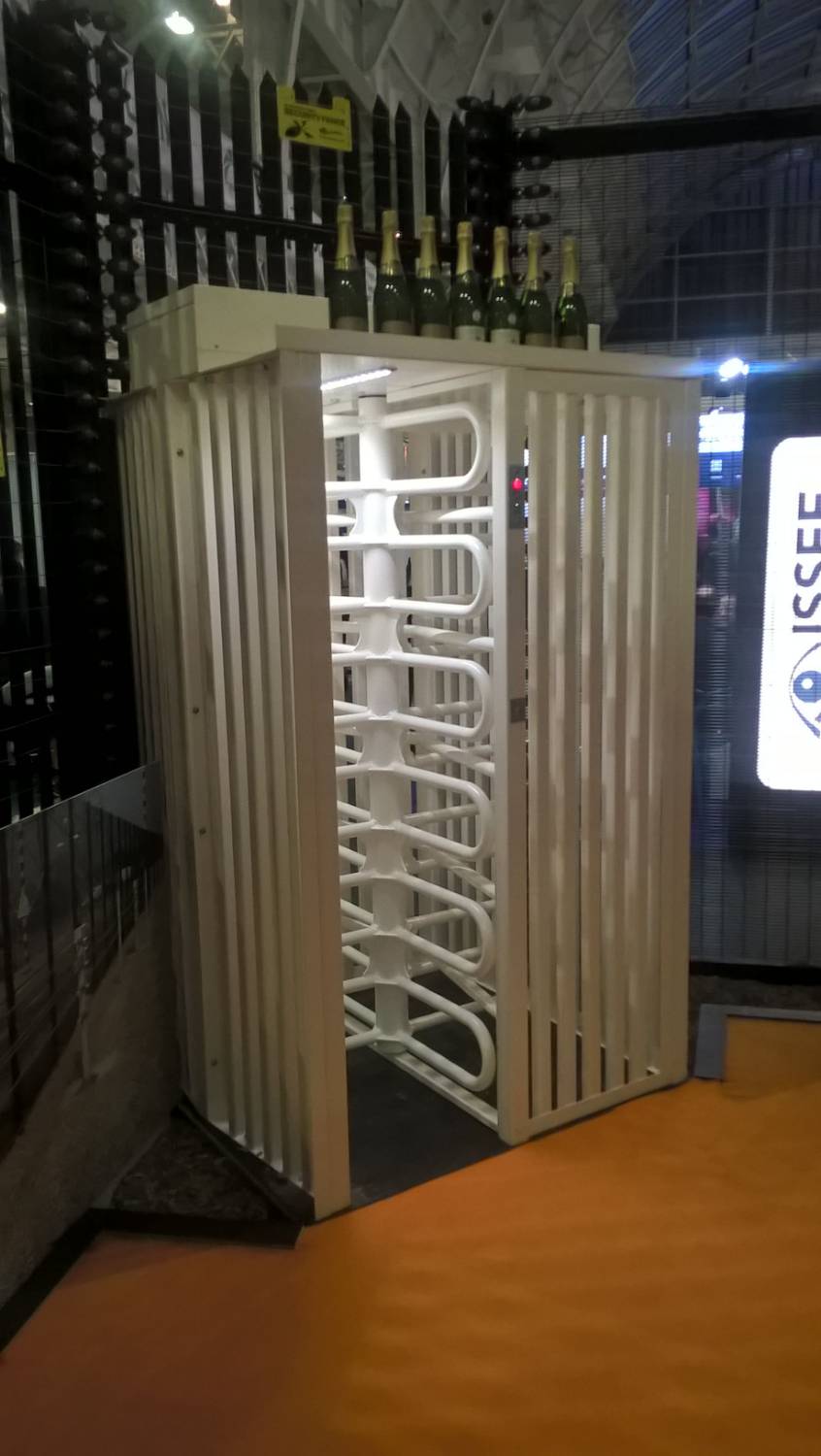

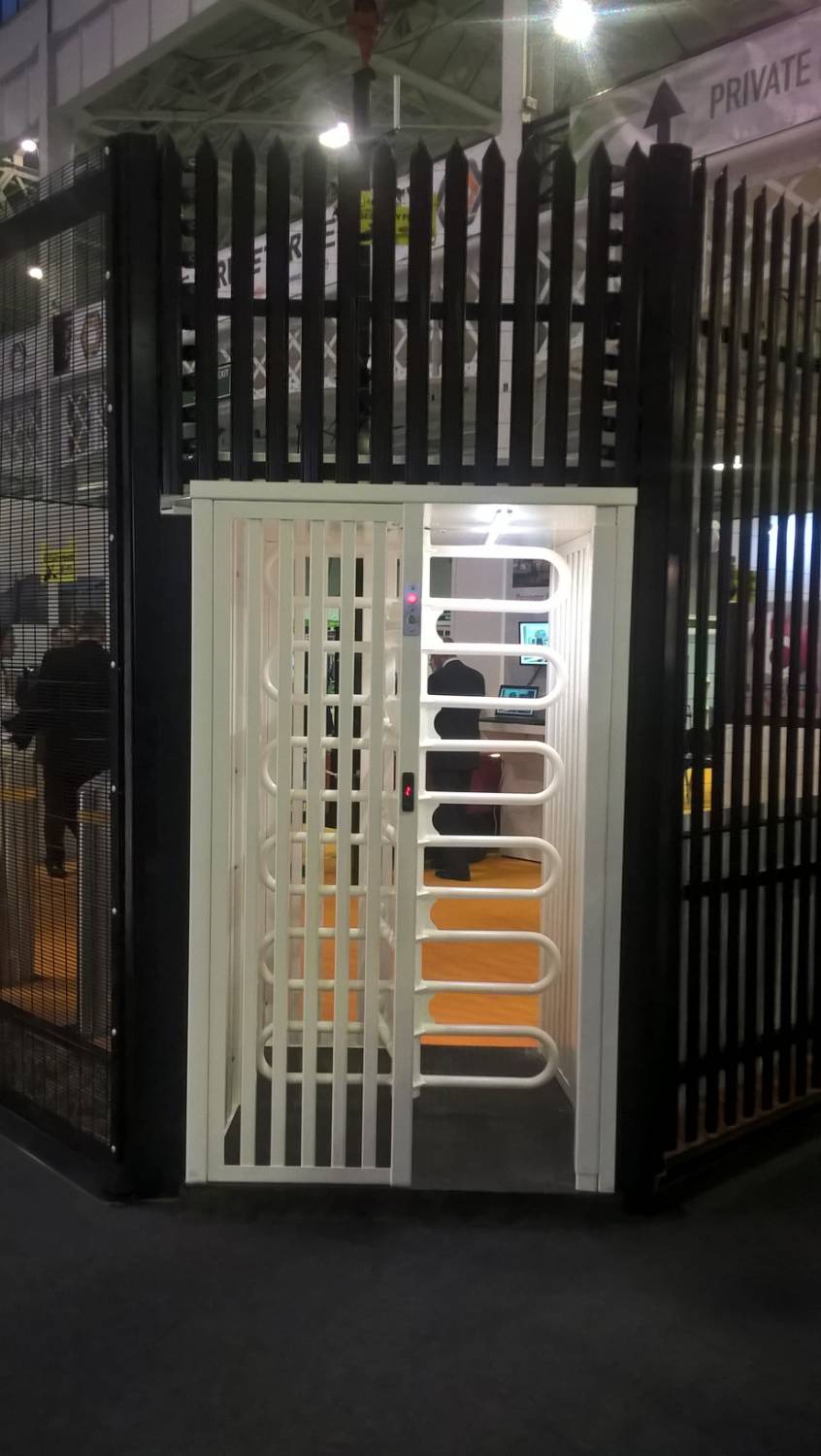

RotaSec HS90SC Full Height High Security Turnstile

Application

  • Petrochemical site.
  • Construction sites.
  • Stadia.
  • Ports and harbours.
  • Government buildings and embassies.


Description

Internal/external full-height security turnstile.


Features and benefits:

  • Anti-crawling barrier.
  • Anti-pass back barrier.
  • Anti-reverse rotation during transit.
  • Self-centring to reset position.
  • Action lock preventing two passages at one time.
  • Manually operated arms.
  • Voltage-free contact input for fire alarm fail state.
  • Anti-pinching design construction.
  • Fail-lock (default) and fail-safe available upon request.
  • Time to repair: <30 minutes.

General information

Color

Any RAL is available on request.


Black

Green

Grey

White

Finish

Painted

Material

Steel

Size

1276 x 1270 x 2200 mm

Uniclass 2015

Pr_30_59_34_78 Stainless steel full-height turnstilesPrimary

Specification data - Stainless steel full-height turnstiles Enhanced data

Rotation

Bidirectional.

Pushed via hand operation when authorised.

Control unit

Required.

Contactless. Control box located in the roof.

Finish

Painted steel.

Any RAL is available on request.

Product Reference

RotaSec HS90SC

Type

Full height.

Passage height

2100 mm.

Operating temperature range

-5 to +50°C.

95% no condensing relative humidity.

Cable channel

Through the ground.

Ingress protection (IP) rating

IP44.

Noise

< 55 dB.

MeanTimeBetweenFailure

Three million cycles.

Rotor

Mild steel, hot zinc sprayed with polyester powder coat finish.

Bar type

38 mm.

Type

The interlocking version provides a compact two-lane layout.

Passage rate

12 passages per minute.

Insertion access reader.

15 passages per minute.

Swipe access reader.

17 passages per minute.

Proximity access reader, "hands free".

NominalFrequency

50–60 Hz.

Voltage

115–230 V.AC.
