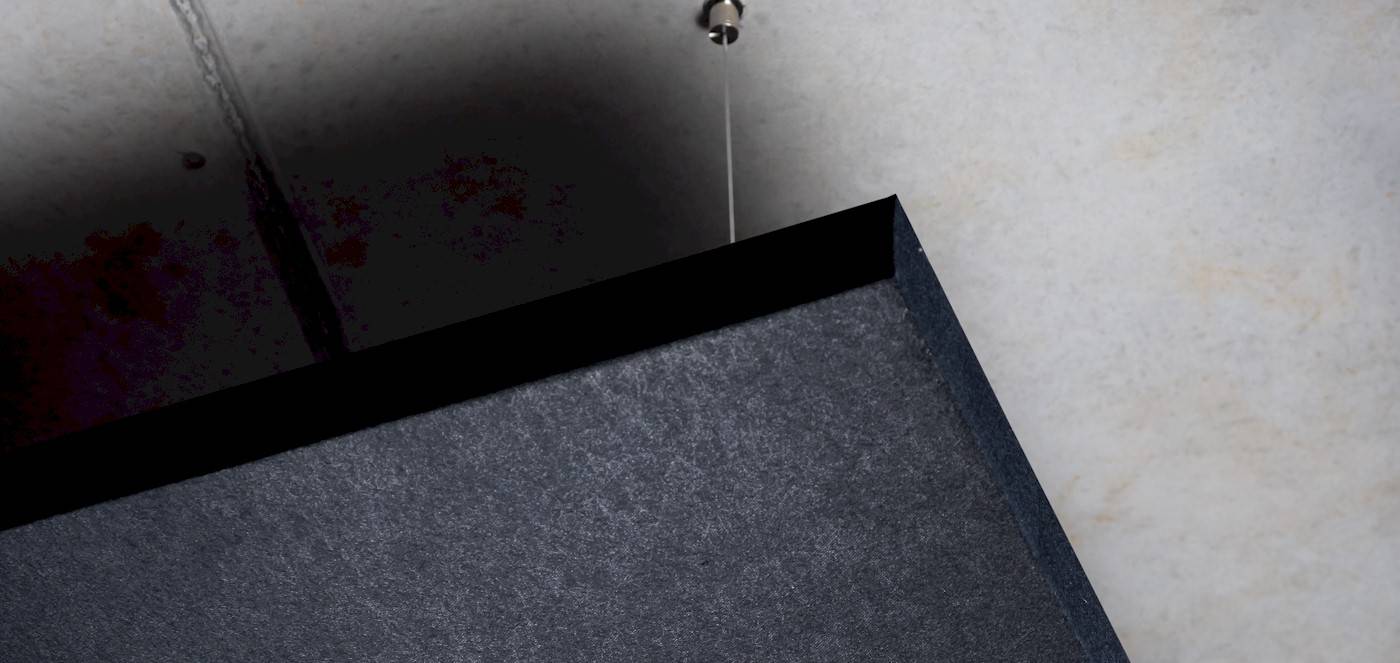

Room Acoustics - sound absorbers: Mute+ board - Sound Absorber

Verified by manufacturer 2 months ago

Lindner Group Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

A range of sound absorber for the ceiling and wall as well.

Jump to:
020 8246 6333 Website

Application

  • Recreation and culture.
  • Workplace.
  • Healthcare.
  • Education.
  • Transport.
  • Industry.
  • Public institutions.
  • Hotels and gastronomy.
  • Public areas.


Description

The classic among sound absorbers:


With MUTE+ board, receive sound absorbers made of high-quality polyester, this not only improves the acoustics in a room, but also provides a sustainable solution.


The sound absorber is available in different colours - but is 100 % recyclable in every version. Customize the sound absorber by changing the dimensions, geometries and other designs such as straight or wavelike baffles, free-form shapes.


Features and benefits:

  • Free of mineral fibre, suitable for people suffering from allergies.
  • Tested for harmful substances according to Oeko-Tex® standard 100.
  • 100% recyclable.

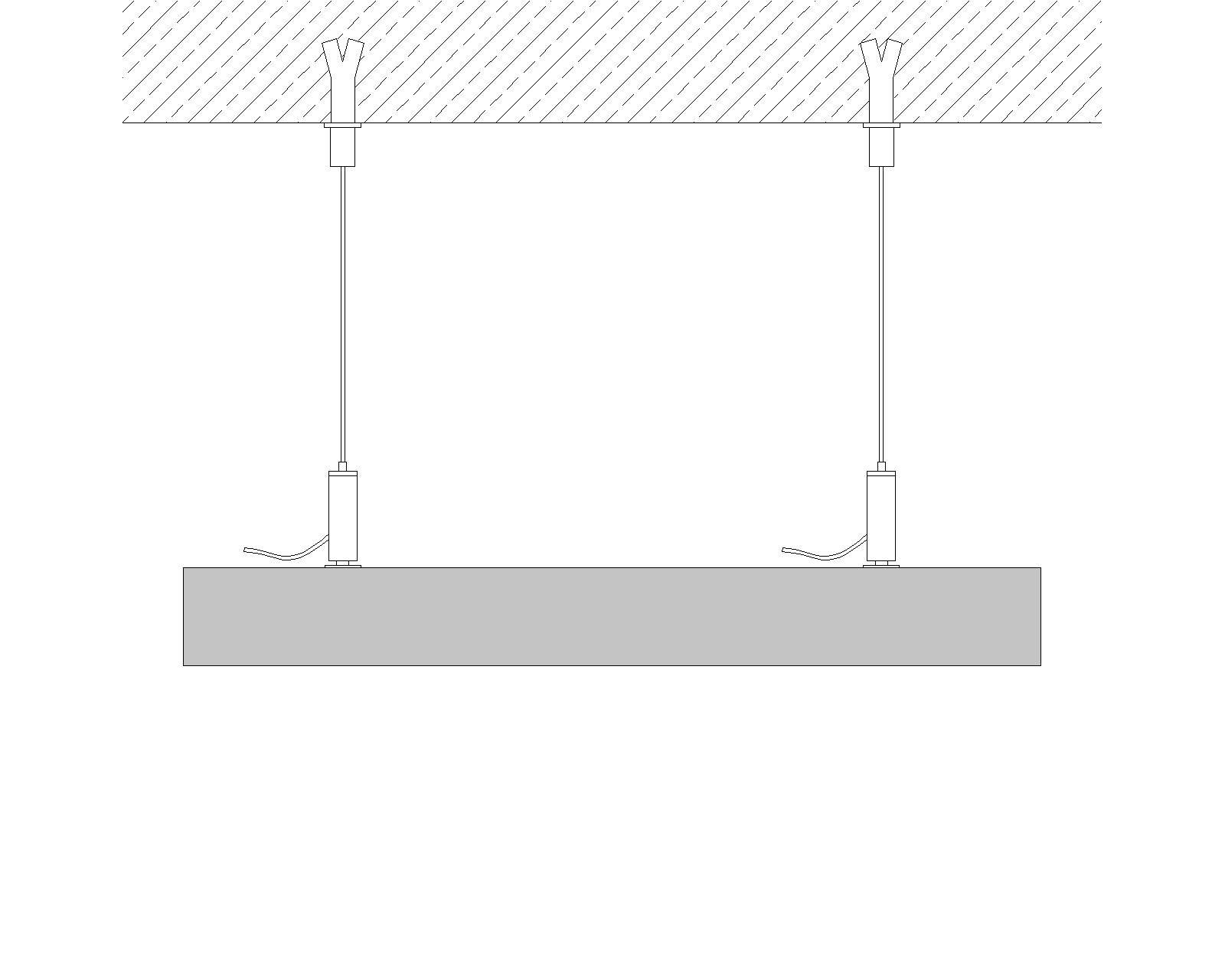

  • Installation on ceilings or partitions in interiors.
  • Sound absorption class: B and A.
  • Individual sizes and shapes possible.
  • Available in 5 colours

General information

Color

White

Black

Grey

Finish

Other

Material

Polyester

Shape

Rectangle

Trapezoid

Circle

Oval

Square

Length

750 mm

1000 mm

1250 mm

1500 mm

Bespoke

Width

750 mm

1000 mm

1250 mm

1500 mm

Bespoke

Height

40 mm

Warranty description

25 year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Flexible.

Application

Ceiling and wall mounting.

Material

Polyester.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A-B to BS EN ISO 11654.

Fire performance

-

Fire resistance

To DIN 4102, B1.

Dimensions

-

Size (length x width)

750 mm.

Guidance for specification option:

Standard dimensions.

1000 mm.

Guidance for specification option:

Standard dimensions.

1250 mm.

Guidance for specification option:

Standard dimensions.

1500 mm.

Guidance for specification option:

Standard dimensions.

Other.

Guidance for specification option:

Individual dimensions.

300—2,000 mm.

Manufacturer guidance

Diameter.

Thickness (overall)

40 mm.

Profile

Geometric profile.

Surface pattern

Solid.

Finish

Material.

Colour

White.

Black.

Grey marbled.

Dark grey marbled.

Night grey marbled.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Weight

4 kg/m².

Guidance for specification option:

Approximately.

Sound absorption coefficient

To DIN EN ISO 354, 0.80—1.00 αw.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

100%

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 TUV Management Services

EnMS ISO 50001

EnMS ISO 50001

ISO 50001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ENVIRONMENTAL PRODUCT DECLARATION

Literature

MUTE+ board R40

MUTE+ board R40

Case studies

Friedrichscarrée ( FCS ) - Stuttgart, Germany

Friedrichscarrée ( FCS ) - Stuttgart, Germany

70 ST MARY AXE - Metal ceilings, Luminous ceilings, BREEAM

70 ST MARY AXE - Metal ceilings, Luminous ceilings, BREEAM
