Description

The roofline range is a fully integrated bargeboard, fascia and soffit system with a wide variety of components and trims for new build, replacement or refurbishment projects. The system includes provision for ventilation to meet the current Building Regulation requirements. The products are complimentary to Swish Cellular PVC claddings.

The Cappit Profile is a 9 mm flat-backed refurbishment fascias or bargeboards for overcapping existing sound timber backing. A square return leg accommodates lay-on soffits. This board is intended as a decorative profile must not bear the weight of the eaves course of tiles or the guttering system without the support of backing timber.

General information
Finish

Smooth satin

Material

Cellular PVC-U core with impact modified PVC-U skin and containing no lead or cadmium

Uniclass 2015
Plastics and composite material trim boards (Pr_35_90_28_62)Primary
Specification data - Plastics and composite material trim boards
Product Reference

Roofline range

Profile

Cappit

Ogee Cappit

Depth

150 mm

175 mm

200 mm

225 mm

250 mm

300 mm

Cappit profile only.

400 mm

Cappit profile only.

405 mm

Double ended board.

605 mm

Cappit profile only.

Colour

White

Conker Brown

Standard product features

All Swish cellular profiles are manufactured using a tin stabiliser formulation designed to overcome the environmental and discolouration problems that can be associated with some lead stabilised formulations.

Material:

Cellular PVC-U core with impact modified PVC-U skin and containing no lead or cadmium.

Finish:

Smooth satin.

Product Options

Cappit Profiles

Available in 2 styles and are used for fascia and bargeboard applications. The profiles are not self supporting and should be fixed to sound timber or suitable backboards.

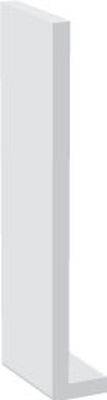

Standard Cappit

  • A flat backed profile, 9 mm thick, with a 35 mm square base.
  • Available in 8 standard depths: 150 mm, 175 mm, 200 mm, 225 mm, 250 mm, 300 mm, 400 mm and 605 mm, and one double ended board 405 mm.

Ogee Cappit

  • A 9 mm thick fascia and bargeboard with an Ogee detail for refurbishing or overcapping sound existing timber components.
  • Ribs on the reverse of the board to allow the profile to stand off the backing board which promotes the movement of air.
  • Ogee detailing matches the Swish Ogee Jumbo fascia.
  • Available in 5 standard depths: 150 mm, 175 mm, 200 mm, 225 mm and 250 mm, and one double ended board: 405 mm.
