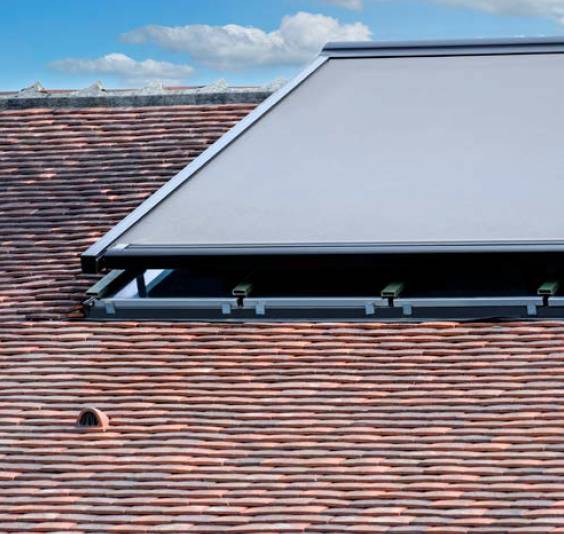

Rooflights External Roller Blind Topfix®
Verified by manufacturer 23 days ago
Topfix®
Topfix®
Horizontal fabric sun protection.
Application
- Horizontal applications.
- Suitable for homes, hospitals, nursing homes, offices, schools, atriums and shopping centres.
Description
Horizontal fabric sun protection with integrated tensioning. Topfix® provides fabric tension, even in extreme wind load up to 120 km/h. Available with a range of variants to suit specific project requirements.
Features and benefits:
- Windproof sun protection.
- Dimensions up to 12 m².
- Wind guarantee up to 120 km/h.
- Revolutionary tensioning.
- Compact head box dimensions.
- Various installation options.
- Topfix® Max - sun protection for large dimensions up to 30 m²
- Integrated water drainage with Topfix® Max Freestanding.
- Bi-colour option.
General information
Color | Beige Black Blue Bronze Copper |
Finish | Gloss Matt Textured Anodized |
Material | Fabric Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year Guidance for specification option: General warranty. Seven year Guidance for specification option: Fixscreen warranty. Ten year Guidance for specification option: Coating warranty. |
Uniclass | |
CAWS | N10/70 Blinds L10/680 Solar shading system L10/59 Solar shading system N10/240 Blinds |
Product range |
Specification data - External roller blinds
Standards | To BS EN 13561. |
Position | Headbox at the top.Headbox at the bottom (indoor application).Head box sideways.Manufacturer guidance
|
Dimensions (minimum width x depth) | Guidance for specification option: Insert requirements.
|
Headrail | |
Material | Extruded aluminium. |
Colour | Guidance for specification option: Insert requirements.
|
Blinds | |
Material | Fibre glass fabric.Polyester fabric Soltis.Tuffscreen.Crystal fabric.Manufacturer guidanceConsult manufacturer's literature for details and insert requirements. |
Blackout function | Required.Not required. |
Finish | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Pattern | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Tube | |
Material | Extruded aluminium. |
Tube covers | |
Material | Powder coated extruded aluminium. |
Colour | Guidance for specification option: Insert requirements.
|
Operation | Renson motor, mechanical 24 V.Somfy mechanic motor.Somfy IO radio-controlled motor. |
Wind resistance | To BS EN 13561, class 3.Guidance for specification option:
|
Total solar energy transmission (maximum) | To BS EN 14501. |
Accessories | Not required.Additional cable length. |
Literature
Topfix®
