Roof Access Hatch RHT with Scissor Stair

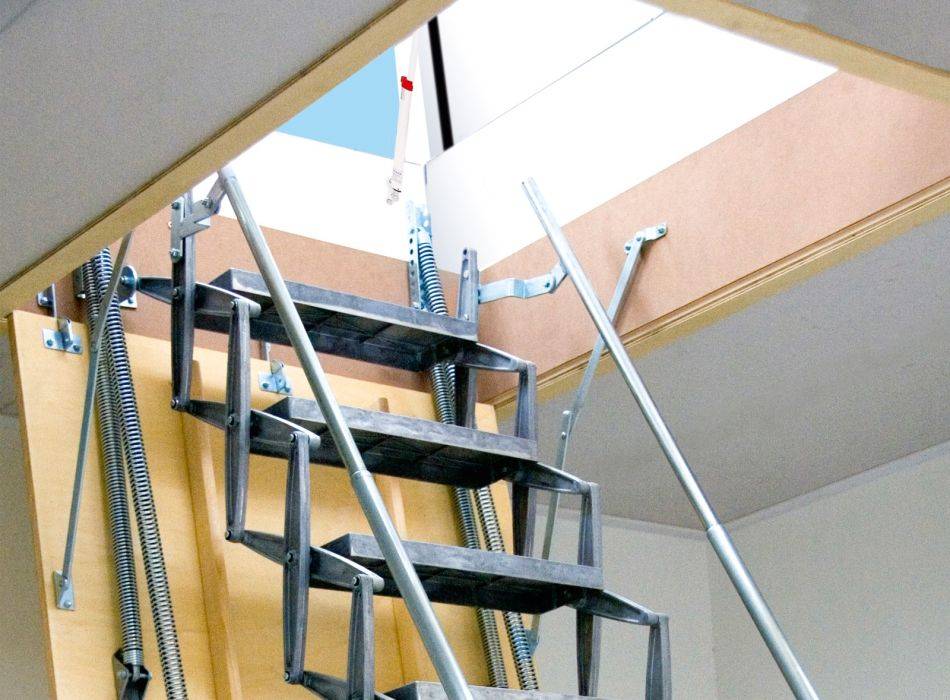

Name: Roof Access Hatch RHT with Scissor Stair
Brand: Gorter Roof Hatches Ltd
SKU: cu7RKepskEU95M35AQPpjE

Verified by manufacturer 5 days ago

Gorter Roof Hatches Ltd

Roof hatches with scissor stairs providing practical and safe access to flat roofs for a range of applications.

+44(0)121 312 1999 Website

Application

The Small+ scissor stair model is suitable for use in small spaces with a maximum ceiling height of 3000 mm. The scissor stair folds out to 500 mm, while the roof hatch has a compact clearance of 700 x 1000 mm.
The Large Electric scissor stair model provides generous access to the roof and is available for ceiling heights of maximum 3000 or 3500 mm. The roof hatch has an opening of 700 x 1400 mm.
The Large+ scissor stair model provides generous access to the roof and is available for ceiling heights of maximum 3000 or 3500 mm. The roof hatch has an opening of 700 x 1400 mm.
The Large fireproof scissor stair model provides generous access to the roof and is available for ceiling heights of maximum 3000. The roof hatch has an opening of 700 x 1400 mm.
The XL+ scissor stair model was developed in part to reach higher lift machine rooms and utility rooms, and is supplied with an Aboma certificate for access to (lift) machine rooms in accordance with EN-ISO 14122-3. The 480-mm wide stair treads and larger roof hatch with an opening of 1000 x 1500 mm simplify taking materials to upper areas/ roof.
Small+, Large+ and XL+ can be supplemented with bridging steps.
Can be installed on flat roofs with a maximum slope of 30°.

Description

Roof hatches with scissor stairs providing practical and safe access to flat roofs for a range of applications.

Roof hatches combined with a scissor stair are particularly suitable for applications where occasional but also frequent access to the roof is required. When the scissor stair is folded, you always have free space under the hatch.

Roof hatches can be installed on flat roofs with a maximum slope of 30°.

Features and benefits:

CE (ETA-15/0338), TÜV NORD and Aboma certified, with fully thermally broken curb and cover.
Scissor stair with Aboma quality mark.
Roof hatch safe operation with one hand.
Safe grip all the way to the roof.
Ten-year warranty on the roof hatch, one-year on climbing devices.
Optional electric control of roof hatch.
High-quality aluminium construction of hatch and scissor stair.
Euro cylinder lock with indoor and outdoor operation.
Burglar-proof and sound-proof roof hatch.
Available as an integrated scissor stair unit (RHTS; specified separately).

Also available as a standard model (hatch only), special sizes (hatch only) with fixed stairs, glazed or fire rated (all specified separately).

General information

Color	Grey Guidance for specification option: Roof hatch, external. White Guidance for specification option: Roof hatch, internal, standard. Black Guidance for specification option: Roof hatch, internal. Silver Guidance for specification option: Scissor stair.
Finish	Powder-coated Guidance for specification option: Roof hatch. Anodized Guidance for specification option: Scissor stair.
Material	Aluminium Guidance for specification option: Scissor stair. Other Guidance for specification option: Roof hatch.
Shape	Rectangle
Length	1000 mm 1400 mm 1500 mm Manufacturer guidance Roof hatch, opening.
Width	700 mm 1000 mm Manufacturer guidance Roof hatch, opening.
Height	Bespoke Guidance for specification option: Varies according to ladder size. 376 mm Guidance for specification option: Roof hatch in closed position.
Warranty description	Ten year Guidance for specification option: Roof hatch. One year Guidance for specification option: Climbing device.

Uniclass	Pr_30_59_36_74 Roof hatchesPrimary
CAWS	L20/60 Doors L20/630 Hatches

SKU Code	RHT7010, RHT7014, RHT1015

Sustainability data

Country of product manufacture	Netherlands
Material	Aluminium Guidance for specification option: Scissor stair. Other Guidance for specification option: Roof hatch.
