RonaDeck Resin Bound Surfacing - Permeable Paving
Verified by manufacturer 4 months ago
Maximum aggregate size: 6 mm
Maximum aggregate size: 6 mm
Resin surfacing with aggregate filler.
Application
- Footpaths, playgrounds, pool and pond surrounds.
- Patios, terraces and water features.
- Car parks.
- Driveways.
- Access roads.
Description
RonaDeck Resin Bound Surfacing is a UV stable, resin bound, aggregate surface for pedestrian and vehicular traffic. The surfaces are decorative and functional, seamless and slightly flexible. Edgings created from brick, stone, timber or steel should be installed to retain and protect the resin bound surfacing.
Features and benefits:
- Open matrix allows water drainage through base, eliminating water ponding and allows water to drain to planted areas or land drains.
- May be applied to SuDS compliant bases and sub-bases, reducing the impact of urban development on flood risk and allowing water to flow into water courses.
- Two component polyurethane hybrid resin, which binds a range of selected decorative kiln dried aggregates.
- Provides a natural appearance, porous surface, which is strong enough for foot and light vehicle traffic.
- UV-stable, non-yellowing resin.
- Recycled aggregates available.
- Highly permeable.
- Slip resistant.
- No primer required.
System constituents:
- RonaDeck Resin Bound Surfacing Resin.
- RonaDeck Resin Bound Surfacing Aggregate.
- RonaDeck Resin Bound Surfacing Anti Slip Aggregate.
General information
Color | Beige Black Bronze Brown Gold Manufacturer guidanceMore colour variations available. |
Material | Polyurethane (PUR) Aggregate |
Uniclass | |
CAWS | Q23/20 Resin bound aggregate surfaces Q23/180 Bonded chippings for vehicular areas Q23/190 Bonded chippings for pedestrian areas Q26/260 Resin bound stone aggregate surfacing Q23/225 Proprietary resin bound chippings |
Specification data - Resin-bound aggregate overlay systems
Surface course | |
Binder | Polyurethane hybrid resin binder. |
Chippings | Bonded surfacing decorative kiln-dried aggregates. |
Blend | Autumn Forest. Aztec Gold. Harvest Crunch. Maple Glow. Midnight. |
Minimum thickness | 15 mm for foot traffic and light vehicle traffic, 18 mm for vehicle traffic. Guidance for specification option: Minimum surfacing depth. |
Setting time | Foot traffic: 4 hours, Light vehicle traffic: 1–2 days. Manufacturer guidanceAt 20°C. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyurethane (PUR) Aggregate |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Literature

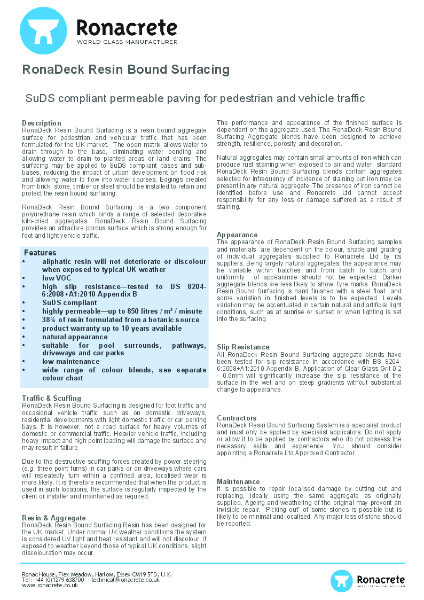

RonaDeck Resin Bound Surfacing TDS
Case studies
Tedworth House - Homes for Heroes
British Racing School
