ROCKWOOL® ProRox SL 960UK (RW5)
ROCKWOOL® ProRox slabs are high quality resin bonded and can be used for thermal, acoustic and fire insulation.
Water repellent and rot proof rigid, semi rigid and flexible Stone wool insulation slabs.

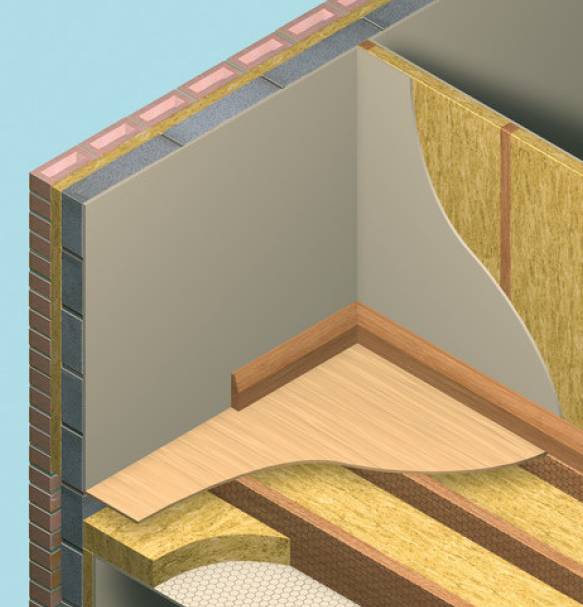

Suitable for installation in floor, wall and roof constructions, around heating and cistern tanks; offering excellent thermal, acoustic and fire insulation. Available as plain (un-faced) slabs or with aluminium foil, black or white glass fleeces applied to one side.
Rockwool ProRox Slabs are CE and Key marked in accordance with BS EN 13162.
Non-combustible, achieving a classification of A1 in accordance with BS EN 13501-1.
Rockwool insulation products do not contain blowing agents with an ozone depletion potential (ODP) or global warming potential (GWP), are CFC-HCFC-HFC free and 97% recyclable. They will not react with metal components or cause loss of plasticiser from PVC cables and pipes.
| Material | Mineral wool |
| Shape | Rectangle |
| Size | 1000 × 600 mm |
| Uniclass 2015 | |
| CAWS | H31/254 Acoustic insulation H43/234 Gutters H51/110 Cladding to K10/215 Suspended ceiling system K10/50 Suspended ceiling on metal framing K11/795 Wall lining on metal framing K11/796 Metal stud partition system K20/150 Battened timber board floating floor K20/20 Battened timber board floating floor K21/120 Battened wood flooring K21/130 Battened wood floating floor K21/140 Battened wood laminate flooring K40/10 Suspended ceilings K40/105 Suspended ceiling system K40/285 Insulation K40/55 Insulation K45/13 Suspended ceiling system alterations P10/140 Insulation fitted between rafters P10/15 Insulation fitted between rafters P10/170 Insulation to loft access hatches P10/180 Insulation to water cisterns P10/190 Insulation fitted between studs P10/20 Insulation to loft access hatches P10/217 Insulation slabs fixed to backing wall P10/240 Insulation fitted between floor joists P10/25 Insulation to water cisterns P10/250 Insulation supported between floor joists P10/40 Insulation fitted between studs P10/42 Mineral wool insulation slabs fixed to backing wall P10/45 Insulation laid between floor joists P10/50 Insulation supported between joists T90/390 Feed and expansion cisterns T90/47 Feed and expansion cisterns |
| Product Reference | Rockwool ProRox SL 920Also known as Rockwool RWA45. Rockwool ProRox SL 930Also known as Rockwool RW3. Rockwool ProRox SL 950Also known as Rockwool RW4. Rockwool ProRox SL 960Also known as Rockwool RW5. Rockwool ProRox SL 980Also known as Rockwool RW6. |
| Thickness | 253040506075100 |
| Facings | Plain (un-faced)Aluminium foil faceWhite glass fleece facedBlack glass fleece faced |
| Standard product features | Slab size: Plain (un-faced):1200 x 600mm, Faced: 1000 x 600 mm. |
| Product Options | Density:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 3 | 1.3 |
 Vectorworks | - | 1.0 | |
 AECOsim | - | 1.0 | |
 ARCHICAD | - | 1.0 | |
 Revit | Revit 2016 | 4 | 2.0 |
