ROCKWOOL® Insulation Slabs – RWA45, RW3, RW4 and RW5
Verified by manufacturer 1 month ago

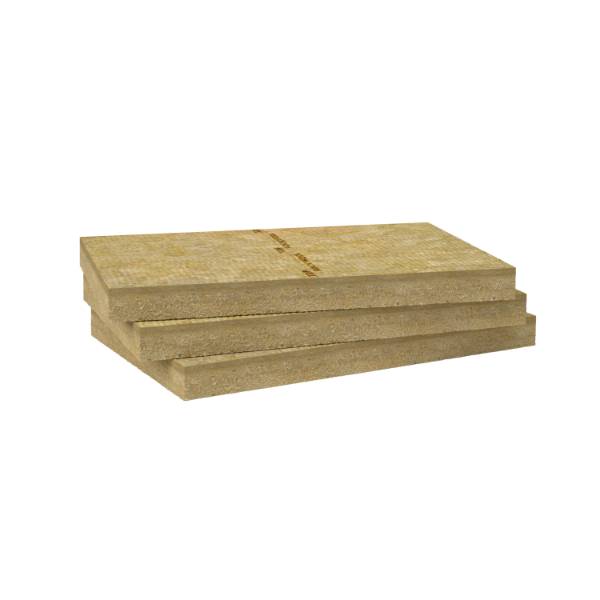

ROCKWOOL RWA45, unfaced - 600 x 1200 x 25 mm
ROCKWOOL RWA45, unfaced - 600 x 1200 x 25 mm
Stone wool insulation slabs or general building applications.
Application
A stone wool insulation for general building applications.
Description
General building slabs designed for use as acoustic, thermal and fire protection of walls, ceilings, floors and roofs. The 45–140 kg/m³ slabs are available in range of thicknesses and a variety of facings are available on request, including black or white tissue, and aluminium foil, to one or both sides (subject to production compatibility). ROCKWOOL RW Slabs conform to BS EN 13162:2012: Thermal insulation products for buildings. Factory made mineral wool (MW) products.
Features and benefits:
- Euroclass A1 non-combustible.
- Suitable for a wide range of general building applications.
- Available with a number of facing options, including tissue and aluminium foil.
- Thermal, acoustic and fire performance.
- Sustainable and recyclable.
- CE and Key marked in accordance with BS EN 13162:2012 + A1:2015.
Acoustic performance:
ROCKWOOL stone wool products work in two distinct ways to reduce noise, either by impeding the transmission of sound through an element of the structure or by absorption of sound at the surface. The structure of the fibres in ROCKWOOL RW slabs make them suitable for use as a sound absorber.
Water resistance:
ROCKWOOL RW Slabs are highly water repellent and non-hygroscopic.
General information
Color | Yellow |
Material | Stone wool |
Shape | Rectangle |
Length | 1000 mm 1200 mm |
Width | 600 mm |
Height | 25 mm 30 mm 40 mm 50 mm 60 mm |
Uniclass | |
CAWS | P10/10 Loft insulation P10/125 Insulation laid between ceiling ties/ joists P10/50 Insulation supported between joists P10/45 Insulation laid between floor joists P10/42 Mineral wool insulation slabs fixed to backing wall P10/40 Insulation fitted betweenor to the face ofstuds P10/250 Insulation supported between floor joists P10/240 Insulation fitted between floor joists P10/25 Insulation to water cisterns P10/220 Sound insulation within timber framed separating wall P10/20 Insulation to loft access hatches P10/217 Insulation slabs fixed to backing wall P10/190 Insulation fitted between studs P10/170 Insulation to loft access hatches P10/140 Insulation fitted between rafters P10/15 Insulation fitted between rafters P10/135 Insulation laid across ceiling ties/ joists |
Specification data - Mineral wool slab insulation
General requirements | Insulation products generally. |
Standard | To BS EN 13162; ISO 14001. |
Thickness | 25 mm.Guidance for specification option: Standard. |
Facing | Plain (unfaced). |
Edges | Square. |
Density | 45 kg/m³. |
Thermal conductivity (maximum) | 0.035 W/mK. |
Fire performance | Euroclass A1 non-combustible. |
Dimensions | 600 x 1200 mm. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Can be recycled Manufacturer guidanceROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Case studies

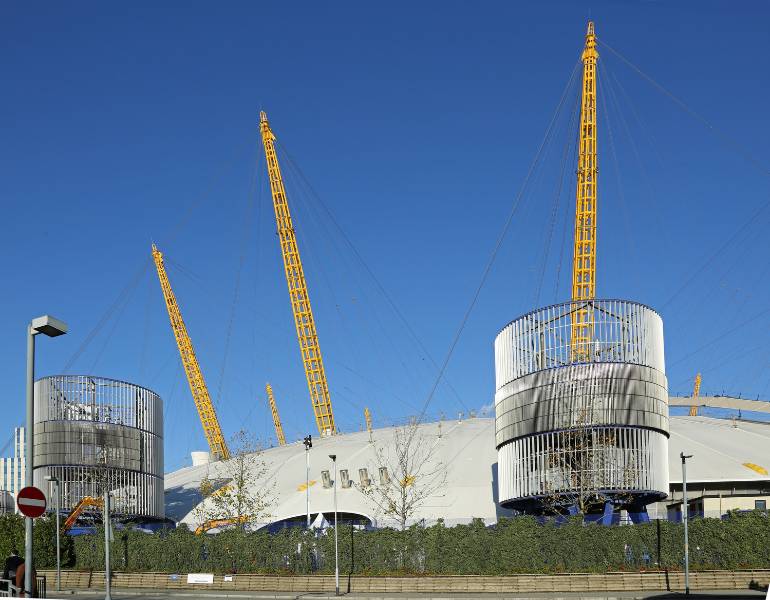

O2 Arena
