ROCKWOOL® HP Partial Fill Cavity Slabs - Insulation
Verified by manufacturer 3 months ago
50 mm
50 mm
Robust, long-lasting protection for masonry cavity walls.
Application
Partial fill insulation for masonry cavity walls.
Description
Did you know...
ROCKWOOL have launched a new cavity wall insulation product with a thermal conductivity of 0.032 W/mK.
NyRock Cavity Slab 032 is the lowest lambda stone wool insulation currently available in the UK and Ireland.
BBA certified for both full and partial fill applications.
Check out its NBS specification for more details.
************************************************************

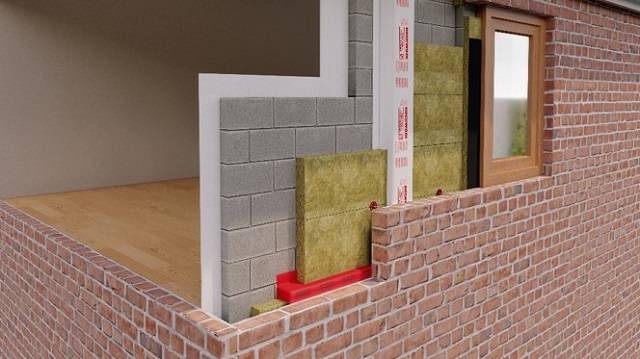

ROCKWOOL® High Performance Partial Fill Cavity Slabs are a robust and durable solution for the thermal insulation of external masonry cavity walls. High Performance Partial Fill slabs further maximize energy efficiency by knitting together when tightly jointed in order to eliminate performance sapping gaps. The slabs are Euroclass A1 non-combustible and water repellent. Made from abundant, renewable volcanic rock, which is recyclable.
Features and benefits:
- Euroclass A1 non-combustible.
- Dual-density slabs (applicable to >90 mm-thick slabs only) - absorb irregularities on the inner leaf and provide a robust outer surface.
- Water repellent - prevents water transmission from outer to inner leaf.
- Superior fit against blockwork.
- Dimensionally stable and robust - preventing slumping and sagging.
- CE marked to BS EN 13162:2012+A1:2015.
- BBA certified (certificate number 93/2884).
U-values:
Approved Document L (2013 edition England and 2014 Wales) – U-value requirements for walls:
- New build dwellings: England 0.25-0.18 W/m²K / Wales 0.21-0.18 W/m²K.
- New build non-domestic: England 0.26-0.22 W/m²K / Wales 0.26-0.22 W/m²K.
- Extensions to dwelling: England 0.28 W/m²K / Wales 0.21 W/m²K.
- Extensions to non-domestic: England 0.28 W/m²K / Wales 0.26 W/m²K.
General information
Material | Mineral wool Guidance for specification option: Mineral wool batts (slabs) to BS EN 13162 or Agrément certified. |
Shape | Rectangle |
Length | 1200 mm |
Width | 455 mm |
Height | 50 mm 80 mm 100 mm 120 mm 150 mm |
Uniclass | |
CAWS | F30/12 Partial fill cavity insulation F30/155 Partial fill cavity insulation |
Specification data - Mineral wool slab insulation
General requirements | Insulation products generally. |
Standard | To BS EN 13162; ISO 14001. |
Thickness | 50 mm. |
Edges | Square. |
Thermal conductivity (maximum) | 0.034 W/m·K. |
Fire performance | To BS EN 13501-1, Class A1.Guidance for specification option: No combustible. |
Size: | 1200 x 455 mm. Guidance for specification option: Length x width. |
Material: | Mineral wool batts. Guidance for specification option: To BS EN 13162 or Agrément certified. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Can be recycled Manufacturer guidanceROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
