Rockfon® MediCare® Air - High Performance Ceiling Tile

Verified by manufacturer 2 months ago

MediCareAir A24 System T24 A/EECR - 1200 x 600 x 25 mm

Rockfon Variant:
Third party certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

High performance ceiling tile for use in healthcare environments where pressure differentials are required (HTM 60 compliant).

Jump to:
BOS
+44 (0)208 2227457 Website

Application

Suitable for use in specialized healthcare environments where differential air pressure is required to prevent infection from spreading, including:

  • Surgeries;
  • Recovery rooms;
  • Intensive care;
  • Operating theatres (client approval required).


Consult manufacturer for details on recommended installation systems.


Rockfon recommends the addition of closed cell neoprene foam tape on the grid system or the use of gasket grid to improve performance in areas where air pressure requirements are more stringent.

Description

Stone wool, micro-textured tile designed for use in pressurized healthcare environments.


Features and benefits:

  • Class B sound absorption and Class A1 fire safety.
  • Attractive to the visible side, with a white, water repellent surface.
  • Enhanced durability and dirt resistance.
  • Easy to clean; can be cleaned with vacuum, damp cloth, and dry steam cleaning.
  • Hygienic; stone wool provides no sustenance to micro-organisms. This product adheres to microbiological class M1, fulfilling the requirements of Zone 4 (as defined by defined by NF S 90-351: 2013).
  • Includes sealed edges.
  • Can be fully recycled.
  • Resistant to diluted solutions of ammonia, chlorine, quaternary ammonium and hydrogen peroxide.
  • Does not contribute to the growth of MRSA, and has low particle emissions (ISO Class 3).
  • Manufactured in accordance with EN 13501-2, and compliant to HTM 60.
  • Other configurations may be available – consult manufacturer for details.
  • Rockfon acoustic solutions are Cradle to Cradle Certified® Bronze.


Fire performance:

Some sizes and edge details of Rockfon® MediCare™ Air can be used with various Chicago Metallic grids and Rockfon systems to create a 30 minutes fire protecting ceiling in accordance with BS 476 Part 21 and Part 23. They can also be used to create a 30 minutes fire protecting membrane ceiling (integrity only) in accordance with BS 476 Part 22 – consult manufacturer for details.


Humidity resistance and dimensional stability:

  • Dimensionally stable, even at humidity levels of up to 100% RH.
  • No visible deflection in high humidity.


Light reflection:

85%.


Demounting:

Rockfon tiles with A edges can be demounted.


Air pressure:

Due to its high performance membrane and sealed edges, combined with HDC2 clips (8 clips per 600 x 600 mm tile), it achieves an air leakage rate of less than 0.5m³/h/m²/Pa under a pressure range of 5 to 40 Pa.


Emissions:

Awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low VOC emission products.


Compatible edges, grids and systems:

  • A24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 A™ or Chicago Metallic T24 D2890 Click Grid to create Rockfon® System T24 A ECR™.


Cleaning:

  • Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
  • Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine (this may render the surface slightly shinier, so a thorough clean is recommended).

General information

Color

White

Finish

Painted

Material

Stone wool

Shape

Rectangle

Square

Length

600 mm

1200 mm

Width

600 mm

Height

25 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_30_25_22_51 Modular suspended ceiling systems

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/10 Unit/ modular suspended ceilings

K40/265 Infill units

Product range

Modular ceiling tiles

Specification data - Sound attenuator infill units

Third-party certification

Cradle to Cradle Certified® Bronze.

Form

Infill unit.

Rigidity

Rigid.

Application

Ceiling mounting.

Material

Stone wool.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class B (to ISO 11654: 0.8 αw).

Fire performance

-

Reaction to fire

Class A1 (to BS EN 13501-1).

Dimensions

-

Size (length x width)

1200 x 600 mm.

Thickness (overall)

25 mm.

Profile

Geometric profile.

Edges

A24.

Finish

Visible side: micro-textured, white painted, water repellent fleece; rear side: airtight, high performance membrane.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Poland

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.77 kg CO₂ eq/kg

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

33 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

4

IFC
-

4

Third party certifications

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle-to-Cradle Certified Bronze

EPD

EPD

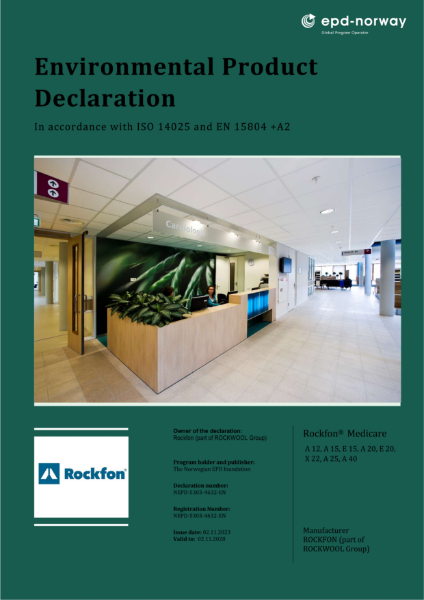

EPD Rockfon Medicare
