Rockfon® Koral™ - Ceiling Tile

Verified by manufacturer 2 months ago

Koral A15 System T15 A,EECR - 600 x 600 x 15 mm

Rockfon Variant:
Third party certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

White, stone wool micro-textured surface ceiling tile with high sound absorption.

Jump to:
BOS
+44 (0)208 2227457 Website

Application

Suitable for use in the following areas:

  • Offices;
  • Industry;
  • Education;
  • Leisure;
  • Retail.

Description

White, stone wool micro-textured surface ceiling tile with high sound absorption.


Features and benefits:

  • Class A sound absorption and Class A1 fire safety (non-combustible).
  • Attractive surface finish.
  • Easy to clean with a vacuum or a damp cloth.
  • Available in semi-concealed and visible grid options.
  • Hygienic stone wool provides no sustenance to micro-organisms, tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96.
  • Can be fully recycled.
  • Manufactured in accordance with BS EN 13964.
  • Other configurations may be available – consult manufacturer for details.
  • Rockfon Koral is Cradle to Cradle Certified® Silver.


Fire performance:

The fire resistant properties of stone wool ensure Rockfon ceiling tiles provide fire protection in construction.


  • Tested and classified in accordance with EN 13501-2 and/ or national norms depending on requirements in national building codes.
  • Some sizes and edge details of Rockfon Koral™ can be used with various Chicago Metallic grids and Rockfon systems to create a 30 and/ or 60 minutes fire protecting ceiling in accordance with BS 476 Part 21 and Part 23. They can also be used to create a 30 minutes fire protecting membrane ceiling (integrity only) in accordance with BS 476 Part 22. Consult manufacturer for details.


Humidity resistance and dimensional stability:

  • Dimensionally stable, even at humidity levels of up to 100% RH.
  • As the humidity inside a building has no influence on Rockfon ceiling tiles, the ceiling can be installed at all temperatures ranging from 0-40ºC. No acclimatisation is necessary.
  • Retains superior properties even in infrequently heated and unheated rooms.
  • Precautions should be taken to avoid condensation risks.
  • In accordance with BS EN 13964, predominantly classified as class 1/C/0N. Certain module sizes are class 2/C/0N.


Light reflection:

To ISO 7724-1: 86%.


Demounting:

Rockfon tiles with A and E edge can be demounted.


Emissions:

Awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low VOC emission products.


Compatible edges, grids and systems:

  • A15: Use with Chicago Metallic T15 2790 Click Grid to create Rockfon® System T15 A™.
  • A24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 A™.
  • E15: Use with Chicago Metallic T15 2790 Click Grid to create Rockfon® System T15 E™.
  • E24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 E™.


Grid colour:

Other colours available from the Rockfon Color-all tile range. Consult manufacturer for details.


Cleaning:

  • Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
  • Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine (this may render the surface slightly shinier, so we recommend cleaning the entire surface evenly).

General information

Color

White

Finish

Micro-textured

Material

Stone wool

Shape

Rectangle

Square

Length

600 mm

1200 mm

Width

600 mm

Height

15 mm

20 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_30_25_22_51 Modular suspended ceiling systems

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/10 Unit/ modular suspended ceilings

K40/265 Infill units

Product range

Modular ceiling tiles

Specification data - Sound attenuator infill units

Third-party certification

Cradle to Cradle Certified® Silver.

Form

Infill unit.

Rigidity

Rigid.

Application

Ceiling mounting.

Material

Stone wool.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A (to ISO 11654: 0.95 αw).

Fire performance

-

Reaction to fire

A1 (to BS EN 13501-1).

Dimensions

-

Size (length x width)

600 x 600 mm.

Thickness (overall)

15 mm.

Profile

Geometric profile.

Edges

A15.

Accessories

Not required.

Rockfon® Rocklux®.

Guidance for specification option:

Sound insulating cap, designed to limit sound transmission; consult manufacturer for details.

Sustainability data

Country of product manufacture

Poland

Material

Stone wool

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.51 kg CO₂ eq/m²

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

3

IFC
-

3

Third party certifications

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle-to-Cradle Certified Silver

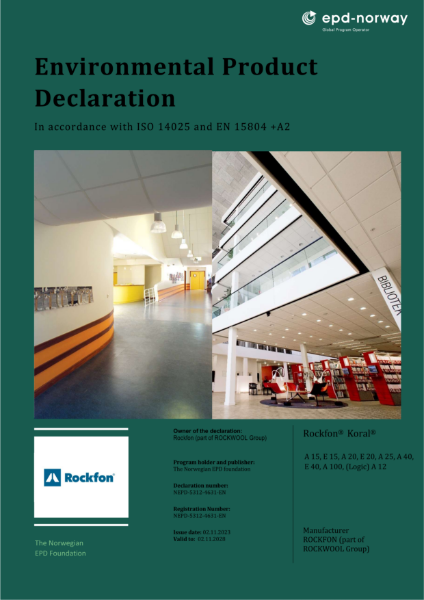

EPD

EPD

EPD Rockfon Koral
