Rocker - See-saw
Verified by manufacturer 2 months ago
Rocker Cat (0-44203-000)
Rocker Cat (0-44203-000)
TUV - Safety and Quality Report
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
Rospa Safety Charity
Certificate type

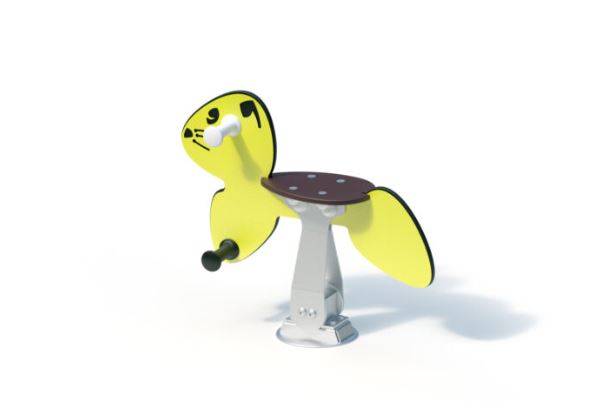

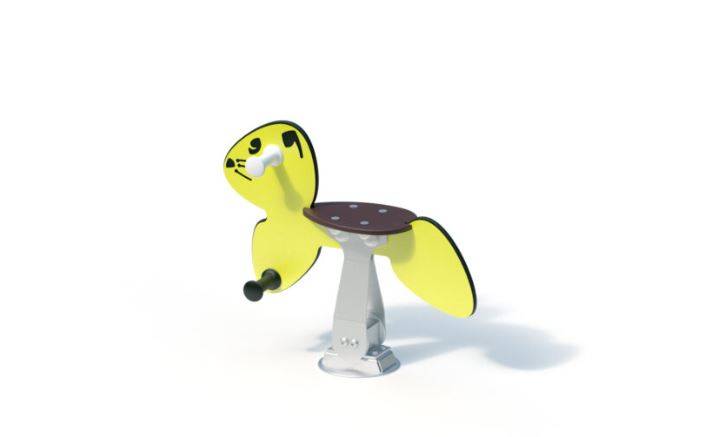

Stainless steel rocker see-saw for public playgrounds. For users aged 2+.
Application
Supervised playground applications.
Description
Stainless steel rocker see-saw for public playgrounds.
Features and benefits:
- Multiple rocker shapes available including cat, dog and dolphin in a number of colours.
- One person installation.
- Delivered as a whole product.
- Appropriate for children aged 1–6 years.
The foundations are made with loose particulate material such as bark, woodchip, gravel or sand. It is essential to cover the base plate of the soil anchor by compressed concrete (0.80 x 0.50 x 0.10 m) using 0.04 m³ of concrete.
General information
Color | Yellow Grey Blue Red |
Material | Stainless steel Rubber High pressure laminate (HPL) Polyamide |
Shape | Other |
Length | 650 mm 700 mm 740 mm 750 mm 800 mm |
Width | 230 mm 240 mm 250 mm |
Height | 500 mm 540 mm 550 mm 570 mm 580 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | Q52/390 Rocking equipment |
Specification data - Traditional rockers
Standards | BS EN 1176-6. |
Style | Traditional rocker. |
Age range | 1–6. |
Number of seats | One. |
Materials | Stainless steel frame, with high-pressure laminate (HPL) 13 mm seat plate.Guidance for specification option:
|
Finish as delivered | |
Colours | City.Classic.Ocean.Aloha.Beach.Coral.Ice palace.Jungle.Mermaid.Nature.Pirate.Safari.Sky.Sunny day.Sun.Sweden.Manufacturer guidanceSee manufacturer's website for individual colour SKU codes and input based on variant chosen. |
Weight | 22 kg. |
Technical characteristics, other | Minimum space length: 2.85 m. |
Dimensions | 650 x 250 x 570 mm. Guidance for specification option: L x W x H. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Stainless steel Rubber High pressure laminate (HPL) Polyamide |
Recyclability | All parts of this product are recyclable |
Expected Life | 30 year |
Third party certifications
TUV - Safety and Quality Report
TUV Seesaws
CHAS
CHAS Advanced
Constructionline Gold
Constructionline Gold
Rospa Safety Charity
Rospa
Literature
API Membership Certificate
Redlynch Catalogue
Rocker Maintenance Instructions
