This product is no longer available

RIW Tilesafe - Waterproofing membrane

RIW Tilesafe - Waterproofing membrane

RIW

Self-adhesive, waterproofing membrane for use beneath tiles.

Jump to:
+44 (0)1344 397777 www.riw.co.uk
Description

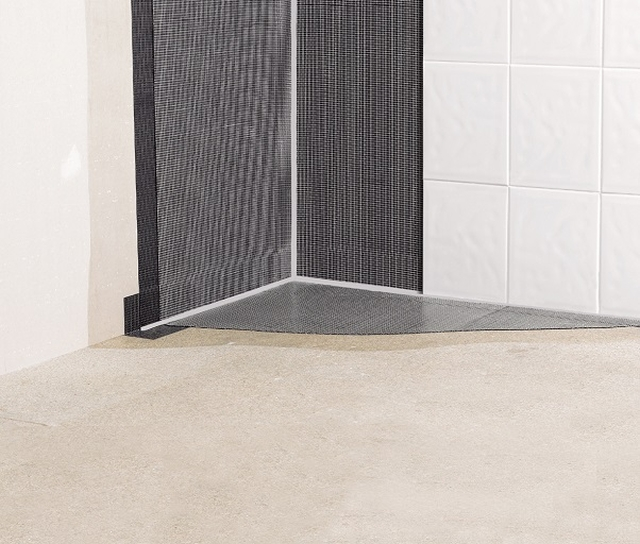

RIW Tilesafe Membrane system has been developed to provide waterproofing beneath ceramic tiles in bath/ shower rooms and other wet areas. RIW Tilesafe is a heavy-duty self-adhesive membrane, consisting of a thick rubber modified bitumen waterproof layer incorporating a woven glass fibre mesh on one face. The product has a brown silicone release paper on the adhesive side and a clear HDPE release film on the upper surface.

Can be used with underfloor heating.

Preparation:

All surfaces to be clean, dry, free from dust, grease and oil, etc. Surfaces must be smooth, sound and flat, with all indentations filled with a suitable filler and all protrusions struck off.

General information
Features

Ideal for apartment buildings and hotels, as well as domestic use; Quick and easy to apply; Will accommodate movement in substrate; Factory controlled thickness

Material

Rubber modified bitumen

WarrantyDescription

RIW Limited’s waterproofing products will, subject to normal service conditions, provide an effective barrier to the transmission of liquid water and water vapour for the life of the building in which they are incorporated., The products must be installed in accordance with RIW written instructions, and following installation must not be subjected to any damage or long-term UV exposure.

Uniclass 2015
Pr_25_57_08_08 Bitumen sheetsPrimary
Specification data - Bitumen sheets
Product Reference

RIW Tilesafe

Primer

RIW Tilesafe Primer

Fixing system

Self-adhesive

Joints

RIW Tilesafe Jointing Compound

RIW Tilesafe Putty

Accessories

None

RIW Tilesafe Reinforcing Strip

ProductInformation

www.riw.co.uk/uploads/downloads/RIW_TILESAFE.pdf

Standard product features

Thickness:

2 mm.

Primer:

All surfaces to be primed with RIW Tilesafe primer.

Joints:

Butt joint: 1–2 mm gap. All butt joints in the membrane, wall-to-wall and wall-to-floor interfaces and at pipe entries to be sealed with RIW Tilesafe Jointing Compound, gun applied. All small gaps or voids around pipe entries, etc., to be filled with RIW Tilesafe Putty prior to application of jointing compound.

Accessories:

RIW Tilesafe Reinforcing Tape (1 mm thick), used to reinforce all wall junctions, butt joints and other detail work in membrane.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
