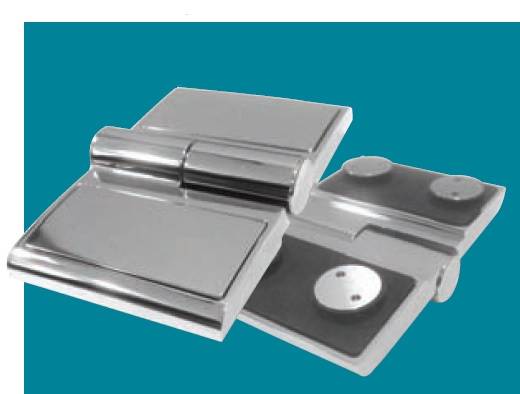

Riviera Series Glass Door Hinges
Description

Solid brass shower door hinges for 8–12 mm-thick glass doors.

Features:

  • Designed for use with tempered or toughened safety glass.
  • Self-closes from approximately 60°.
  • Hinge swings outwards only.
  • Includes gaskets, screws, flush mount glass attachments and spanner tool.

Warranty:

Three years.

General information

Finish

Brushed nickel

Chrome

Features

Designed for use with tempered or toughened safety glass

Self-closes from approximately 60°

Hinge swings outwards only

Includes gaskets, screws, flush mount glass attachments and spanner tool

Uniclass 2015

Pr_40_20_06_79 Shower enclosuresPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

P21/320 Door hinges

P21/8 Door hinges

Specification data - Shower enclosures

Product Reference

R1V044LN

Wall mount, left-hand offset backplate.

R1V044RN

Wall mount, right-hand offset backplate.

R1V180LN

Glass-to-glass, left-hand 180°.

R1V180RN

Glass-to-glass, right-hand 180°.

Finish

Brushed nickel

Chrome

Accessories

None

R1V90

Fixed panel clamp.

R1VSCREWSET

Setting screw set.

Standard product features

Door width (maximum):

  • Two hinges: 711 mm.
  • Three hinges: 813 mm.

Door weight (maximum):

  • Two hinges: 36 kg.
  • Three hinges: 54 kg.
