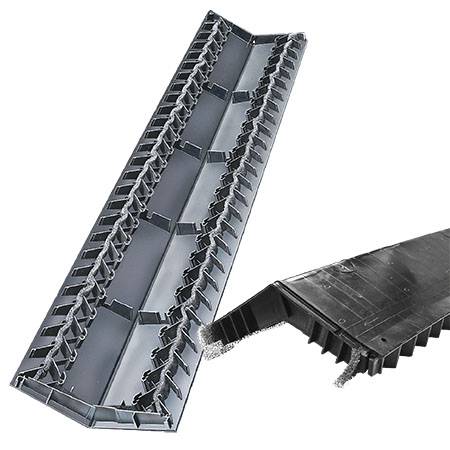

Ridge Master Plus - Ridge ventilator

Verified by manufacturer 4 months ago

Tapco Roofing Products

Dry-fix ridge ventilation system.

Jump to:
BOS
+44 (0)1482 880478 Website

Application

  • Suitable for use with TapcoSlate Classic Ridge/ Hip system.
  • For roof pitches 14 to 45 degrees.

Description

A dry-fix ridge ventilation system that fits underneath the TapcoSlate Classic Ridge/ Hip system.


Features and benefits:

  • A patented added-pitch design reduces the visibility of the vent opening, letting the roof profile take centre stage.
  • Patented internal baffle system engineered to keep blowing rain and snow from getting in.
  • Internal filter blocks out insects, leaves and other debris.
  • Easily adapts to a peak vent or flash vent.
  • Nailing supports and structural ribs make the Ridge Master Plus crushproof.
  • Self-aligning, interlocking ends make it easy to install correctly.
  • Built-in end caps adjust to the roof pitch while the ship-lap design allows for expansion and contraction as temperatures change.
  • Can be joined with Hip Master hip ventilation.
  • 10 000 mm²/m ventilation provision to comply with building regulations for both warm and cold roofs.

General information

Color

Black

Finish

Natural

Material

Polypropylene

Shape

Rectangle

Length

1220 mm

Width

270 mm

Height

35 mm

Warranty description

40 year

Uniclass

Pr_35_90_93_29 Dry fixing ridgesPrimary

CAWS

H61/76 Dry capped ridges

H61/710 Dry capped ridges

H60/700 Dry ventilated ridges

H62/700 Dry ventilated tile ridges

H65/700 Dry ventilated ridges

H65/710 Dry ridges

H67/385 Strip ventilators

H60/75 Dry ventilated ridges

H60/76 Dry ridges

H62/75 Dry ventilated tile ridges

H65/76 Dry ridges

H65/75 Dry ventilated ridges

H67/45 Ventilated hips

Specification data - Dry fixing ridges

Pitch

14-45°.

Life expectancy

50+ years.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

RidgeMaster Plus & HipMaster Fixing Guide

RidgeMaster Plus & HipMaster Fixing Guide

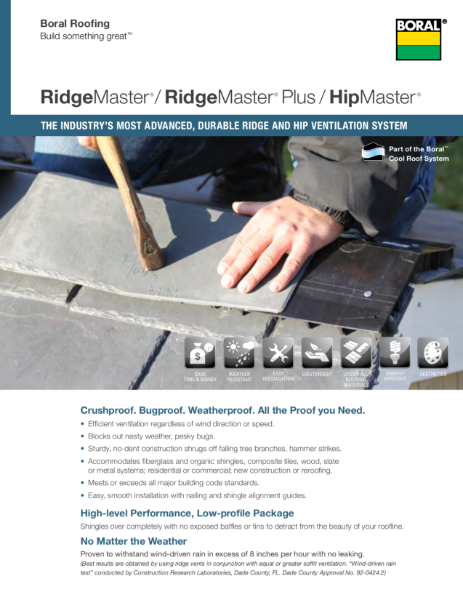

RidgeMaster Plus & HipMaster Brochure

RidgeMaster Plus & HipMaster Brochure
