RIBline Wall Cladding System

Verified by manufacturer 3 months ago

Lindner Group Third party certifications:
  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

A wall cladding solution designed to blend aesthetic appeal, environmental responsibility, and high safety standards.

Jump to:
020 8246 6333 Website

Application

Businesses, recreation and culture: Banks, shopping centres, cinemas and theatres, concert halls, museums, public swimming pools, gymnasiums, stadiums, sales areas, places of assembly.


Education: Library rooms, research rooms, school of higher education, schools, teaching, class and educational rooms.


Work: Common rooms, facilities for meetings, conventions and conferences, stage and studio rooms, office buildings, film and recording studios, data centres, broadcasting rooms, television studios, utility rooms, assembly rooms, administration buildings.


Healthcare: Pharmacies (production), clinics and hospitals, laboratories and research facilities, operating theatres, clean rooms (pharmacy and medical technology).


Transport: Airports, train stations.


Hotels and gastronomy: Restaurants, canteens, hotels and resorts.

Description

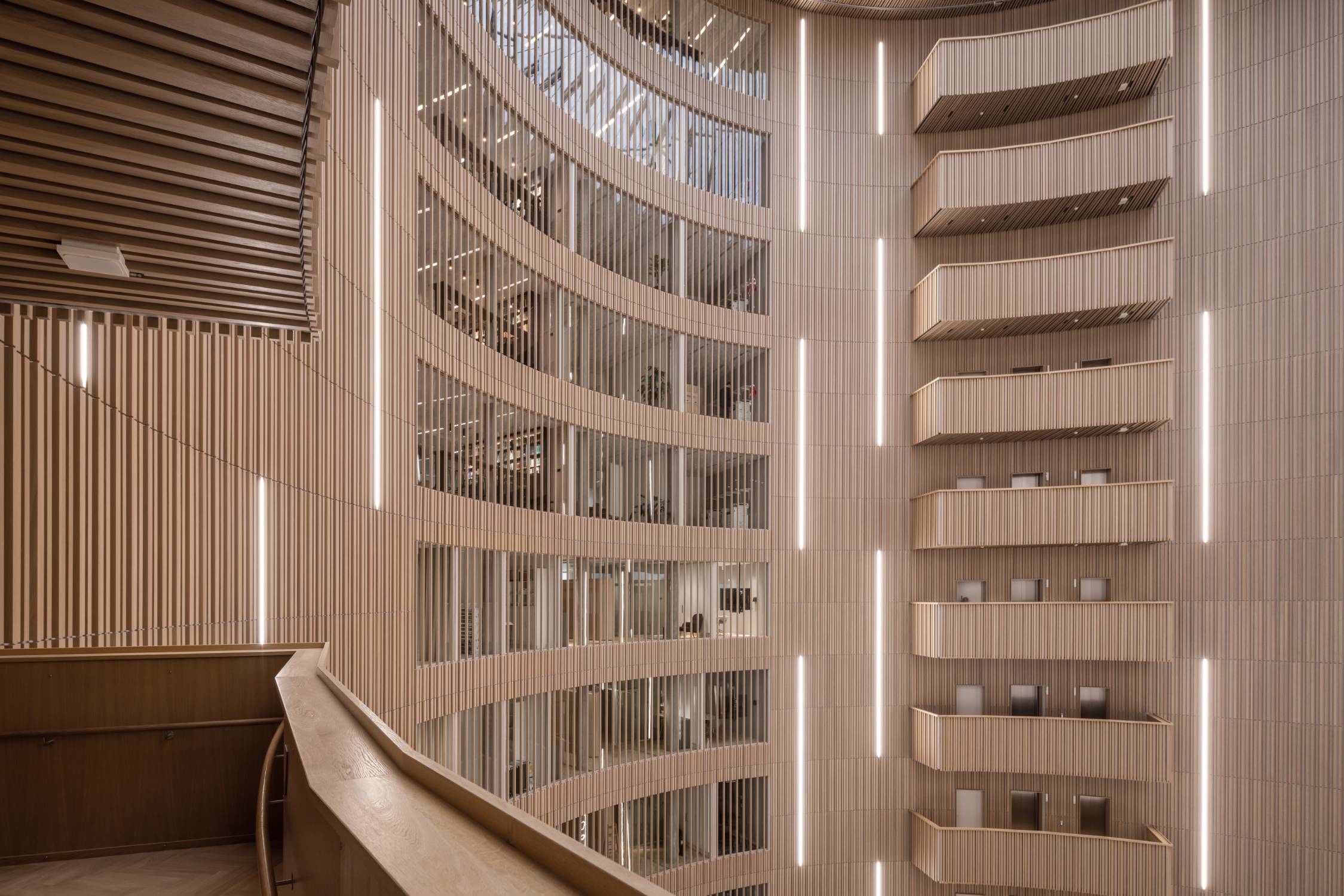

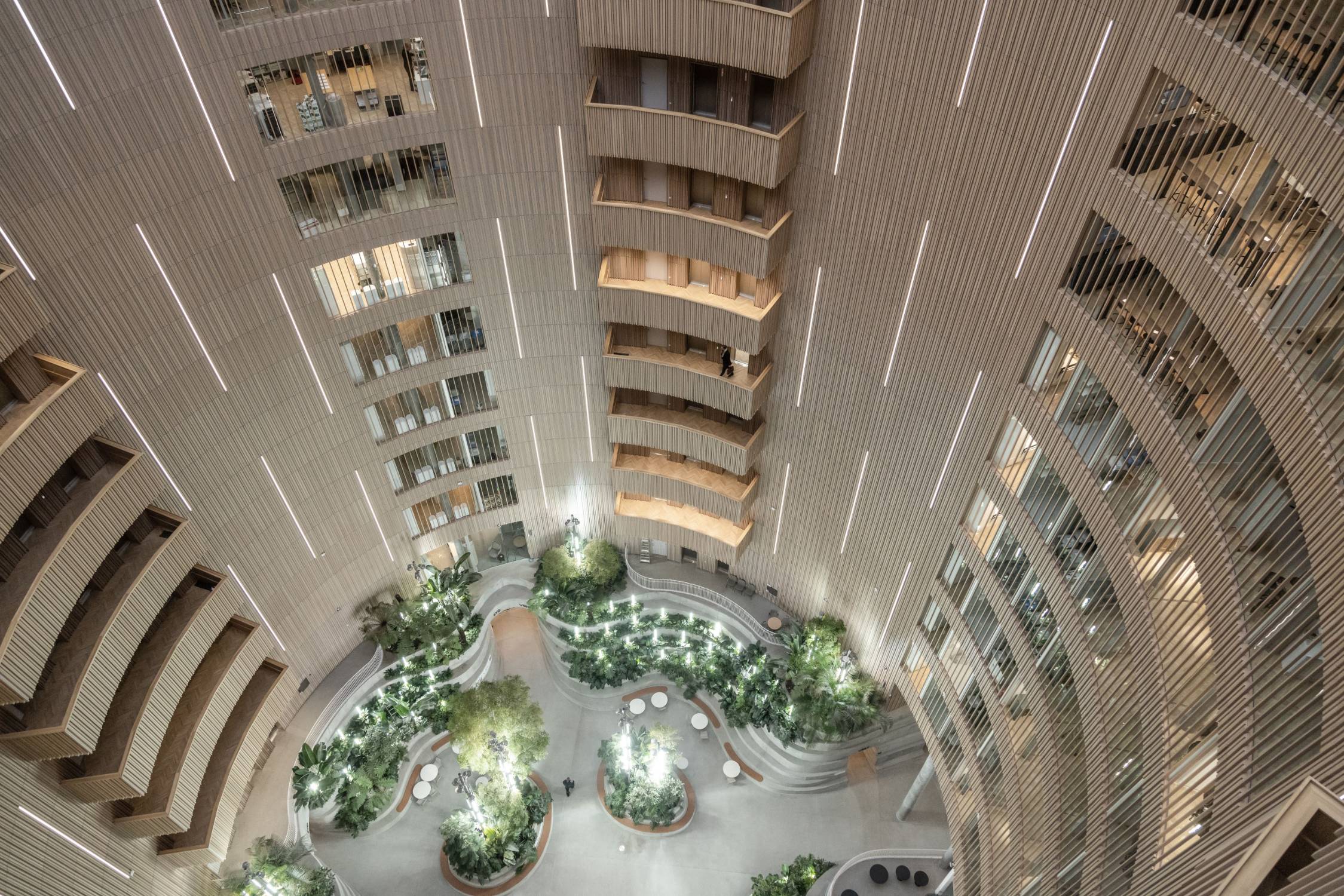

RIBline timber slats is a wall cladding system. The wooden appearance of veneer on the lamella adds texture to the space, while the gypsum core makes them fire retardant.



RIBline’s core is made from recycled gypsum that is 100% recyclable. The wooden veneer on the lamella creates a natural, warm finish. The core is FSC® certified and specifiers are able to decide on FSC® certified wood veneers within the project.


RIBline solos/ panels for unfinished walls provide tailor-made solutions to suit project requirements. Transitions and a hidden substructure ensures a high quality appearance in both residential and commercial properties.


Features and benefits:

  • The lamella/ baffle wall system is available in versatile individual lamella or pre-assembled panels for easy installation.
  • High variety of wooden veneers.
  • 5–10 slats per panel.
  • Stable in dimension and form.
  • Meets IAC and AgBB standards for VOC and formaldehyde emissions.
  • Reaction to fire up to class B-s1, d0.

General information

Color

White

Black

Manufacturer guidance

Gypsum core colour.

Finish

Veneered

Guidance for specification option:

Real wood veneer and engineered veneer.

Laminated

Guidance for specification option:

HPL and CPL.

Manufacturer guidance

Veneered surfaces.

Material

Gypsum

Timber

Steel

Shape

Rectangle

Square

Length

Bespoke

Guidance for specification option:

1000–2500 mm.

Width

22 mm

38 mm

Height

38 mm

54 mm

55 mm

65 mm

Bespoke

Warranty description

25 year

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/120 Wood-veneered panel lining

K13/120 Wood-veneered panel lining

K13/160 Proprietary

K13/160 Proprietary

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Product range

RIBline

Specification data - Acoustic panel lining systems

Battens

Steel substructure.

Acoustic insulation

Tissue.

Guidance for specification option:

  • Weight: 75 g/m².
  • Thickness: 0.3 mm.
  • Colour: Black, white or grey.

Fabric.

Guidance for specification option:

  • Weight: 200 g/m².
  • Thickness: 1.75 mm.
  • Colour: Any RAL colour available. Contact manufacturer for details.

Panelling

-

Type

RIBline solo system.

Guidance for specification option:

  • Length: Up to 2500 mm.
  • Principle geometry: 22 x 38 mm, 38 x 38 mm, 38 x 54 mm, 38 x 65 mm.
  • Horizontal joint width: 15–20 mm.
  • Centre to centre distance: 100 mm, 125 mm, 140 mm.


Customized sizes available upon request. Contact manufacturer for details.

RIBline panel system.

Guidance for specification option:

  • Length: 600–1200 mm.
  • Width: 300–600 mm.
  • Thickness of rib: 18 mm, 22 mm.
  • Width of rib: 38–65 mm.
  • Horizontal joint width: 0–15 mm.
  • Centre to centre distance of ribs on panel: 50–140 mm.


Interpolation among length, width and thickness of rib and width of rib is possible. Contact manufacturer for details.

Surface material

Wood veneers.

Surface finish

Real wood veneer.

Engineered veneer.

High pressure laminate (HPL).

Continuous press laminate (CPL).

Fasteners

Z-hooked.

Guidance for specification option:

Slats fixed directly on the wall.

Core

Recycled gypsum.

Species

Oak.

Guidance for specification option:

Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details.

Pine.

Guidance for specification option:

Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details.

Ash.

Guidance for specification option:

Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details.

Maple.

Guidance for specification option:

Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details.

Spruce.

Guidance for specification option:

Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details.

Show more

Reaction to fire

To BS EN 13501-1, Class B-s1, d0.

Third-party certification

Not required.

FSC® certified.

Guidance for specification option:

Contact manufacturer to determine which veneers are certified FSC® according to requirements.

Slat length

-

Manufacturer guidance

1000–2500 mm. Bespoke lengths can also be specified. Insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Gypsum

Timber

Steel

Manufacturing plant location

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Expected Life

25 year
