RhinoGuard® Static 25/40 - Bollard

Verified by manufacturer over a year ago

RhinoGuard® 25/40 Protective Bollard Stainless Steel

Marshalls Landscape Protection & Street Furniture Variant:

Bollard capable of withstanding a 2.5-tonne vehicle driving at 40mph.

Jump to:
0370 600 2425 Website

Application

Protects against the risk of a hostile vehicle attack in public spaces.

Description

Able to withstand the force of a 2.5-tonne vehicle driving at 40 mph, the Rhinoguard® 25/40 protective bollard system is a suitable choice for protecting public spaces. The steel core is set into reinforced concrete foundations and 1000 mm into the ground - providing the ultimate resistance to vehicular attack.


The 25/40 model has been successfully crash-tested in accordance with the BSI PAS 68 standard, rendering test vehicles immobile on collision. The bollards are not only strong enough to withstand the force of a hostile vehicle but they are also an attractive and cost-effective solution, with a choice of sleeves available to cover the certified steel core.


Sleeve options include brushed stainless steel, steel with a polyester powder coat finish or painted Ferrocast. A range of standard RAL colours are available.


25/40 Static product is capable of withstanding a 2.5 tonne vehicle travelling at 40 mph. The security classification is V/2500/64/90:0.0/0.0.


Features and benefits:

  • Range of sleeve options to complement project design
  • High level of protection for a number of design schemes
  • Can withstand the impact of a 2.5 tonne 4 x 4 utility vehicle travelling at up to 40 mph
  • Crash-tested in accordance with the BSI PAS 68 standard

General information

Color

Finish

Brushed

Galvanized

Powder-coated

Material

Steel

Stainless steel

Shape

Other

Width

168 mm

194 mm

204 mm

Height

1000 mm

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary
Pr_20_76_08_82 Stainless steel bollards

CAWS

Q50/190 Bollards

Q50/31 Bollards

Specification data - Carbon steel bollards

Standard

In accordance with PAS 68.

Guidance for specification option:

15/30.

Dimensions

-

Size and profile

∅168 mm.

Manufacturer guidance

Core diameter.

Height

1000 mm.

Length below ground

500 mm.

Post top

Flat.

Post base

Flat.

Finishes

-

Worked finish

Brushed.

Applied finish

Not applicable.

Colour

Brushed stainless steel.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Bollard Sleeve Topping

Grade 316 stainless steel.

Size

204 mm.

Manufacturer guidance

Sleeve diameter.

Weight

192 kg.

Guidance for specification option:

  • Core weight: 180 kg.
  • Sleeve weight: 12 kg.

Reflective tape

Not required.

Required.

Fixing method

Root fixed.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

HVM Landscape Protection (Hostile Vehicle Mitigation)

HVM Landscape Protection (Hostile Vehicle Mitigation)

Similar products from Marshalls Landscape Protection & Street Furniture

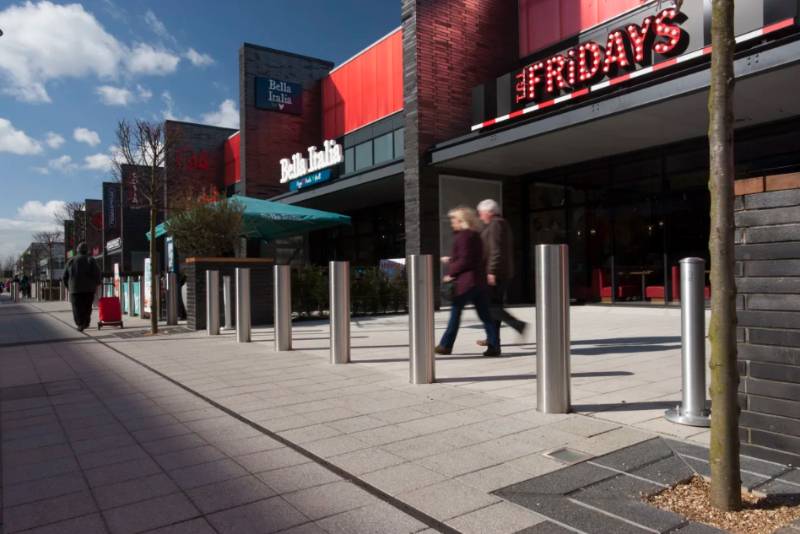

RhinoGuard®  Lift Assist Bollard - Stainless Steel/ Steel Bollard

RhinoGuard® Lift Assist Bollard - Stainless Steel/ Steel Bollard

RhinoGuard®  Shallow Mount 25/40 - Bollard

RhinoGuard® Shallow Mount 25/40 - Bollard

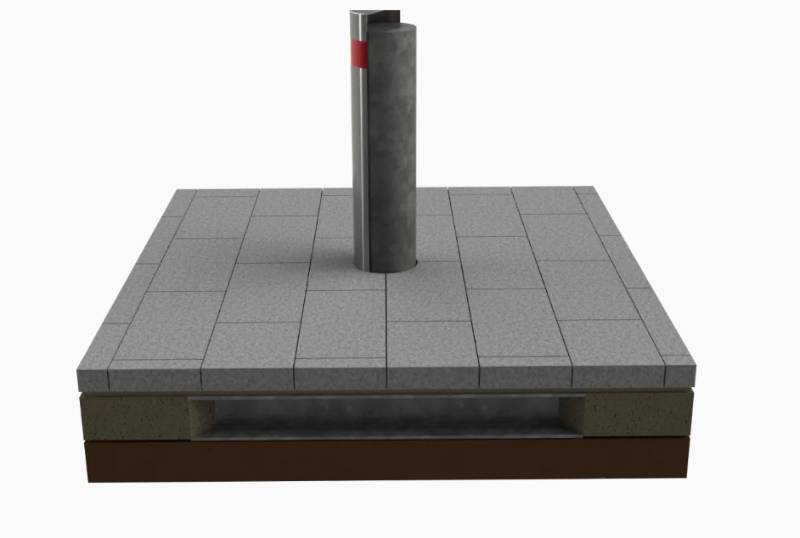

RhinoGuard®  Shallow Mount 72/50 - Bollard

RhinoGuard® Shallow Mount 72/50 - Bollard

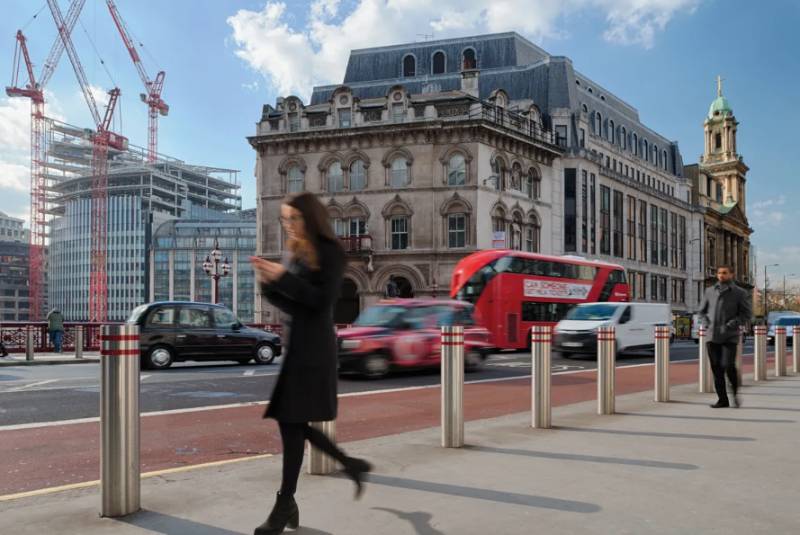

RhinoGuard®  Shallow Mount 75/30 - Bollard

RhinoGuard® Shallow Mount 75/30 - Bollard

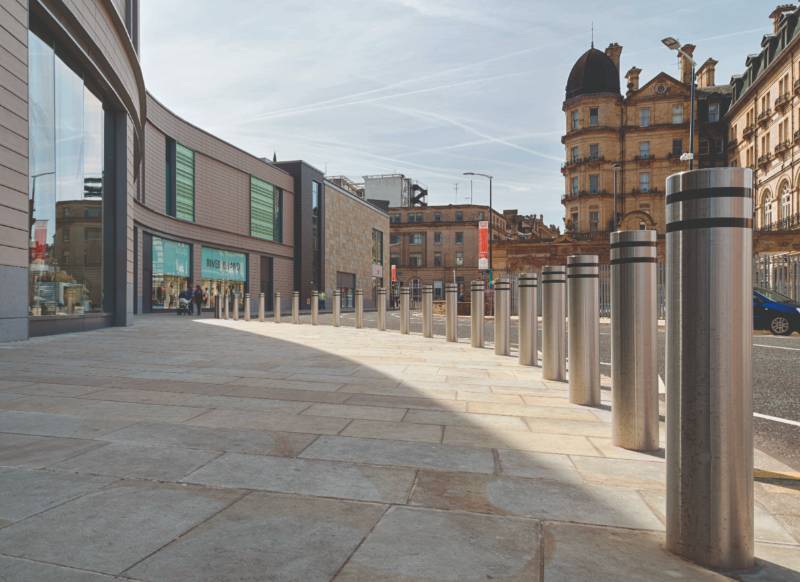

RhinoGuard®  Shallow Mount 75/40 - Bollard

RhinoGuard® Shallow Mount 75/40 - Bollard

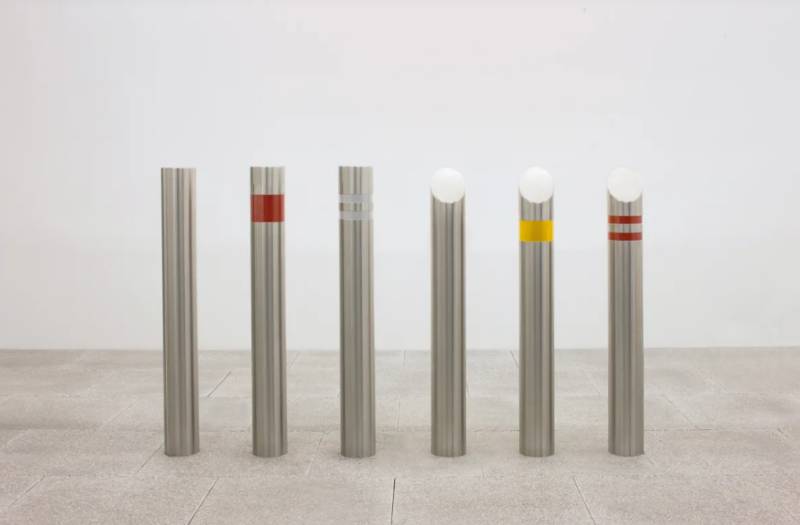

RhinoGuard®  Static 15/30 Bollard - Bollard

RhinoGuard® Static 15/30 Bollard - Bollard

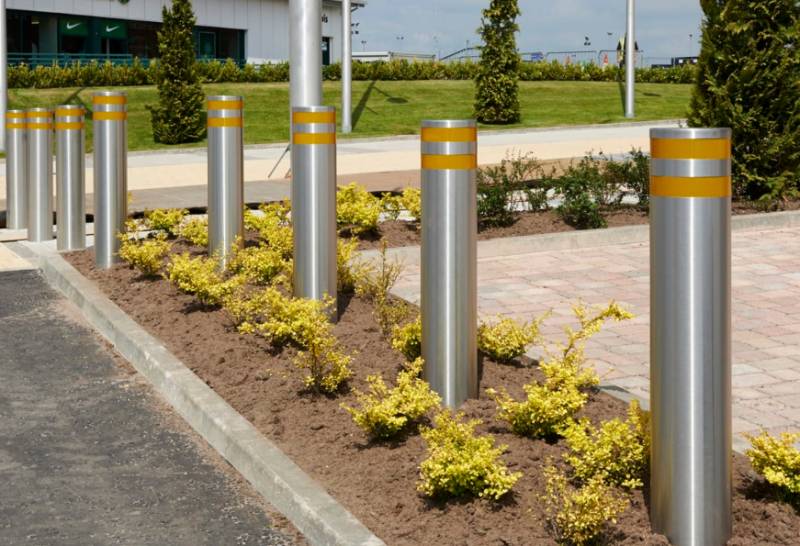

RhinoGuard®  Static 75/40 Bollard - Bollard

RhinoGuard® Static 75/40 Bollard - Bollard

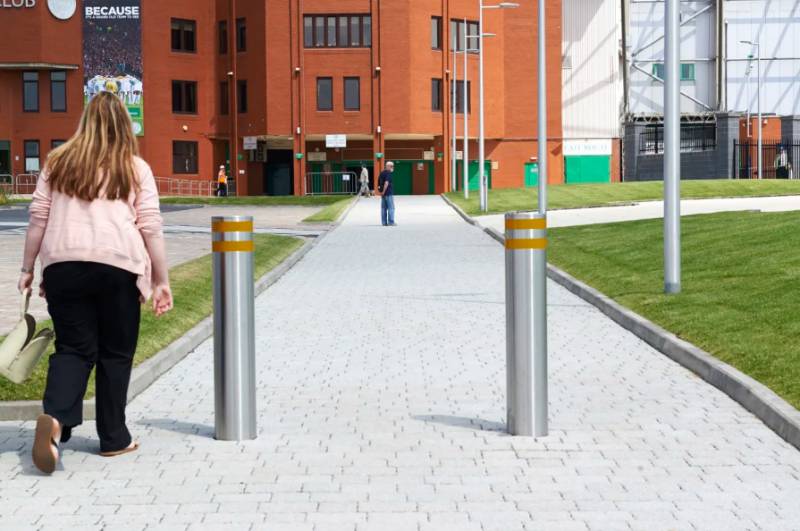

RhinoGuard®  Static 75/50 Bollard - Bollard

RhinoGuard® Static 75/50 Bollard - Bollard

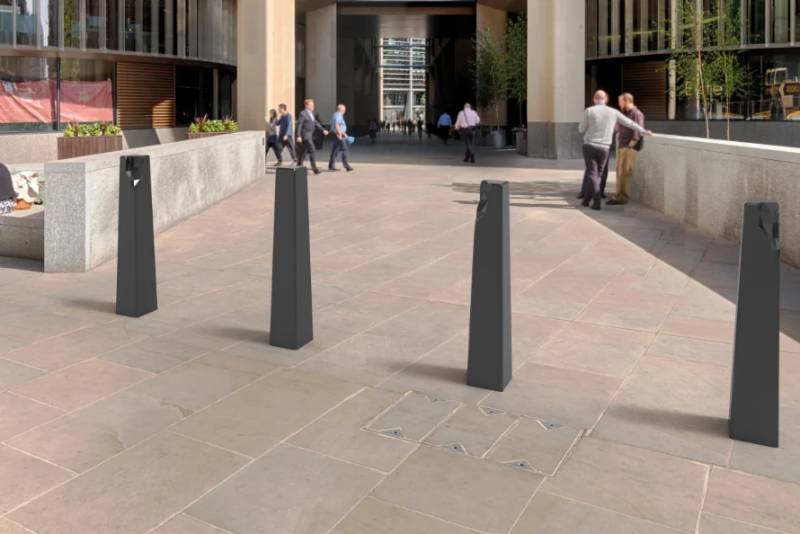

RhinoGuard®  Super Shallow 100 Bollard - Bollard
