RhinoGuard® Static 15/30 Bollard - Bollard

Verified by manufacturer over a year ago

RhinoGuard® 15/30 Protective Bollard Stainless Steel

Marshalls Landscape Protection & Street Furniture Variant:

Bollard capable of withstanding a 1.5 tonne vehicle travelling at 30 mph

Jump to:
0370 600 2425 Website

Application

Protects against the risk of a hostile vehicle attack in public spaces

Description

The Rhinoguard® 15/30 bollard is an innovative product that protects against the risk of a hostile vehicle attack in public spaces. It is a suitable choice for projects which have protective countermeasure specifications.


The 15/30 bollard can withstand vehicle speeds of up to 30 mph from a 1.5 tonne saloon car, with crash tests resulting in the complete immobilization of the vehicle, eliminating any chance of a second attack. The tested core can be sleeved with a choice of styles and materials depending on your desired aesthetic.

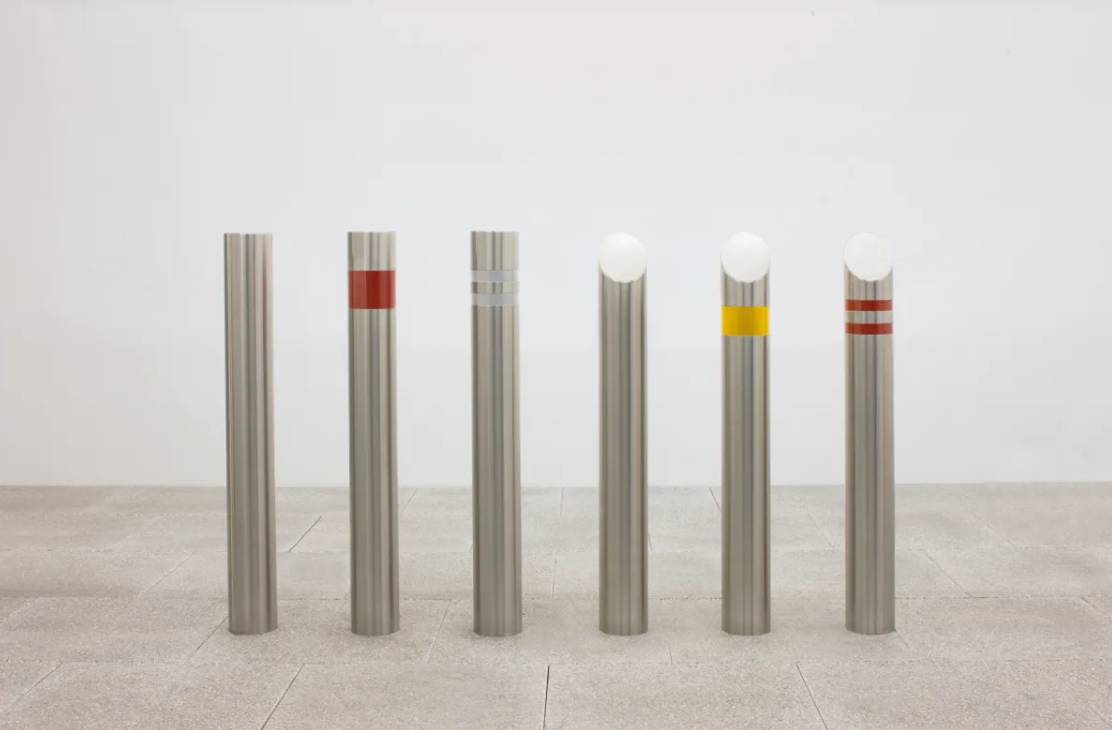

Choices include brushed stainless steel, steel with a polyester powder coat finish from a range of RAL colours, or Ferrocast with a painted finish. The bollard can also be specified with a choice of top cap and reflective banding.


This product is capable of withstanding a 1.5 tonne vehicle travelling at 30 mph. The security classification is V/1500/48/90:1.27/2.45


Features and benefits:

  • Crash tested in accordance with BSI PAS 68 standard
  • Able to withstand speeds of up to 30 mph
  • PAS68 Classification Code: Standard Bollard PAS68:2007:V/1500(M1)48/90:1.3/0.0
  • Numerous sleeve options available

General information

Color

Finish

Brushed

Galvanized

Powder-coated

Material

Steel

Stainless steel

Shape

Other

Width

114 mm

129 mm

168 mm

Height

1000 mm

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary
Pr_20_76_08_82 Stainless steel bollards

CAWS

Q50/190 Bollards

Q50/31 Bollards

Specification data - Carbon steel bollards

Standard

In accordance with PAS 68.

Guidance for specification option:

15/30.

Dimensions

-

Size and profile

∅114 mm.

Manufacturer guidance

Core diameter.

Height

1000 mm.

Length below ground

400 mm.

Post top

Flat.

Post base

Flat.

Finishes

-

Worked finish

Brushed.

Applied finish

Not applicable.

Colour

Brushed stainless steel.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Bollard Sleeve Topping

Grade 316 stainless steel.

Size

129 mm.

Manufacturer guidance

Sleeve diameter.

Weight

98 kg.

Guidance for specification option:

  • Core weight: 90 kg.
  • Sleeve weight: 8 kg.

Reflective tape

Not required.

Required.

Fixing method

Root fixed.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

HVM Landscape Protection (Hostile Vehicle Mitigation)

HVM Landscape Protection (Hostile Vehicle Mitigation)
