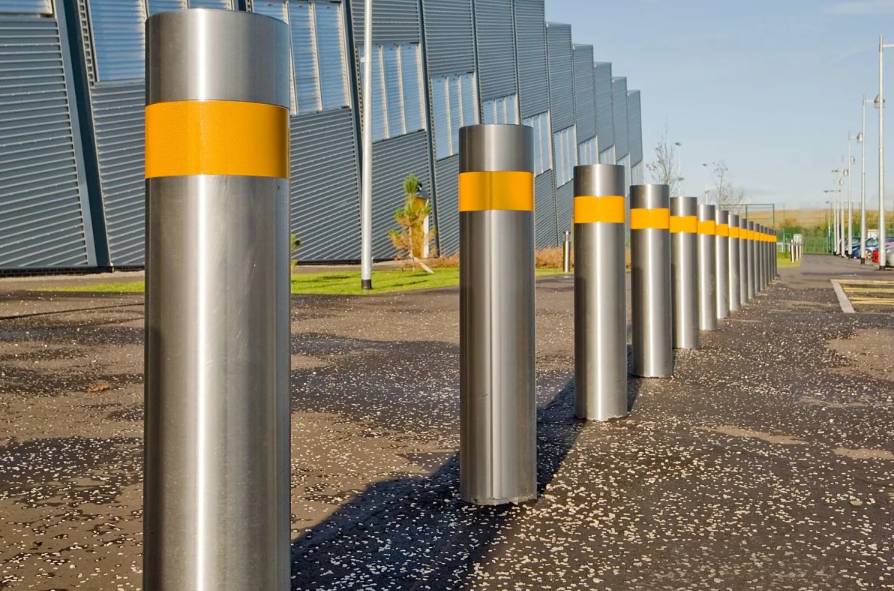

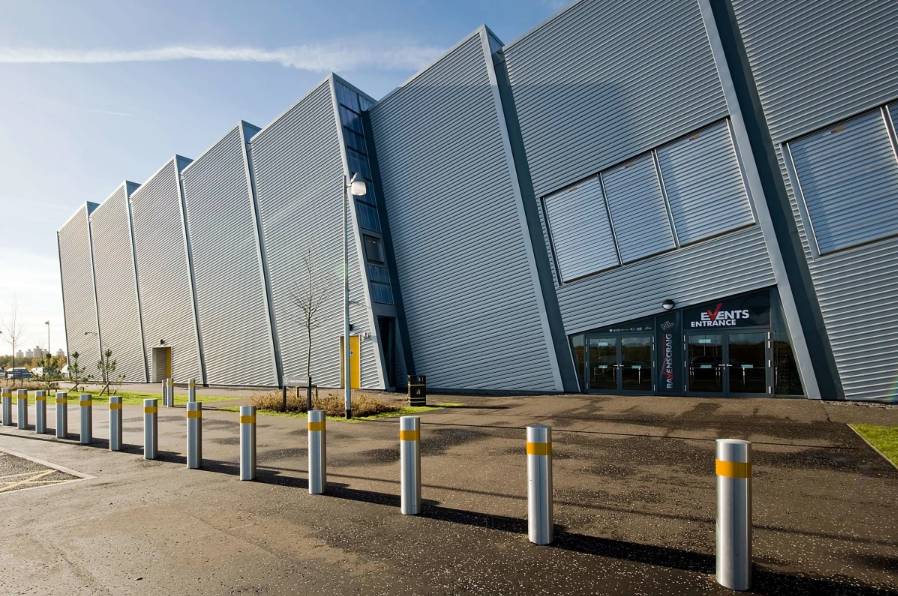

RhinoGuard® 25/40 SM Protective Bollard Stainless Steel
Bollard able to withstand 2.5 tonne vehicle driving 40 mph
High level of protection to suit a number of design schemes.
Able to withstand the force of a 2.5-tonne vehicle driving at 40 mph, the Rhinoguard® 25/40 protective bollard system is a suitable choice for protecting public spaces. The steel core is set into reinforced concrete foundations and 1000 mm into the ground - providing the ultimate resistance to vehicular attack.
The 25/40 model has been successfully crash-tested in accordance with the BSI PAS 68 standard, rendering test vehicles immobile on collision. The bollards are not only strong enough to withstand the force of a hostile vehicle but they are also an attractive and cost-effective solution, with a choice of sleeves available to cover the certified steel core. Sleeve options include brushed stainless steel, steel with a polyester powder coat finish or painted Ferrocast. A range of standard RAL colours are available.
25/40 Shallow mount product is capable of withstanding a 2.5 tonne vehicle travelling at 40 mph. The security classification is V/2500(M2)/64/90:2.3/0.0.
Features and benefits:
In accordance with PAS 68.
Size and profile
Length below ground
Brushed stainless steel.
Consult manufacturer and insert requirements or omit.
Bollard Sleeve Topping
Grade 316 stainless steel.
Height (above ground)
Cast in foundation.
Contains Red List materials
Country of product manufacture
