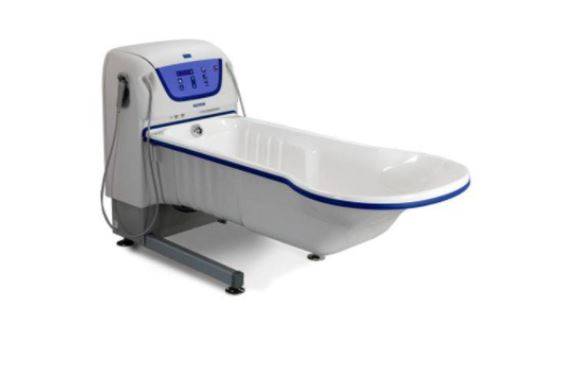

Rhapsody® - Height Adjustable Recumbent Bath

Verified by manufacturer 2 months ago

Arjo UK Ltd

A contemporary keyhole-shaped bath and customized solution for the entire bathing cycle.

Jump to:
+44 (0)3457 342000 Website

Application

  • Assisted bathing solutions to meet the needs of all mobility levels.
  • Designed to be easy to operate by a single caregiver.

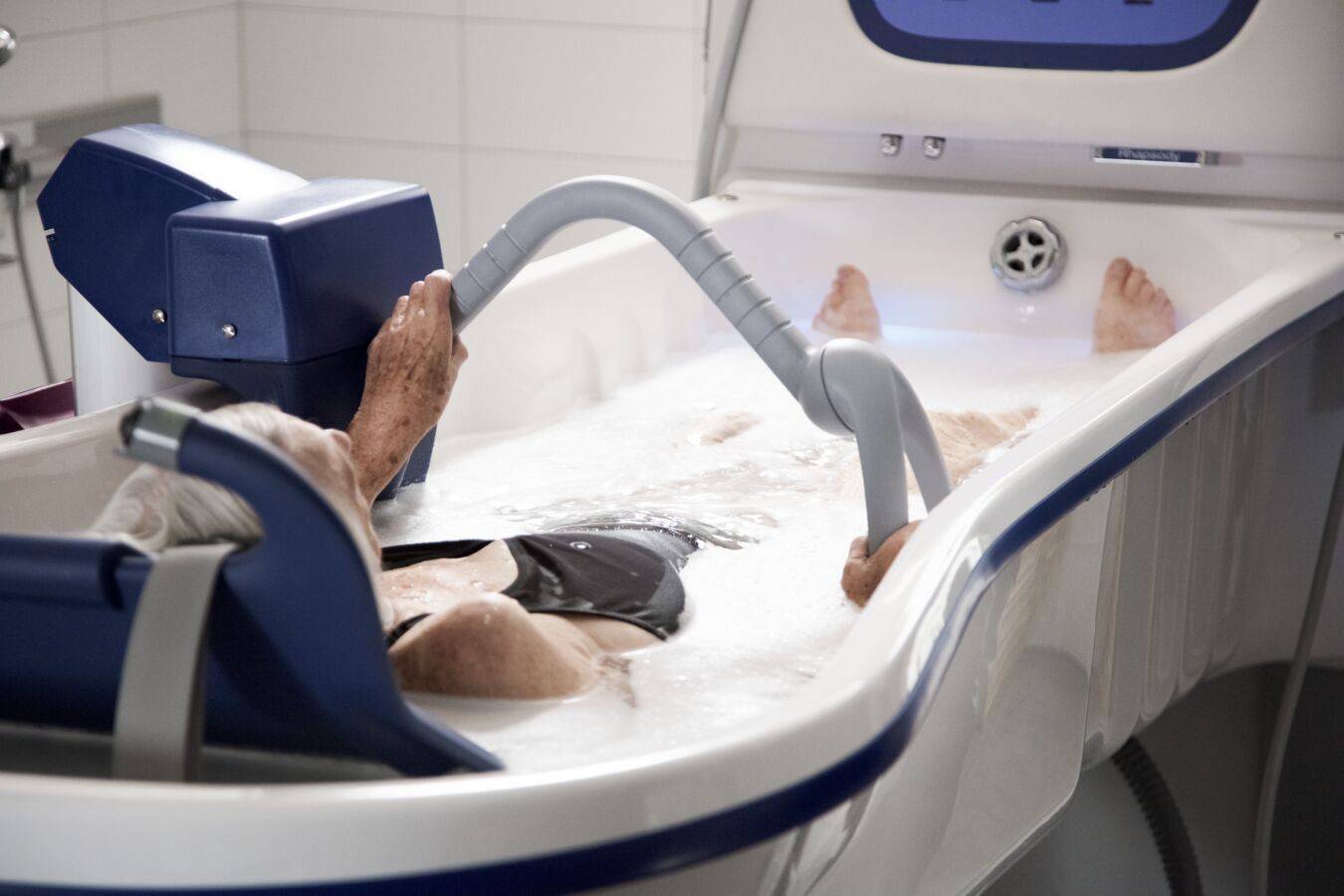

  • Can be integrated with Arjo bath lifters and ceiling lifters to safely and comfortably transport patients or residents from their bed or wheelchair to the bath and back again, minimising the risk of overload or strain for a caregiver.

Description

Rhapsody and Primo offer a range of bath shapes that are fully compatible with our range of bath lifters, giving you the flexibility to choose the right solution for your resident or patient. All baths are fully height-adjustable to facilitate patient access as well as a comfortable working position throughout the hygiene routine. All System 2000 baths offer optional Hydromassage, Hydrosound, and Sound and Vision multi-sensory features, designed to help enhance the therapeutic benefits of the bathing experience.


Features and Benefits:

  • Height-adjustable to facilitate patient access as well as enable you to find a comfortable working position throughout the hygiene routine.
  • Rhapsody features a unique keyhole shape designed to provide greater access to the resident’s upper body and offers additional shoulder space when reclining in the tub.
  • Compatible with full range of bath lifters.
  • Single or dual shower wand with lockable trigger and long, flexible hose.
  • Triple electronic scalding protection with thermostatic mixer maintains a consistent temperature throughout the bathing cycle and ensures automatic shutdown if the water temperature exceeds a safe level.
  • Control panel with digital display for easy water temperature control.
  • Optional integrated disinfectant dispensing system facilitates convenient cleaning and disinfection of the tub and transfer equipment.
  • Rapid filling capacity speedily fills the tub, while the auto-fill feature fills the tub and automatically stops once it reaches the pre-set water level.
  • Rapid integrated liquid dispensing system for soaps, oils and shampoos.
  • Integrated liquid dispensing system for soaps, oils and shampoos.

General information

Color

White

Finish

Acrylic

Material

Acrylic

Shape

Other

Length

1900 mm

Guidance for specification option:

Rhapsody® short bath.

2270 mm

Guidance for specification option:

Rhapsody® standard bath.

2520 mm

Guidance for specification option:

Rhapsody® long bath.

Width

970 mm

Manufacturer guidance

Max width at key hole end. Width of narrow section 760mm

Height

835 mm

Manufacturer guidance

Min height. Height Adjustable: max height 1330mm

Warranty description

One year

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Baths

Form

Free-standing.

Materials

Acrylic.

Colour

White.

Size

1900 x 970 mm.

Guidance for specification option:

Rhapsody® short bath.

2270 x 970 mm.

Guidance for specification option:

Rhapsody® standard bath.

2520 x 970 mm.

Guidance for specification option:

Rhapsody® long bath.

Water supply, overflow and waste holes

-

Overflow

Overflow hole.

Waste

Bottom waste outlet.

Support frame

Integral cradle.

Integral accessories

None.

Foot support.

Pillow.

Treatment hose.

Snap-on toiletry tray.

Integrated disinfection unit.

Integrated liquid dispensing system for oils and shampoos.

Execution

Installing bath assemblies.

Product Reference

Rhapsody® short bath

Rhapsody® standard bath

Rhapsody® long bath

WaterConsumption

195 L.

Guidance for specification option:

Rhapsody® short bath.

235 L.

Guidance for specification option:

Rhapsody® standard bath.

280 L.

Guidance for specification option:

Rhapsody® long bath.

Ingress protection

IPX4.

Guidance for specification option:

IP Class according to IEC 60529 (bath & control panel).

IP Class hand control and Sound and Vision hand control IPX7.

Water pressure

6 bar.

Guidance for specification option:

Maximum static water pressure (600 kPa, 87 psi).

Minimum operating pressure - 2 bar (100 kPa, 14.5 psi) 1 bar (UK).

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

parts are recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

Platform Compatible Version
Revit

Revit 2015

1

Literature

Arjo Bathing Solutions for the Central Bathing Area - System 2000

Arjo Bathing Solutions for the Central Bathing Area - System 2000
