RFW Wall-Mounted Folding Privacy Screen - Adjustable Privacy Screen/ Room Divider

Verified by manufacturer 3 months ago

CareSpaces by Wealden Rehab

Shapely and elegant folding screens for protecting the privacy of patients.

Jump to:
+44 (0)1634 949988 Website

Application

Privacy screens/ room dividers within hygiene suites.

Description

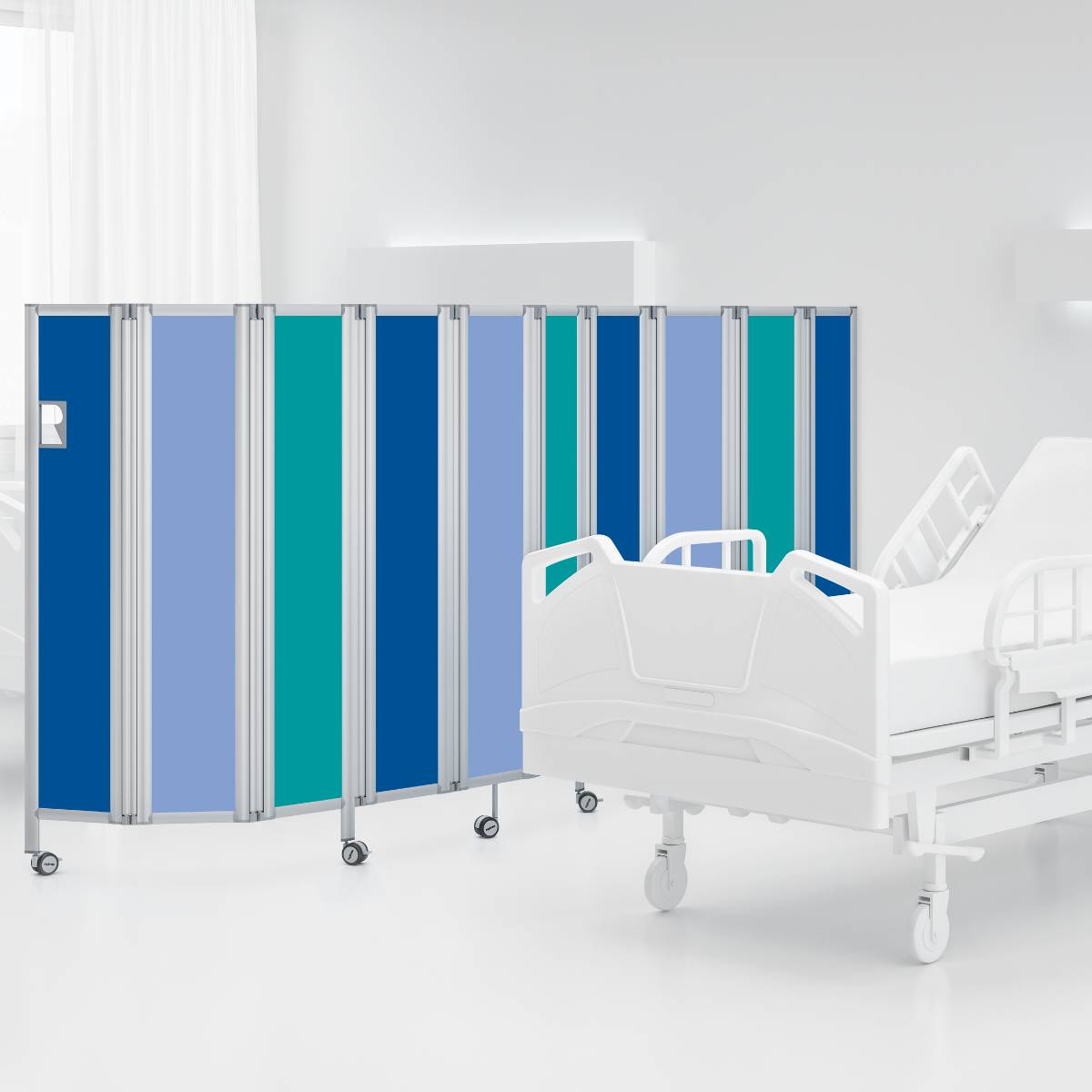

Shapely and elegant folding screens for protecting the privacy of patients.


Features and benefits:

  • Available in heights of 1650 and 1850 mm.
  • Ten colours and five design options.
  • Shapely and elegant, the folding screen protects the privacy of patients.
  • Flexible in use, this screen can function as a privacy screen or room divider.
  • Space saving: the robust and shock-resistant folding wall is brought into position quickly and folded up again to save space after use.
  • Extremely adaptable:
  • Adjustable length after installation (panels can be added or removed).
  • Wall or column mounting and can also be used as a mobile solution.
  • Moreover, the modular system allows for adjustment in length even after initial installation.
  • Panels are constructed with a strong aluminium frame with a plexiglass panel infill.
  • Panels are fixed to the wall and fold in a concertina pattern. The panels are supported and roll on casters which have locks on to hold the screen in place once positioned.
  • The plexiglass panels are opaque so allow light through whilst providing thorough privacy.
  • Turn&Connect hinges between panels are designed to provide 360° privacy.

General information

Color

Orange

Yellow

Blue

Red

Brown

Show more

Finish

Anodized

Guidance for specification option:

Frame and hinged profiles only.

Material

Aluminium

Polyamide

Polycarbonate

Shape

Rectangle

Length

900 mm

1200 mm

1500 mm

1800 mm

2100 mm

Show more

Width

300 mm

Height

1650 mm

1850 mm

Warranty description

One year

Material

Aluminium

Polyamide

Polycarbonate

Uniclass

Pr_40_30_20_64 Privacy curtainsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Specification data - Privacy curtains

Materials

-

Supports

-

Support type

Extruded aluminium (Al Mg Si 05) frame and hinged profiles.

Guidance for specification option:

Plastic parts are PA 6 GF 15, polyamide with 15% glass fibres.

Finish and colour

Anodized.

Curtains

-

Material

Polycarbonate panels.

Guidance for specification option:

2 mm thick, translucent.

Flame resistant, construction material class B1, DIN 4102-1, extremely impact-resistant.

Colour and pattern

Yellow orange.

Golden yellow.

Light blue.

Blue-grey.

Carnation red.

Cherry red.

Copper-brown.

White.

Turquoise.

Lime green.

Manufacturer guidance

Colours can be combined as required. Insert details e.g. drawing reference.

Panels are translucent.

Width

900 mm.

Guidance for specification option:

Three panels.

1200 mm.

Guidance for specification option:

Four panels.

1500 mm.

Guidance for specification option:

Five panels.

1800 mm.

Guidance for specification option:

Six panels.

2100 mm.

Guidance for specification option:

Seven panels.

2400 mm.

Guidance for specification option:

Eight panels.

2700 mm.

Guidance for specification option:

Nine panels.

3000 mm.

Guidance for specification option:

Ten panels.

Manufacturer guidance

Fully extended width.

Each leaf is 300 mm wide.

Consult manufacturer for folded dimensions.

Drop

Manufacturer's standard (overall height: 1650 mm).

Guidance for specification option:

Standard.

Manufacturer's standard (overall height: 1850 mm).

Integral accessories

Castors.

Guidance for specification option:

Consult manufacturer for details of quantity, placement etc. (will vary based on required width/ panel numbers).

Sustainability data

Contains Red List materials

No

Material

Aluminium

Polyamide

Polycarbonate
