RF1™ Glazing System
Verified by manufacturer 7 months ago

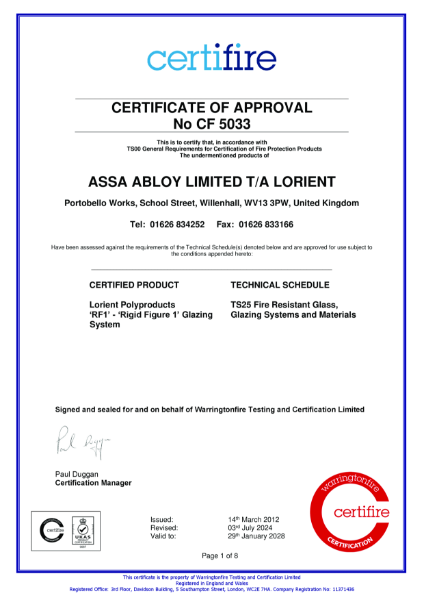

Certifire Certificate
Certificate type
Versatile bead-applied glazing system for 60 minute fire resistant doors and screens.
Application
FD60 fire doors and screens
Description
A versatile, 60 minute glazing system which is a well designed, bead-applied glazing solution which delivers on style.
Features and benefits:
- Its unique design allows tolerances (flexibility) between door, bead and glass thicknesses to be accommodated.
- For use with pins which are discreet and quick to apply or alternatively fit with screws.
- Good aesthetics – caps are available in a variety of finishes to harmonise with the door.
- Maiximum glass size is 1770 x 500 mm.
Product features:
Fixings:
For use with pins which are discreet and quick to apply or alternatively fit with screws.
Caps:
Premium aesthetics – caps are available in a variety of finishes to harmonize with the door.
General information
Color | Black |
Finish | Manufacturer guidanceSodium sillicate intumescent encapsulated in rigid PVC with flexible fins. |
Material | PVC Intumescent |
Shape | Other |
Length | 2100 mm |
Width | 6.5 mm |
Height | 24 mm |
Uniclass | |
CAWS | L10/56 Glazed screen system L10/560 Glazed screen system |
Specification data - Fire-resistant glazing systems
System performance | Fire performance. |
Retaining arrangements | |
Compounds, tapes, gaskets | Sodium silicate intumescent liner. |
Beads | Intumescent glazing seals. |
Bead fasteners | Hardwood retaining beads. |
Fixings | Pins. Screws. |
Cap finish | Guidance for specification option: Insert requirement, consult manufacturer for options. |
Length | 2.1 m. |
Fire performance | 60 minutes. Guidance for specification option: Provided for 60 minute applications for doors and screens. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
Certifire Certificate
Certifire CF5033
Literature
Fire Resistant Glazing Systems
