RevoSec RVS
Description

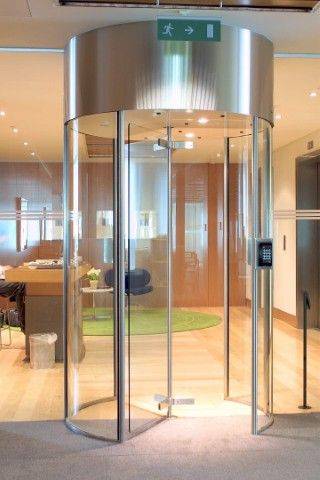

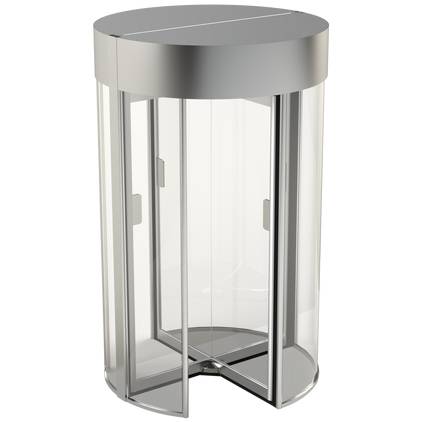

Hand operated turnstile for internal installation. Downlights are fitted as standard. Passage in both directions, electronically controllable.

General information

Finish

As standard

Painted, RAL

Insert requirement.

Uniclass 2015

Pr_30_59_34_78 Stainless steel full-height turnstilesPrimary

CAWS

L20/500 Manual revolving doors

Specification data - Stainless steel full-height turnstiles

Product Reference

RVS 90

RVS 90FP

RVS 120

RVS 120FP

OutsideDiameter

1500 mm

1600 mm

Power failure

Fail lock

Fail lock left, fail safe right

Fail safe

Fail safe left, fail lock right

Glazing

As standard

11.4 mm 3 ply anti bandit

Solid infill panel

Finish

As standard

Painted, RAL

Insert requirement.

Accessories

Not required

Backup battery

Card reader mounting

Electro-mechanical counter

Floor mat

LCD counter

Push button control

Status lights

Standard product features

Materials:

  • Casework: 304 grade grained stainless steel (BS EN 10088-2 grade 1G/2G) 8.2 mm thick clear laminated glass infill panels.
  • Ceiling: Painted white (RAL 9010) MDF as standard.
  • Rotor wings: 10 mm thick clear toughened frameless safety glass.
  • Rotor spindle: Tubular 304 grade grained stainless steel (BS EN 10088-2 grade 1G/2G) with patch fittings.

Dimensions:

  • Ceiling height 2100 mm.
  • Cornice depth 320 mm.
  • Overall height: 2420 mm.

Power failure:

In the event of an emergency or isolation of power supply, unit may be configured to fail-safe i.e. rotor freely rotates or fail-lock i.e. rotor locks. Either option is available in both or one direction.

Power supply:

  • 230 Volts AC 50/60 Hz.

Product Options

Product reference:

  • RVS 90: 10 mm thick toughened frameless safety glass (IR detection).
  • RVS 90FP: Framed glass rotor c/w brush strips. (IR detection).
  • RVS 120: 10 mm thick toughened frameless safety glass (IR detection).
  • RVS 120FP: Framed glass rotor c/w brush strips. (IR detection).

Outside diameter:

1500 or 1600 mm.

Colour:

A range of epoxy powder coating RAL colours are available.

Glazing:

A choice of two optional glazing types are available:

  • 11.4 mm 3 ply anti bandit laminate glass / polycarbonate / glass.
  • Solid infill panels to replace glazed panels in the drum.

Accessories:

- Status lights:

LED red cross and green arrow displays.

- Backup battery:

Maintains all 24 volts control facilities for 500 operations or four hours whichever the sooner.

- Push button control:

  • Simple console to control RevoSec rotor release.
  • Casework mounted push button.

- Floor mat:

Dimpled rubber mat with a straight threshold strip between the upright members on both sides.
